ZW Type Compressed Natural Gas Filling Stations Stable Running High Perfomance
ZW Type Compressed Natural Gas Filling Stations Stable Running High Perfomance
Specifications
Brand Name :
JINGXIN
Model Number :
JXJQ-Z113
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Lubrication style :
Oil free
Configuration :
customer made
Power source :
AC power
After-sales service provided :
Engineers available to service machinery overseas
Dimension(l*w*h) :
Vary
Warranty :
1 year
Voltage :
380 V
Working pressure :
25 MPa
Inlet pressure :
1-20 MPa
Description

ZW type compressor CNG filling station for CNG daughter station

Application:

The CNG filling staion is for daughter station for its wide intake pressure.

Features:

The CNG gas filling station perfomances well for the below advantages.

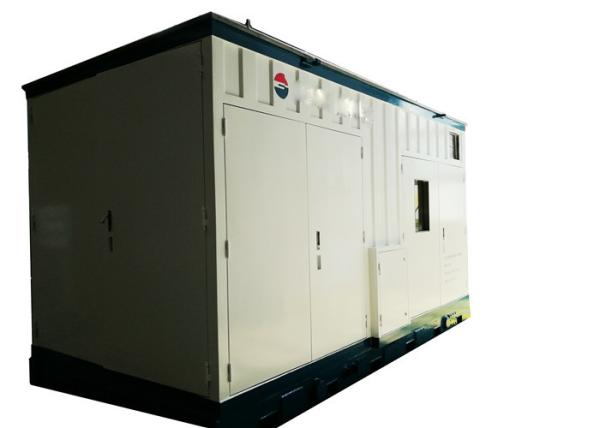

1. The compressor unit is overall skid mounted which includes all the needed equipment and system (compressor, motor, cooling system, priority system and enclosure).

2. The unit is able to run unattendedly and automatically 24 hours.

3. It is the only compressor for daughter station which adopts the national patent technology. and can save engergy.

4. Wide intake pressure can meet different condition. When the intake pressure is from 2.0 - 20 MPa, not adjustment needs.

5. The compressor adopt the advanced and mature compressor control process. And the priority system is skid mounted.

6. It can cahrge from the trailer tank directly.

7. It can keep pressure stability of high pressure.

ZW Type Compressed Natural Gas Filling Stations Stable Running High Perfomance

Technical parameters:

Model Inlet pressure (Mpa) Outlet pressure (Mpa) Power (KW) Capacity (Nm3/h)
ZW-0.25/20-250JX 2.0-20 25 55 1000
ZW-0.25/20-250JX 2.0-20 25 75 1200
ZW-0.25/20-250JX 2.0-20 25 90 1500
ZW-0.25/20-250JX 2.0-20 25 55 1000
ZW-3.8/1.4-250-JX 2.0-20 25 75 1200
ZW-3.56/1.5-250-JX 2.0-20 25 90 1500
