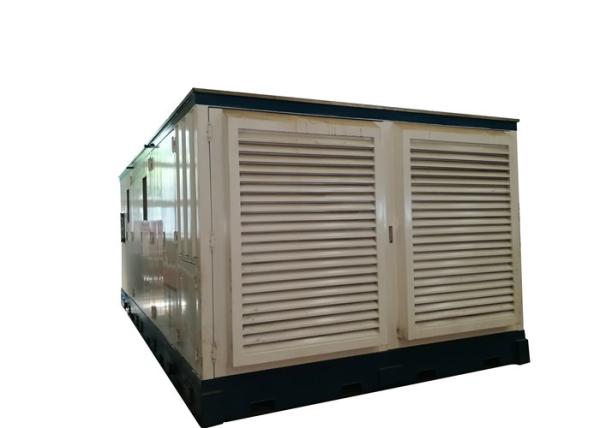

D Type Compressed Natural Gas Stations For CNG Mother And Daughter Station
D Type Compressed Natural Gas Stations For CNG Mother And Daughter Station
Specifications
Brand Name :
JINGXIN
Model Number :
JXJQ-Z201
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Lubrication style :
Oil free
Configuration :
customer made
Power source :
AC power
After-sales service provided :
Engineers available to service machinery overseas
Dimension(l*w*h) :
Vary
Warranty :
1 year
Voltage :
380 V
Working pressure :
25 MPa
Inlet pressure :
1-20 MPa
Description

D type compressor natural gas station for CNG mother and daughter station

Application:

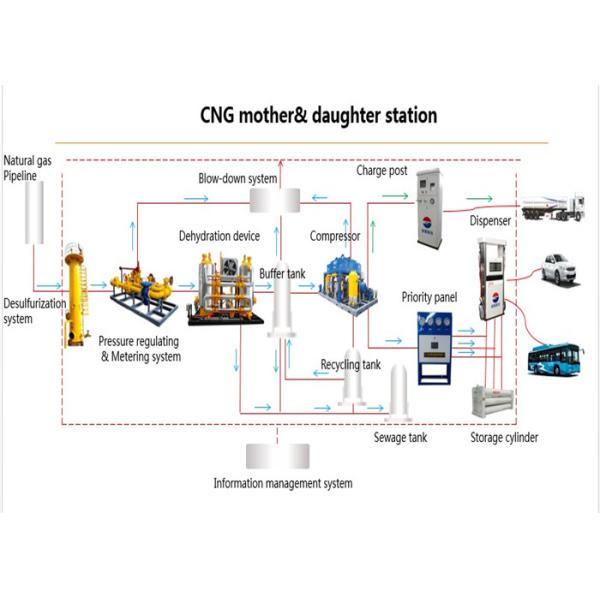

The natural gas staion can be use for both mother and daughter station.

D Type Compressed Natural Gas Stations For CNG Mother And Daughter Station

Features:

1. The natural gas station can both fill the CNG to the trailer and cars.

2. The unit don't need increase one more compressor. It's money saving solution.

3. The compressor's sepccial design make the vibration low and work smoothly.

4. Cylinder is horizontal symmetry structure with oil free lubricating structure design for cylinders and packing.

5. Compressor unit is skid mounted and motor is directly driven by elastic coupling. It's convinient for transportaion and installation.

6. Water cooling compressor takes seprarable pipe cooler. The cooler is small and work well. The pipe ccorre is separable and easy to clean the dust.

Technical parameters:

S/N Model Inlet pressure (Mpa) Power (KW) Capacity (Nm3/h) Cooling style
1 D-5.0/0.8-250 0.8 132 550 water or air cooling
2 D-3.22/1-250 1 90 370 water or air cooling
3 D-3/3-250 3 132 680 water or air cooling
4 D-2.5/4-250 4 132 715 water or air cooling
5 D-1.32/6-250 6 90 530 water or air cooling
6 D-1.2/10-250 10 110 750 water or air cooling
7 D-0.75/12-250 12 75 540 water or air cooling
8 D-0.44/100-250 10 90 2100 water or air cooling
9 DY-0.2/30-250 30 37 (variable frequency) 600 (average) air cooling
