Low Noise CNG Filling Station Equipment Oil Free For Compressed Natural Gas
Low Noise CNG Filling Station Equipment Oil Free For Compressed Natural Gas
Low Noise CNG Filling Station Equipment Oil Free For Compressed Natural Gas
Low Noise CNG Filling Station Equipment Oil Free For Compressed Natural Gas
Low Noise CNG Filling Station Equipment Oil Free For Compressed Natural Gas
Low Noise CNG Filling Station Equipment Oil Free For Compressed Natural Gas
Low Noise CNG Filling Station Equipment Oil Free For Compressed Natural Gas
Low Noise CNG Filling Station Equipment Oil Free For Compressed Natural Gas
Specifications
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Delivery Time :
60 days
Packaging Details :
Wooden box
Brand Name :
JINGXIN
Model Number :
JXJQ-Q015
Certification :
ISO
Price :
negotiable
Supply Ability :
20 per month
Lubrication style :
Oil free
Configuration :
customer made
Power source :
AC power
After-sales service provided :
Engineers available to service machinery overseas
Dimension(l*w*h) :
Vary
Warranty :
1 year
Voltage :
380 V
Working pressure :
25 MPa
Inlet pressure :
1-20 MPa
Description

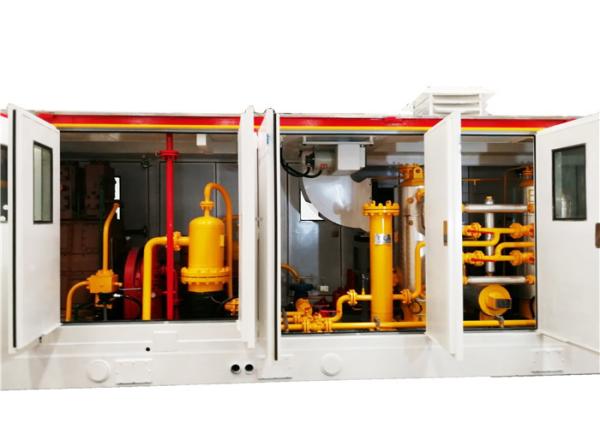

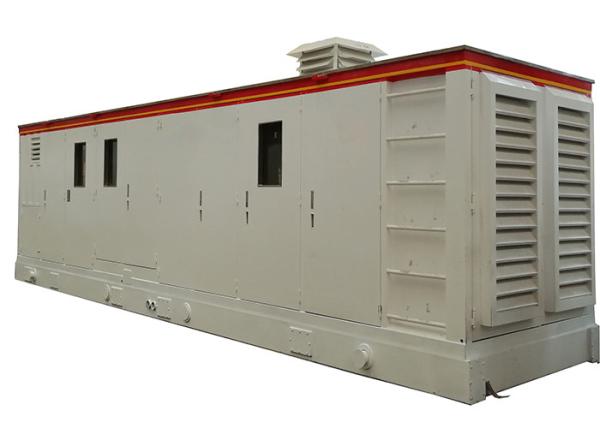

Skid mounted low noise CNG filling station for compressed natural gas

Features:

1.For the overall skid-mounted type, installation and maintenance is convenient.
2. The compressor runs smoothly with small vibration.
3. Low rotation speed, long service life of wearing parts and low operating noise.
4. The oil is supplied by the pressure lubrication system to ensure the reliable operation of the compressor.
5. the unit adopts advanced PLC control system, high degree of automation.
6.the use of international famous brand air valve, long service life, low noise.

Low Noise CNG Filling Station Equipment Oil Free For Compressed Natural Gas

Technical parameters:

1 Suction Pressure (MPa) 2.5~20
2 Discharge Pressure (MPa) 22~25
3 Suction Temperature (°C) —40~40
4 Discharge Temperature(°C) ≤50 (or no more than 15°C of ambient temperature)
5 Average Discharge Capacity (Nm3/h) 1000
6 Daily Output Capacity (Single Unit) (Nm3) 8000~12000
7 Noise Level db (A) ≤75
8 Cooling Mode Air-cooling
9 Motor Power (kW) 22+22
10 Total Power (kW) ≤50 (Inculding main motor, coolling motor,etc.)
11 Effective capacity of tank (L) 600
