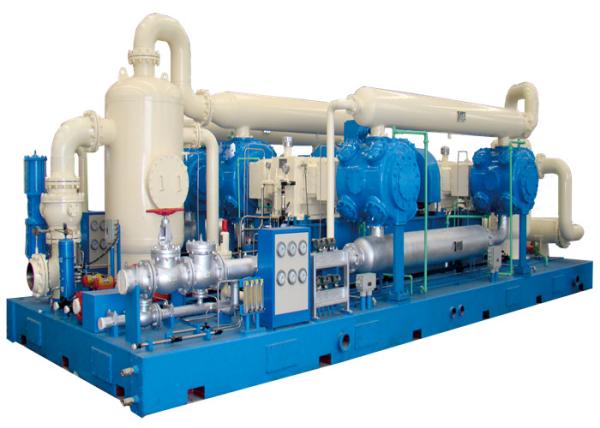

Single Cylinder CNG Gas Compressor 250 KW 10-20 MPa Low Inlet Pressure
Single Cylinder CNG Gas Compressor 250 KW 10-20 MPa Low Inlet Pressure
Specifications
Brand Name :
JINGXIN
Model Number :
M-2.4/12-250-JX
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Type :
Piston
Voltage :
380 V
Dimension(l*w*h) :
Vary
Warranty :
1 year
Power source :
AC power
After-sales service provided :
Engineers available to service machinery overseas
Working pressure :
1-20 MPa
Power :
250 KW
Description

10-20 MPa Low inlet pressure CNG gas compressor used in CNG filling station

Application:

The CNG gas compressor is used in CNG filling station, which need high capacity.

Features:

The CNG gas compressor has four-row horizontal symmetrical balanced compressor, four-row cranks are 90 degrees each other, inertia moment is completely balanced, unit operation is extremely balanced, vibration is minimal.

The CNG air compressor has only one cylinder in a row. It is very convenient to maintain piston rings, packing seals and fragile parts without dismantling the cylinder.

Single Cylinder CNG Gas Compressor 250 KW 10-20 MPa Low Inlet Pressure

Technical parameters:

41 M-3.45/10-250-JX 10 315 2130 water cooling
42 M-2.4/12-250-JX 12 250 1780 water cooling
43 M-3/12-250-JX 12 315 2240 water cooling
44 M-3.35/12-250A-JX 12 355 2530 water cooling
45 M-2.3/13-250-JX 13 250 1830 air cooling
46 M2.75/13-250-JX 13 315 2310 water cooling
47 M-2.27/14-250-JX 14 250 1875 Mixed cooling
48 M2.68/14-250-JX 14 280 2080 air cooling
49 M-1.86/15-250-JX 15 220 1680 Mixed cooling
50 M-2.7/15-250C-JX 15 280 2150 Mixed cooling
51 M-1.32/16-250-JX 16 160 1250 water cooling
52 M2.05/16-250-JX 16 250 1965 water cooling
53 M-2.6/16-250D-JX 16 315 2470 Mixed cooling
54 M-2.75/17-250-JX 17 315 2520 water cooling
55 M-2.48/18-250D-JX 18 315 2580 Mixed cooling
56 M-1.75/20-250-JX 20 250 2110 water cooling
57 M-2.1/20-250-JX 20 280 2375 water cooling
58 M-2.21/22-250-JX 22 315 2880 water cooling
59 M-2/28-250-JX 28 315 3210 water cooling
60 M-1.15/30-250-JX 30 220 2215 water cooling
61 M-1.58/30-250-JX 30 280 2815 water cooling
62 M-1.75/30-250A-JX 30 315 3160 Mixed cooling
63 M-1.5/35-250-JX 35 280 3040 Mixed cooling
64 M-1.4/40-250-JX 40 280 3200 Mixed cooling
65 M-1.5/40-250-JX 40 315 3580 water cooling
66 M-1.12/45-250-JX 45 250 3060 water cooling
67 M-1.65/45-250-JX 45 355 4340 water cooling
