ISO Approved Natural Gas Equipment Natural Gas Processing Plant Equipment
ISO Approved Natural Gas Equipment Natural Gas Processing Plant Equipment
Specifications
Brand Name :
SCRT
Model Number :
HZ-TY110
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
4 sets per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Medium :
Natural gas
Product name :
injection-production distribution metering device
Application :
natural gas distritution and metering
Configuration :
stationary
Warranty :
18 months
After-sales services :
Engineers available to service machinery overseas
Dimension :
customized
Color :
customized
Description

Injection-production distribution metering device for natural gas

Description:

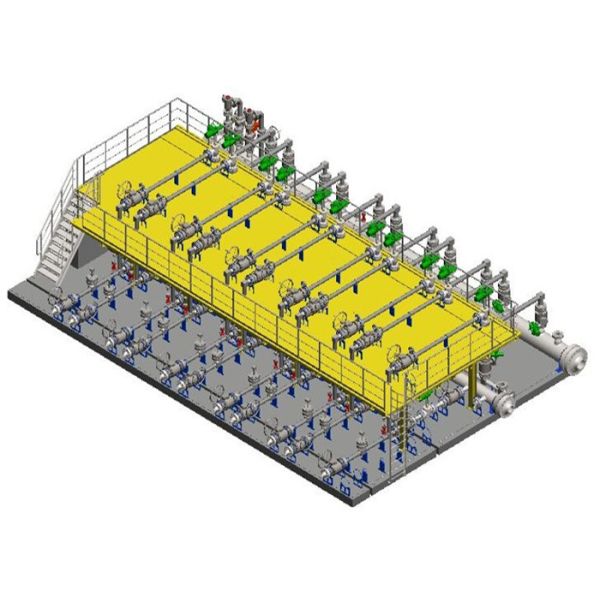

The injection-production distribution metering device consists of two parts, including the gas distribution sled and the control system.

The gas distribution sled is equipped with manifold inlet electric ball valve, single well branch electric regulating valve, electric throttle valve, pressure transmitter, temperature transmitter, bidirectional flowmeter, etc. It can accurately distribute and measure the gas volume of injection and production wells, and realize the logic protection functions of automatic shutdown production under abnormal conditions such as pressure fluctuation, gas leakage and fire.

ISO Approved Natural Gas Equipment Natural Gas Processing Plant Equipment

Technical parameters:

1 Medium Sulfur-bearing wellhead natural gas
2 Rated flow 1068 *104Nm3/d
3 Inlet pressure 14-32 MPa
4 Import temperature 47-62 ℃
5 Shape size 17 x 10.3 x 4.5 (m)
6 Container Material Q35R + 316L
