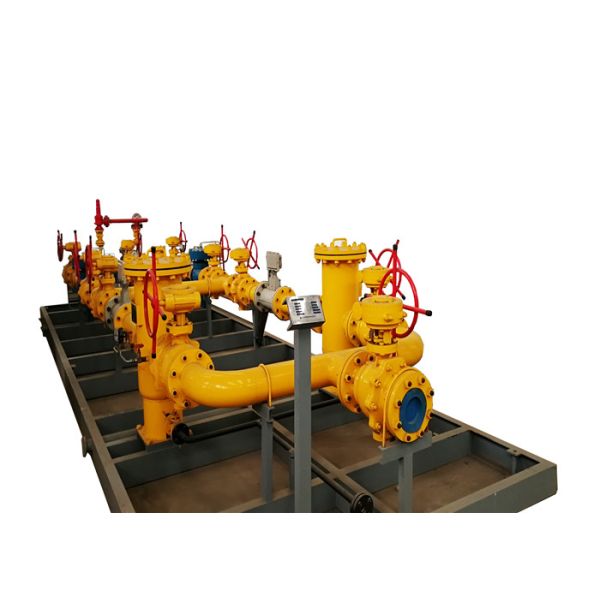

Gas Pressure Regulating And Metering Station For Natural Gas Transmission
Gas Pressure Regulating And Metering Station For Natural Gas Transmission
Specifications
Brand Name :
SCRT
Model Number :
HZ-TY322
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden box
Medium :
Natural gas
Product name :
gas pressure regulating and metering station
Application :
natural gas pressure reducing and metering
Configuration :
stationary
Warranty :
18 months
After-sales services :
Engineers available to service machinery overseas
Color :
Yellow or customized
Description

Gas pressure regulating station for natural gas pressure control

Description:

The aim of a pressure reducing skid is to regulate the NG outlet pressure to a setting value. One typical solution consists mainly of two reducing streams with two regulators each: one is the main regulator and the other is used as a monitor/slam shut valve. Active and monitor pressure regulator shall be “Top entry type” in order to guarantee a simply maintenance of the equipment. The active regulator normally assures pressure reduction to the setting value.

Features:

The gas pressure regulating station can have the below device for option.

1. Optional filter, pressure regulation, metering and process structure.

2. Optional cabinet structure (cabinet structure is detachable) or skid mounted structure for integration. Convenient debugging, installation and maintenance.

3. Relevant pressure, flow, temperature, differential pressure and other signals can be collected and uploaded.

4, can choose PLC central control system or industrial computer to achieve semi-automatic or full automation.

5. The pipeline can be insulated according to user requirements.

6. Odorizing device can be added according to user's requirement.

Technical parameters:

1 Temperature range -20℃±60°C
2 Inlet pressure ≤ 25 Mpa
3 Outle pressure 0.02-7.5 Mpa
4 Flow range 100-1500000 Nm3/h

Gas Pressure Regulating And Metering Station For Natural Gas Transmission
