High Efficiency Stainless Steel Lng Filling Stations , Customerized Capacity
High Efficiency Stainless Steel Lng Filling Stations , Customerized Capacity
Specifications
Brand Name :
JINGXIN
Model Number :
JKJY-S340
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Delivery Time :
90 days
Packaging Details :
Seaworthy packing
Warranty :
1 Year
Weight :
Vary
Capacity :
Customerized
Dimension(l*w*h) :
Customerized
After-sales service provided :
Engineers available to service machinery overseas
Condition :
New
Medium :
LNG
Material :
Stainless Steel
Color :
Customers' Demands
Description

High quality high efficiency LNG fuel station for LNG filling

Description:

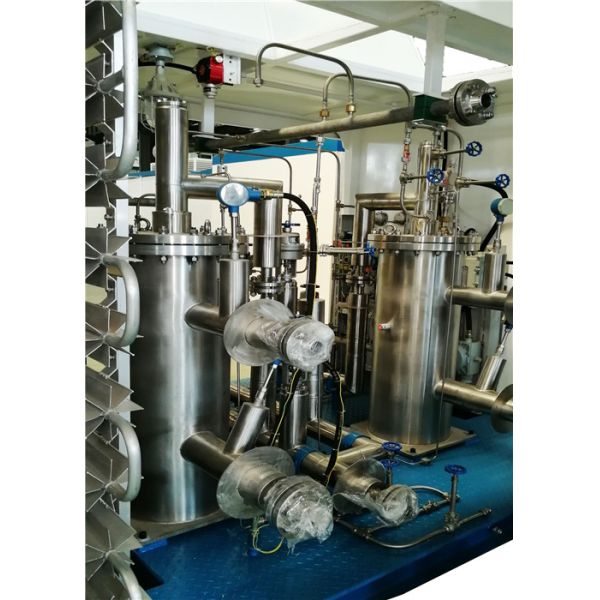

LNG filling sled is the core equipment of LNG filling station. It integrates unloading/pressurized gasifier, EAG heater, submersible pump, pump pool, remote control valve, pressure sensor and temperature sensor to realize automatic control.

All the pipes and valves in the skid process are vacuum-cooled, which not only reduces the generation of BOG gas, but also reduces the operation failure of LNG submersible pump.

The overall structure of the sled body is compact and reasonable, occupies a small area, and is convenient to hoist, install and maintain.

Technical parameters:

1 Container capacity 60 m3
2 Max. working pressure 1.2 Mpa
3 Input power 380V 50HZ 20KW
4 Pump flow rate 340L/min
5 Filling volume per day 30000 m3
6 Measurement (LXWXH) 20x3.6x3.9 m
