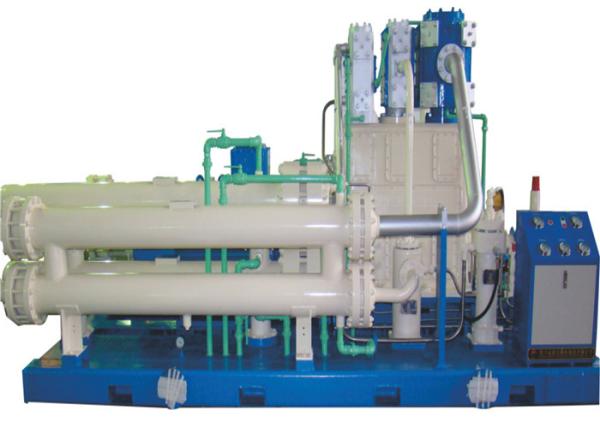

Stable Oil Free Water Cooled CNG Gas Compressor For CNG Station , ISO Passed
Stable Oil Free Water Cooled CNG Gas Compressor For CNG Station , ISO Passed
Specifications
Brand Name :
JINGXIN
Model Number :
ZW-3.6/1-250A-JX
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
90 days
Packaging Details :
Wooden box
Type :
Piston
Voltage :
380 V
After-sales service provided :
Engineers available to service machinery overseas
Power :
90 KW
Configuration :
stationary
Lubrication style :
Oil free
Capacity :
1-620Nm3/h
Dimension(l*w*h) :
Vary
Description

Stable quality oil free water Cooled natural gas Compressor for CNG Station

Application:

The natural gas compressors meets operating needs in a low flow range. Its compact design, with reduced dimensions, allows for easy and economic transportation, handling, installation and maintenance. The LF50 equipment is the ideal solution to supply captive fleets.

Features:

1.Suction range 1.0 to 1.5 MPa;

2.Max flow rate: 620 Nm3 / h;

3. Electric motor;

Technical parameters:

S/N Model Inlet pressure (Mpa) Power (KW) Capacity(Nm3/h) cooled style
1 ZW-3.6/1-250A-JX 1 110 420 water cooled
2 ZW-4.4/1-250-JX 1 110 470 water cooled
3 ZW-5/1-250D-JX 1 132 533 water cooled
4 ZW-4.8/1.25-250-JX 1.25 132 580 water cooled
5 ZW-3.8/1.4-250-JX 1.4 110 490 water cooled
6 ZW-3.56/1.5-250-JX 1.5 110 490 water cooled
7 ZW-4.35/1.5-250D-JX 1.5 132 595 water cooled
8 ZW-5/1.5-250B-JX 1.5 160 720 water cooled
9 ZW-3.8/2-250-JX 2 132 620 water cooled
10 ZW-4.5/2-250D-JX 2 160 750 water cooled
11 ZW-4.95/2-250C-JX 2 185 870 water cooled
12 ZW-3.3/2.4-250-JX 2.4 132 640 water cooled
13 ZW-3.3/2.5-250B-JX 2.5 132 645 water cooled
14 ZW-3.7/2.5-250D-JX 2.5 160 780 water cooled
15 ZW-4.35/2.5-250B-JX 2.5 185 900 water cooled
16 ZW-2.5/3-250K-JX 3 110 550 water cooled
17 ZW-3/3-250-JX 3 132 660 water cooled
18 ZW-3.65/3-250B-JX 3 160 800 water cooled
19 ZW-4.25/3-250C-JX 3 185 930 water cooled
20 ZW-4.4/3-250A-JX 3 200 1005 water cooled
21 ZW-2.7/3.5-250A-JX 3.5 132 680 water cooled
22 ZW-3.2/3.5-250-JX 3.5 160 830 water cooled
23 ZW-2.1/4-250A-JX 4 110 580 water cooled
24 ZW-2.5/4-250F-JX 4 132 705 water cooled
25 ZW-3/4-250C-JX 4 160 850 water cooled
26 ZW-3.65/4-250E-JX 4 185 985 water cooled
27 ZW-1.45/5-250-JX 5 90 500 water cooled
28 ZW-1.9/5-250B-JX 5 110 615 water cooled
29 ZW-2.2/5-250E-JX 5 132 740 water cooled
30 ZW-2.76/5-250-JX 5 160 895 water cooled
31 ZW-3.3/5-250-JX 5 200 1120 water cooled
32 ZW-1.64/6-250-JX 6 110 640 water cooled
33 ZW-1.9/6-250B-JX 6 132 770 water cooled
34 ZW-2.5/6-250-JX 6 185 1080 mixed cooled
35 ZW-3.0/6-250C-JX 6 200 1170 water cooled
36 ZW-2.2/7-250-JX 7 160 980 water cooled
37 ZW-1.36/8-250-JX 8 110 690 water cooled
38 ZW-1.7/8-250-JX 8 132 830 water cooled
39 ZW-2.0/8-250D-JX 8 160 1010 water cooled
40 ZW-1.2/10-250-JX 10 110 740 water cooled
41 ZW-1.4/10-250A-JX 10 132 890 water cooled
42 ZW-1.91/10-250-JX 10 185 1250 mixed cooled
43 ZW-1.35/12-250-JX 12 132 930 water cooled
44 ZW-1.55/12-250-JX 12 160 1130 water cooled
45 ZW-1.45/14-250-JX 14 160 1190 water cooled
46 ZW-0.98/15-250B-JX 15 110 830 water cooled
47 ZW-1.0/16-250-JX 16 132 1010 water cooled
48 ZW-1.65/16-250-JX 16 185 1440 water cooled
49 ZW-0.94/20-250-JX 20 132 1110 mixed cooled
50 ZW-1.15/20-250-JX 20 160 1350 mixed cooled
51 ZW-1.3/20-250A-JX 20 185 1570 water cooled
