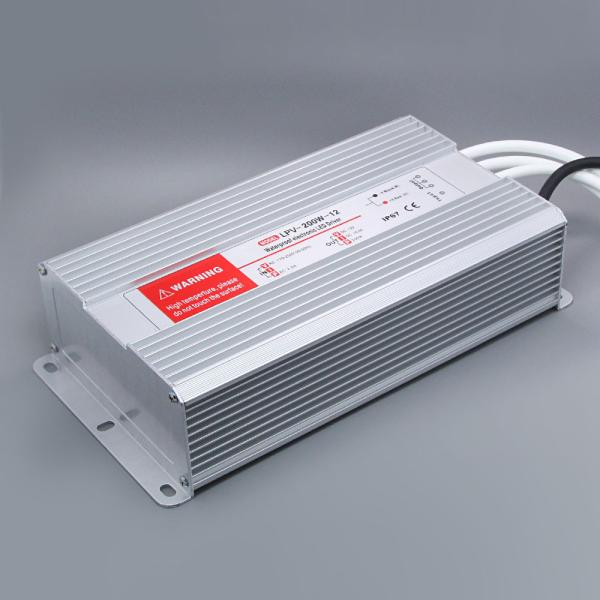

200W 24V 8.3A Single output IP67 waterproof power supply LPV-200-24 electronic LED driver
200W 24V 8.3A Single output IP67 waterproof power supply LPV-200-24 electronic LED driver
Specifications
Brand Name :
JH
Model Number :
LPV-200-24
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Paypal, Western union
Supply Ability :
30000pcs per month
Packaging Details :
1pc/box
Output Voltage :
24V
Output Frequency :
47~63Hz
Output Current :
8.3A
Output Power :
200W
Output Type :
Single
Input Voltage :
180~264VAC 254~370VDC
Protection :
over current, short circuit, over temperature protection
Description

200W 24V 8.3A Single output IP67 waterproof power supply LPV-200-24 electronic LED driver

Features:

1. Constant voltage output mode

2. Protection: over current, short circuit, over temperature protection

3. Heat from the cold

4. 100% full-load burn-in test

5. High quality and low price

Specification:

Model number LPV-200-12 LPV-200-24
DC Output Voltage 12V 24V
Output Voltage Error ± 2% ± 1%
Rated Output Current 16.5A 8.3A
Output Current Range 0~16.5A 0~8.3A
Ripple and Noise 150mVp-p 240mVp-p
Inlet Stability ± 0.5% ± 0.5%
Load Stability ± 1% ± 0.5%
DC Output Power 198W 200W
Efficiency 81% 83%
AC Input Voltage Range 180~264VAC 47~63Hz; 254~370VDC
Input Current 2A/230V
AC Inrush Current Cold-Start Current 30A/230V
Leakage Current <3.5mA/240VAC
Overload Protection 105%~150% Type: Cut Output, Reset: Auto Recovery
Over Voltage Protection 15~17V 30~32V
High-temperature Protection Case Temperature ≥ 85°C start up protection
Temperature Coefficient ± 0.03% /°C (0~50°C)
Start, Rise, Hold time 200ms, 200ms, 30ms
Vibration 10~500Hz, 2G 10min/1 cycle, a total of 60 minutes, Each axes
Withstand Voltage Input and Output Interval: 1.5KVAC, Input and Enclosure: 1.5KVAC, Output and Enclosure: 0.5KVAC
Isolation Resistance Input and Output Interval: Input and Enclosure, Output and Enclosure: 500VDC/100M Ohms
Working Temperature and Humidity -10°C~+60°C, 20%~90%RH
Dimension 235*120*55 mm
Weight 2.8kg

Dimension unit:mm
