10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading
Specifications
Place of Origin :
Henan, China (Mainland)
Brand Name :
Jianghe
Model Number :
GTJZ 10
Certification :
CE ISO
Supply Ability :
300 Set/Sets per Month ports are as rerequired
Packaging Details :
standard export packing
MOQ :
1 Set/Sets
Price :
Negotiable
Name :
10m sky lift scissor lift high rising equipment
Power :
220v
Application :
Aerial Construction Work
Lift Drive / Actuation :
Hydraulic
Rated Loading Capacity :
320kg
Max. Lifting Height :
122.4m
Lift Mechanism :
Scissor Lift
Weight :
2440kg
Min. Lifting Height :
8m
Keywords :
sky lift
Table Size :
2.27*1.14m
Overall Dimensions :
2.42*1.17*2.48m
Description

10m Self-Propelled Hydraulic Scissor Lift

Brief Introduction of industrial lifts:

Our industrial lift tables are available in a variety of capacities and sizes to accommodate ergonomic needs in the work place. From our standard models to our ground entry series, all of the ergonomic material handling equipment supplied by Lift Products is designed with uncompromising quality and standards. Lift tables are commonly used to position loads at an ergonomic height for packaging and assembly operations, to interface with machinery, and to change elevations of various logistics infrastructures.

Product Description:

1. self-propelled hydraulic powered.

2. solid non-marking tires to suit tough outdoor working conditions.

3. manual platform lowering valve in case of machine breaking down.

4. on-board diagnostic system to save time and manpower maintenance.

5. pothole guards and tilt level sensor to guarantee operators' safety.

6. emergency stop to avoid potential danger.

7. compact body and excellent mobility.

8. flexible operation and low noise, zero emission.

Scissor lift parameters
GTJZ10 GTJZ12 GTJZ14
Capacity 320kg 230kg/450kg 200kg
Capacity - Extension Deck 113Kg 113Kg 113Kg
Max Occupancy 2 2 2
Max Working Height - A 12m 14m 15.7m
Max Working Height - B 10m 12m 13.7m
Dimension(L*W*H) 2.42m*1.17m*1.93m 2.42m*1.17m*2.06m 2.79m*1.27m*2.06m
Platform size(L*W) 2.27m*1.14m 2.27m*1.14m 2.64m*1.14m
Extension deck size 0.9m 0.9m 0.9m
Lifting/Driving Motor 24V/3.3KW 24V/4.5KW 24V/4.5KW
Battery 4x6V/240Ah 4x6V/260Ah 4x6V/300Ah
Charger 24V/25Ah 24V/25Ah 24V/25Ah
Maxgradeability 25% 25% 25%
Weight 2480Kg 3100Kg 3180Kg

Packaging details: The whole machine is packaged in polythene woven cloth and plywood case or according to customers’ requirements.

Delivery details:

1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.

2. MOQ: 1pcs

3. Warranty : 3 years for wearing parts, 2 years for stuctures

4. Delivery Time: 7-30 days for batch goods.

5. Customers specifying freight forwarders or negotiable shipping methods!

What is the specification of our battery power scissor lifts?

10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading

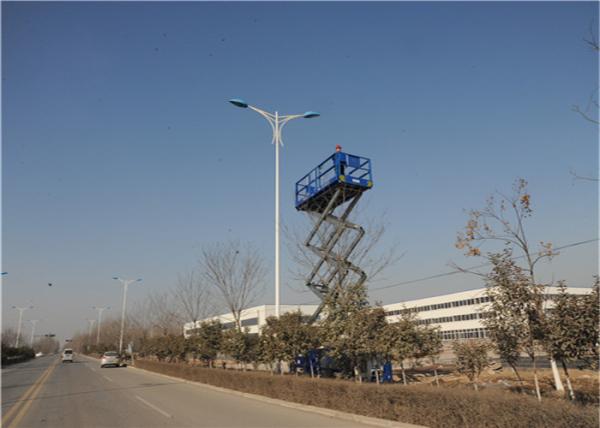

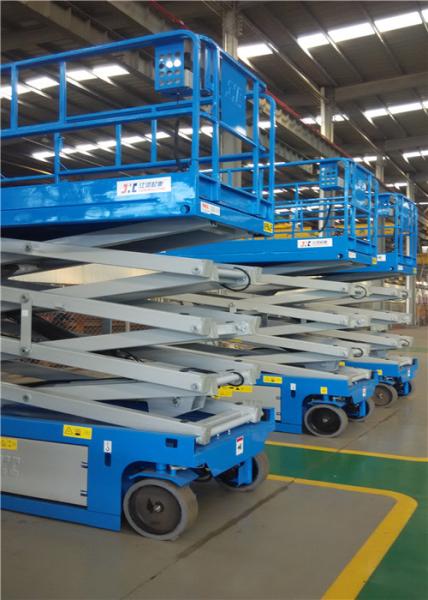

Product Photos

10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading

Main Components Origin

10m Sky Self Propelled Electric Scissor Lift Heavy Duty Ergonomic Design 320kg Loading

Why choose us?

1. We are Alibaba Assessed 2 years Gold Supplier.

2. We are a factory manufacturing scissor lifts,articulating boom lifts and telescopic boom lifts,best production capability ,best quality control, Best Service .

3. 100% QC inspection Before Shippment.

4. CE/IPAF/ISO listed,competitve price.

FAQ

Q1: What is the warranty for the aerial work platforms?

A1: For the products,we have 2 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: How to Guarantee the qualities?

A2: Most of our main components are imported from USA,Itay and etc, such as perkins and cummins engine.all the export products are carefully examined for 3 times before shipping.

Q3: If qualities problems happen, what should you do?

A3: We have established a muture after-sales network, professional hydraulic engineers and electrical engineers will offer help 24 hours online.

Q4: Will you offer operation and maintenance traninging?

A4: Yes, for all our customers, we have prepared full operation and maintenance courses to help you operate the machine.

Q5: If I buy in large quantities, do you have any preferential policy?

A5: Yes, if buying in large quantities, we will offer finance installment service and old-for-new ones service.

Q6: Can we get support if we have our own market position?

A6: Yes, now we are promoting overseas dealer policy, for dealers purchasing and selling our products in your country, we will offer a series of preferential policies such as competitive prices, preferential order manufacturing, face-to-face training and longer warranty and etc.
