Specifications
Place of Origin :
Henan, China (Mainland)
Brand Name :
JHC
Certification :
CE/IPAF
Supply Ability :
200 Set/Sets per Month
Packaging Details :
Standard export packaging
MOQ :
1 Set/Sets
Price :
Negotiable
Lift Mechanism :
Scissor Lift
Lift Drive / Actuation :
Hydraulic
Power :
24V/3.3KW
Table Size :
2.27*1.14m
Overall Dimensions :
2.42*1.17*1.93m
Weight :
2480KG
Warranty :
1 Year
After-sales Service Provided :
Free spare parts
Application :
Widely
Type :
Scissor Hydraulic Lift
Color :
Blue
Feature :
Easy Operation Safety Convenience
Max occupancy :
2
Batteries :
American Trojan
Charger :
24v/25a
Gradeability :
25%
Tires :
381*127mm
Port :
Qingdao port Shanghai port and Tianjin port
Description

Hot Sale 320kg Scissor Lift

Mobile lift tables come in a number of different powered and non-powered varieties. Both the vertical and horizontal motion can be manual, fully electric or a combination of the two. Mobile lift tables, also called lift carts, that are manually pushed and elevated through the use of a manual foot pump are economic work positioning solutions for light duty assembly operations where the product is transported from work cell to work cell throughout the process and the changes in elevation are minor. On the other side of the spectrum, electric-hydraulic lift tables paired with an industrial pallet truck find great utility in die handling applications from die racks to presses.

Introduction to Hydraulic Scissor Lift:

Hydraulic Scissor Lift, in general, are powered by diesel for rough terrain applications, or electric-powered, zero-emission versions with non-marking tyres for indoor use or sensitive environments. However, advancements in technology have made possible dual-powered Scissor Lift China powerful enough for rough terrain use yet also suitable for sensitive environments. For example, JIANHGE GTJZ series range of Cheap Scissor Lift operate on battery power and offer a longer runtime, but can be equipped with an on-board diesel generator that kicks in to recharge the batteries on worksites where exhaust is acceptable.

What Hydraulic Scissor Lift can do for you:

Thanks to the exceptional stability, large platforms, high capacities and heights Hydraulic Scissor Lift can reach, Jianghe’s range of Scissor Lift allow more workers, more tools and more materials to be lifted to height safely, efficiently and cost-effectively.

Speak to us at Sales & Service to ensure you have the right Jianghe Hydraulic Scissor Lift for your specific applications, so you can harness all the many safety, productivity and time-saving benefits of using a Hydraulic Scissor Lift.

Electric Scissor Lift Specifications:

Main Features
Zero-emission electric operation, energy-saving, environmentally-friendly, less noise
Front-wheel drive and zero inside turning radius
0.9 m roll-out platform extension
Automatic 25 amp battery charger
Proportional controls for drive functions
Multiple disc brakes provide smooth deceleration
Drive speed interlock limits speed while elevated
On-board diagnostics for easy troubleshooting
Emergency stop at both platform and ground controls
Solid, non-marking tires
AC power to platform
Gradeability applies to driving on slopes
Ideal for maneuvering in tight spaces
excellent for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces

No. Components Origin
1 Drive motor WHITE(USA)
2 brake WHITE(USA)
3 Manual platform lowering valve WHITE(USA)
4 Hydraulic valve blocks Doyle Pacific
5 Manual platform lowering pump WHITE(USA)
6 Power unit Bucher(Germany)
7 battery Trojan (USA) /FULLRIVER (USA)
8 charger QQE
9 paint PPG
10 Electric system DeltaTech CONTROL
11 controller DeltaTech CONTROL
12 Pressure sensor CE Brevini/Riefen (Italy)
13 Spool Hydraforce (USA)

Model GTJZ06 GTJZ08B GTJZ10A GTJZ1OB GTJZ12 GTJZ14
Height (elevated) 6m 8.0m 9.8m 10.0m 11.8m 14m
Platform height 4m 6.1m 7.8m 8.2m 9.8m 12m
Loading capacity 270kg 320kg 320kg 450kg 450kg 350kg
Platform size 2.3x0.77m 2.3x0.85m 2.3x0.85m 3.22xl.2m 2.56x1.15m 3.22xl.2m
Length 1.88m 2.3m 2.3m 2.45m 2.56m 2.55m
Width 0.77m 0.85m 0.85m 1.2m 1.15m 1.2m
Height (Lowered) 1.9m 2.25m 2.38m 2.26m 2.4m 2.5m
Gradeability 25% 25% 25% 25% 25% 25%
Power source 24V 24V 24V 24V 24V 24V
Vehicle weight 1335kg 2005kg 2180kg 2330kg 2500kg 3350kg

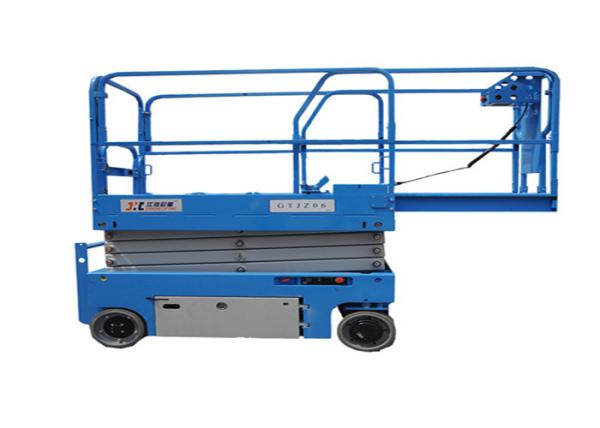

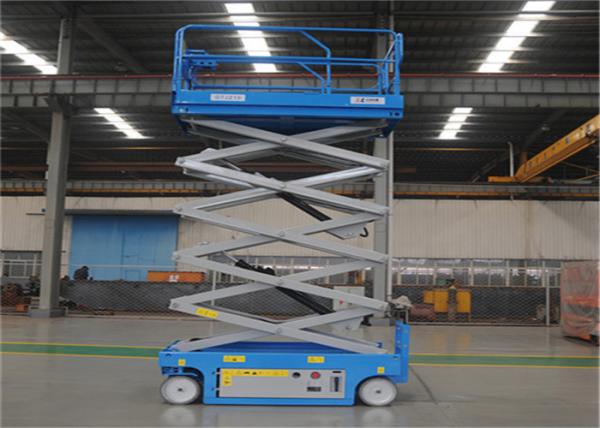

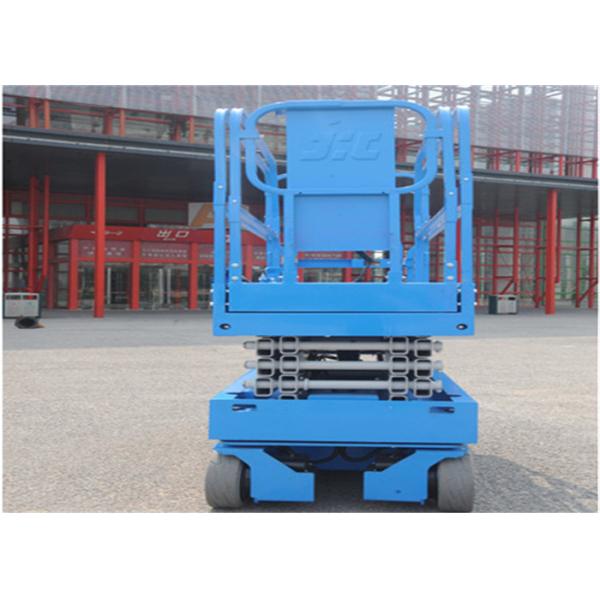

Electric Scissor Lift Photos:

320kg Movable  Electric Scissor Lift Carts 381*127mm Tire Size High Capacities320kg Movable  Electric Scissor Lift Carts 381*127mm Tire Size High Capacities

FAQ

Q1: What is the warranty for the aerial work platforms?

A1: For the products,we have 2 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: How to Guarantee the qualities?

A2: Most of our main components are imported from USA,Itay and etc, such as perkins and cummins engine.all the export products are carefully examined for 3 times before shipping.

Q3: If qualities problems happen, what should you do?

A3: We have established a muture after-sales network, professional hydraulic engineers and electrical engineers will offer help 24 hours online.

Q4: Will you offer operation and maintenance traninging?

A4: Yes, for all our customers, we have prepared full operation and maintenance courses to help you operate the machine.

Q5: If I buy in large quantities, do you have any preferential policy?

A5: Yes, if buying in large quantities, we will offer finance installment service and old-for-new ones service.

Q6: Can we get support if we have our own market position?

A6: Yes, now we are promoting overseas dealer policy, for dealers purchasing and selling our products in your country, we will offer a series of preferential policies such as competitive prices, preferential order manufacturing, face-to-face training and longer warranty and etc.
