Specifications
Place of Origin :
Henan, China (Mainland)
Brand Name :
JHC
Certification :
CE/IPAF
Supply Ability :
200 Set/Sets per Month
Packaging Details :
Standard export packaging
MOQ :
1 Set/Sets
Price :
Negotiable
Lift Mechanism :
Scissor Lift
Lift Drive / Actuation :
Hydraulic
Power :
24V/3.3KW
Table Size :
2.27*1.14M
Overall Dimensions :
2.42*1.17*1.93M
Weight :
2480KG
Warranty :
1 Year
After-sales Service Provided :
Free spare parts
Type :
Scissor Hydraulic Lift
Application :
Widely
Color :
Blue
Feature :
Easy Operation Safety Convenience
Max occopancy :
2
Batteries :
American Trojan
Charger :
24v/25a
Gradeability :
25%
Port :
Qingdao port Shanghai port and Tianjin port
Description
10M Cheap Scissor lift China with CE

This machine is a self-propelled aerial work platform on top of an elevating scissor arm mechanism. The lift's intended purpose is to position personnel with their tools and supplies at positions above ground level. The machine can be used to reach work areas located above machinery or equipment positioned at ground level.

Henan Jianghe Crane Co., Ltd was founded in 1992, we are dedicated to manufacturing self propelled scissor lifts, articulating boom lifts, telescopic boom lifts, cranes and hoists・ Our products have successfully applied to China* s State owned China Railway Engineering Corporation, China* s State owned CRRC Corporation Limited and other famous brands・

Jianghe, Alibaba assessed gold supplier and strict quality manage as professional aerial work platform manufacturer* with full enthusiasm, looking forward to cooperating with you

Jianghe is owning the full production line, producing 300 sets scissor lifts, 100 telescopic boom lifts and 100 articulating boom lifts per month. Each process is strictly committed according to International testing standard CE/ISO etc.

What it can do for you:

Thanks to the exceptional stability, large platforms, high capacities and heights Hydraulic Mobile Scissor Lift can reach, Jianghe’s range of Scissor Lift allow more workers, more tools and more materials to be lifted to height safely, efficiently and cost-effectively.

Speak to us at Sales & Service to ensure you have the right Jianghe Hydraulic Mobile Scissor Lift for your specific applications, so you can harness all the many safety, productivity and time-saving benefits of using a Hydraulic Mobile Scissor Lift.

Models GTJZ10
Dimensions
Plalfbrm Height Max 32.8ft (10m)
Working Height Max 39.4(1 (12m)
Platlorm Extended 2.95ft (0.9m)
Length-slowed 7.9ft (2.42m)
Width-stowed 3.8ft (1.17m)
Height-stowed 8. Ill (2.48m)
Wheelbase 6.2ft (1.88m)
Ground Clearance 0.33ft (0.1m)
Platform Sizc(L*W*H) 7.7*3.8*3.6ft 2.3*1.17*1.Im
Productivity
Max Platform Occupancy 2
Lili Capacity 7O5lbs (320kg)
Lin Capacity-extension deck 249lbs(ll3kg)
Drive Speed-stowed 0-2.2mph (0-3.5km/h)
Drive Speed-raised 0-0.5mph (0-0.8km/h)
Gradcabilily 25%
Turning Radius-Inside Oft (Om)
Turning Radius-Outside 7fl(2.14m)
Raisc/Lowcr Speed 45s/35s
Controls Proportional
Drives Dual front wheel
Brakes Dual rear wheel
Tire Sizc(Solid non-marking) l3.3*4.1ft(406*l25mm)
Power
Power Source 24V(4*6V225Ah Batteries)
Hydraulic System Capacity 4.2gal(16L)
Weight
indoor 48721bs (2210kg)
Standards Compliance

CE/ISO/1PAF

Packaging details: The whole machine is packaged in polythene woven cloth and plywood case or according to customers’ requirements.

Delivery details:

1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.

2. MOQ: 1pcs

3. Warranty : 3 years for wearing parts, 2 years for stuctures

4. Delivery Time: 7-30 days for batch goods.

5. Customers specifying freight forwarders or negotiable shipping methods!

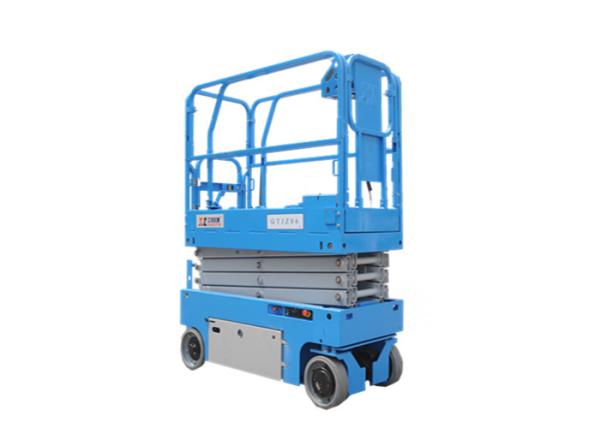

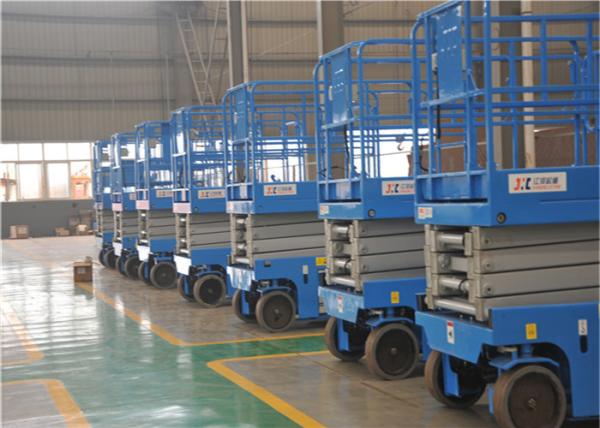

Electric Scissor Lift Photos:

Elevated  Ergonomic Flat Loading Dock Electric Scissor Lift Professional Time Saving

Elevated  Ergonomic Flat Loading Dock Electric Scissor Lift Professional Time Saving

FAQ

Q1: What is the warranty for the aerial work platforms?

A1: For the products,we have 2 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: How to Guarantee the qualities?

A2: Most of our main components are imported from USA,Itay and etc, such as perkins and cummins engine.all the export products are carefully examined for 3 times before shipping.

Q3: If qualities problems happen, what should you do?

A3: We have established a muture after-sales network, professional hydraulic engineers and electrical engineers will offer help 24 hours online.

Q4: Will you offer operation and maintenance traninging?

A4: Yes, for all our customers, we have prepared full operation and maintenance courses to help you operate the machine.

Q5: If I buy in large quantities, do you have any preferential policy?

A5: Yes, if buying in large quantities, we will offer finance installment service and old-for-new ones service.

Q6: Can we get support if we have our own market position?

A6: Yes, now we are promoting overseas dealer policy, for dealers purchasing and selling our products in your country, we will offer a series of preferential policies such as competitive prices, preferential order manufacturing, face-to-face training and longer warranty and etc.
