Indoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m Towable
Indoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m Towable
Indoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m Towable
Indoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m Towable
Indoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m Towable
Indoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m Towable
Indoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m Towable
Indoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m Towable
Specifications
Place of Origin :
Henan, China (Mainland)
Brand Name :
JIANGHE
Model Number :
GTJZ10
Certification :
CE Certificate
Supply Ability :
300 Unit/Units per Month
Packaging Details :
standard export package/container
MOQ :
1 Unit/Units
Price :
Negotiable
Power :
3.0KW/24V
Max. Lifting Height :
8.1m
Overall Dimensions :
2420mm*830mm*2370mm(L*W*H)
Voltage :
6v*4/224Ah/120-360V
Lift Mechanism :
Scissor Lift
Lift Drive / Actuation :
Hydraulic
Rated Loading Capacity :
230kg
Min. Lifting Height :
2.07m
Table Size :
2270mm*830mm(L*W)
Weight :
2100kg
Description
14ft-46ft 8m 10m 12m indoor outdoor quality hydraulic electric scissor lift for sale China CE

Application: This machine is a self-propelled aerial work platform on top of an elevating scissor arm mechanism. The lift's intended purpose is to position personnel with their tools and supplies at positions above ground level. The machine can be used to reach work areas located above machinery or equipment positioned at ground level.

Scissor Lifts Specifications
Model
GTJZ06
GTJZ08
GTJZ10
GTJZ12
GTJZ14
Capacity
230KG
230KG
320KG
320KG
200KG
Platform Height
7.8M
10.1M

12M
13.8M
15.7M
Length
5.8M
8.1M
10M
11.8M
13.7M
Width
0.76M
0.83M
1.17M
1.17M
1.27M
Height
2.19M
2.37M
2.49M
2.62M
2.62M
Weight
1260KG
2100KG
2480KG
3100KG
3180KG
Main Features

1) self-propelld hydraulic powered, Flexible operation and low noise, no pollution.
2) Adopting advanced world famous brand components in hydraulic parts ,electric parts and operation parts.
3) solid non-marking tires to suit tough outdoor working conditions.
4) pothole guards and tilt level sensor to guarantee operators' safety.
5) emergency stop to avoid potential danger.

Machine Parts

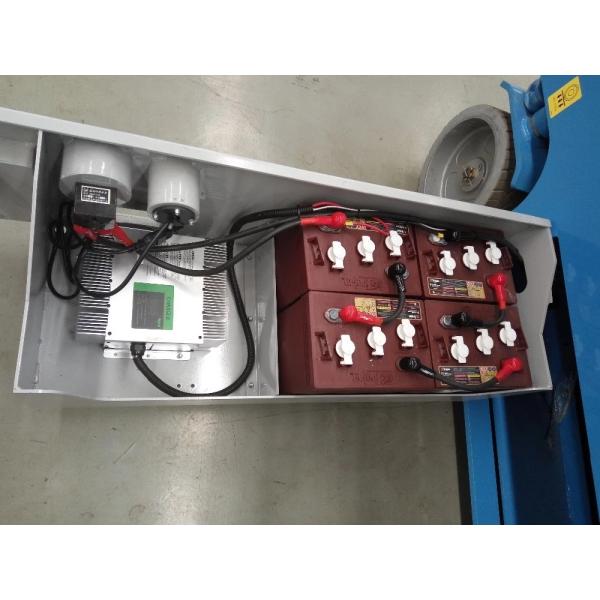

  • Name: Battery
  • Brand: Trojan
  • Original: America
  • American Trojan battery, deep cycle battery,make sure the machines' non-stop working.

Main Features

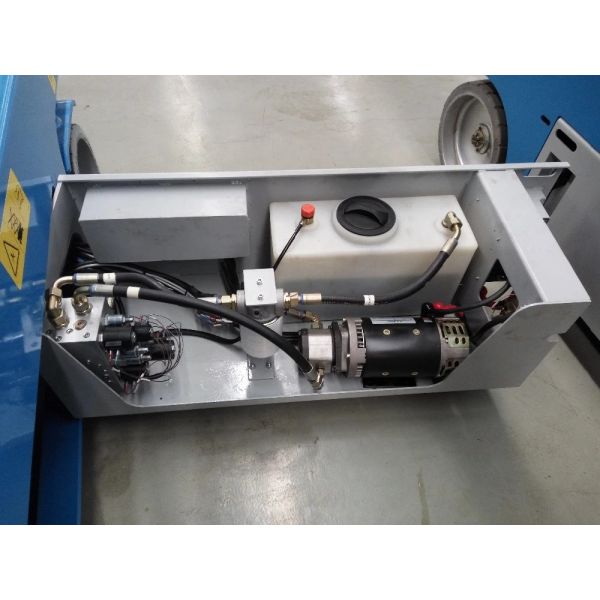

  • Name: Power Unit
  • Brand: Bucher
  • Original: German
  • German famous power unit brand, making the machines more powerful.

Certifications
Indoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m Towable
Detailed Images
Indoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m TowableIndoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m Towable
Indoor Outdoor Single Man Electric Scissor Lift Pneumatic 8m 10m 12m Towable

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
