AWP Hydraulic Lift Table , Aerial Work Platform Anti Slipping Four Wheels
AWP Hydraulic Lift Table , Aerial Work Platform Anti Slipping Four Wheels
AWP Hydraulic Lift Table , Aerial Work Platform Anti Slipping Four Wheels
AWP Hydraulic Lift Table , Aerial Work Platform Anti Slipping Four Wheels
AWP Hydraulic Lift Table , Aerial Work Platform Anti Slipping Four Wheels
AWP Hydraulic Lift Table , Aerial Work Platform Anti Slipping Four Wheels
AWP Hydraulic Lift Table , Aerial Work Platform Anti Slipping Four Wheels
AWP Hydraulic Lift Table , Aerial Work Platform Anti Slipping Four Wheels
Specifications
Place of Origin :
Henan, China (Mainland)
Brand Name :
JIANGHE
Certification :
CE ISO9001 SGS
Supply Ability :
100 Unit/Units per Month
Packaging Details :
standard export package/container
MOQ :
1 Unit/Units
Price :
Negotiable
Lift Mechanism :
Scissor Lift
Lift Drive / Actuation :
Hydraulic
Power :
3kw
Rated Loading Capacity :
320kg
Min. Lifting Height :
2.48m
Max. Lifting Height :
10m
Table Size :
2270mm*1170mm*1370mm
Overall Dimensions :
2420mm*1170mm*2480mm,
Weight :
2440kg
Warranty :
1 Years
Color :
Blue&Grey
Voltage :
6v*4/224Ah/120-360V
Application :
Widely
Feature :
Easy Operation Safety Convenience
Type :
Solid Tyre
After-sales Service Provided :
Overseas third-party support available
Port :
TIANJIN/QINGDAO/SHANGHAI
Description

Four Wheels AWP mobile Self Propelled 10m Electric scissor Lift table for sale

This 12m self propelled scissor lift is widely used in places and applications such as factory plants, railway stations, highways, airports, petroleum companys, power grids, halls, hotels, overhauling, chemical engineering, medicines, army troops, nuclear power industry, fire fighting, stadiums, community property management and etc.

SPECIFICATIONS FOR 12M SCISSOR LIFTS
Model No
GTJZ1412HD
Platform Size
2.27x1.14m
Capacity
320Kg
Extension Deck Size - G
0.90m
Capacity - Extension Deck
113Kg
Ground Clearance
0.10m
Max Occupancy
2
Battery
4x6V/260A
Max Working Height - A
12m
Driving Speed (Stowed)
3.5Km/h
Max Working Height - B
10m
Driving Speed (Elevated)
0.8Km/h
Length - C
2.42m
Max Gradeability
25%
Width - D
1.17m
Max Tilt
3°
Height - E ( Railing Folded)
2.06m
Weight
2480Kg
Main Features
Zero-emission electric operation, energy-saving, environmentally-friendly, less noise
Front-wheel drive and zero inside turning radius
0.9 m roll-out platform extension
Automatic 25 amp battery charger
Proportional controls for drive functions
Multiple disc brakes provide smooth deceleration
Drive speed interlock limits speed while elevated
On-board diagnostics for easy troubleshooting
Emergency stop at both platform and ground controls
Solid, non-marking tires
AC power to platform
Gradeability applies to driving on slopes
Ideal for maneuvering in tight spaces
excellent for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces

Packaging details: The whole machine is packaged in polythene woven cloth and plywood case or according to customers’ requirements.

Delivery details:

1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.

2. MOQ: 1pcs

3. Warranty : 3 years for wearing parts, 2 years for stuctures

4. Delivery Time: 7-30 days for batch goods.

5. Customers specifying freight forwarders or negotiable shipping methods!

AWP Hydraulic Lift Table , Aerial Work Platform Anti Slipping Four WheelsAWP Hydraulic Lift Table , Aerial Work Platform Anti Slipping Four Wheels

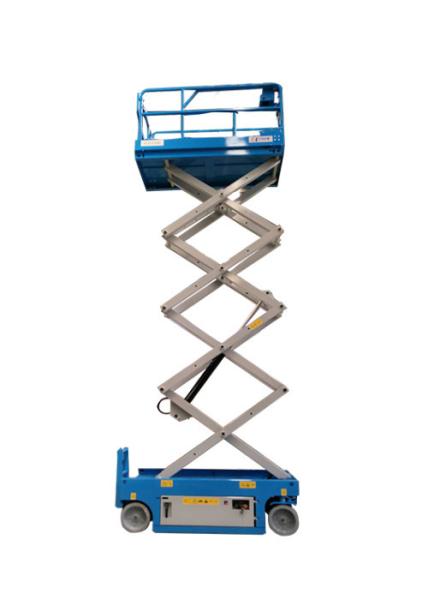

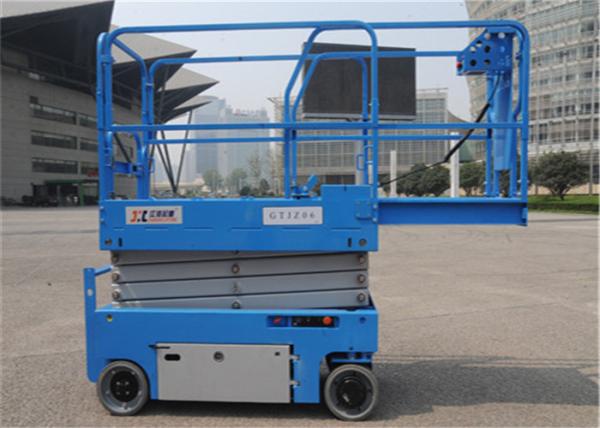

This machine is a self-propelled aerial work platform on top of an elevating scissor arm mechanism. The lift's intended purpose is to position personnel with their tools and supplies at positions above ground level. The machine can be used to reach work areas located above machinery or equipment positioned at ground level.

Henan Jianghe Crane Co., Ltd was founded in 1992, we are dedicated to manufacturing self propelled scissor lifts, articulating boom lifts, telescopic boom lifts, cranes and hoists・ Our products have successfully applied to China* s State owned China Railway Engineering Corporation, China* s State owned CRRC Corporation Limited and other famous brands・

Jianghe, Alibaba assessed gold supplier and strict quality manage as professional aerial work platform manufacturer* with full enthusiasm, looking forward to cooperating with you

Jianghe is owning the full production line, producing 300 sets scissor lifts, 100 telescopic boom lifts and 100 articulating boom lifts per month. Each process is strictly committed according to International testing standard CE/ISO etc.
