Specifications
Place of Origin :
Henan, China (Mainland)
Brand Name :
JHC
Certification :
CE/IPAF
Supply Ability :
200 Set/Sets per Month
Packaging Details :
Standard export packaging
MOQ :
1 Set/Sets
Price :
Negotiable
Lift Mechanism :
Scissor Lift
Lift Drive / Actuation :
Hydraulic
Power :
24V/4.5KW
Table Size :
2.27*1.14M
Overall Dimensions :
2.42*1.17*2.06M
Weight :
3100KG
Warranty :
1 Year
After-sales Service Provided :
Free spare parts
Type :
Scissor Hydraulic Lift
Application :
Widely
Color :
Blue
Feature :
Easy Operation Safety Convenience
Max occopancy :
2
Batteries :
4*6V/260AH
Charger :
24v/25a
Max gradeability :
25%
Port :
Qingdao port Shanghai port and Tianjin port
Description

12M low price hydraulic scissor lift in stock

Aerial work platform in accordance with the arm exhibition forms can be divided into ZhiBeiShi and crank arm type two kinds, crank arm type aerial work platform using multilevel folding arm combination design, flexible, convenient and can span the barrier, in a lift for more work.Better security, mobile convenience, but cost is tall.Crank arm overhead working flat wagon is widely suitable for use in urban management, power, street lamp, advertising, communications, framing, gardens, transportation, port, airport, port, large industrial and mining companies in sectors such as installation and maintenance and high homework.

What Hydraulic Scissor Lift can do for you:

Thanks to the exceptional stability, large platforms, high capacities and heights Hydraulic Scissor Lift can reach, Jianghe’s range of Scissor Lift allow more workers, more tools and more materials to be lifted to height safely, efficiently and cost-effectively.

Speak to us at Sales & Service to ensure you have the right Jianghe Hydraulic Scissor Lift for your specific applications, so you can harness all the many safety, productivity and time-saving benefits of using a Hydraulic Scissor Lift.

Electric Scissor Lift Specifications:

SPECIFICATIONS FOR 12M SCISSOR LIFTS
Model No GTJZ1412HD Platform Size 2.27M*1.14M
Capacity 320KG Extension Deck Size - G 0.9M
Capacity - Extension Deck 113KG Ground Clearance 0.1M
Max Occupancy 2 Battery 4*6V/240Ah
Max Working Height - A 13.8M Driving Speed (Stowed) 3.5KM/H
Max Working Height - B 11.80M Driving Speed (Elevated) 0.8KM/H
Length - C 2.42M Max Gradeability 25%
Width - D 1.17M Max Tilt 3°/2°
Height - E ( Railing Folded) 1.93M Weight 2480KG

SPECIFICATIONS FOR 12M SCISSOR LIFTS
Model No GTJZ1412HD Platform Size 2.27x1.14m
Capacity 320Kg Extension Deck Size - G 0.90m
Capacity - Extension Deck 113Kg Ground Clearance 0.10m
Max Occupancy 2 Battery 4x6V/260Ah
Max Working Height - A 13.80m Driving Speed (Stowed) 3.5Km/h
Max Platform Height - B 11.80m Driving Speed (Elevated) 0.8Km/h
Length - C 2.42m Max Gradeability 0.25
Width - D 1.17m Max Tilt
Height - E ( Railing Folded) 2.62m Weight 3100Kg

Electric Scissor Lift:

1. self-propelled hydraulic powered.

2. solid non-marking tires to suit tough outdoor working conditions.

3. manual platform lowering valve in case of machine breaking down.

4. on-board diagnostic system to save time and manpower maintenance.

5. pothole guards and tilt level sensor to guarantee operators' safety.

6. emergency stop to avoid potential danger.

7. compact body and excellent mobility.

8. flexible operation and low noise, zero emission.

Packaging details: The whole machine is packaged in polythene woven cloth and plywood case or according to customers’ requirements.

Delivery details:

1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.

2. MOQ: 1pcs

3. Warranty : 3 years for wearing parts, 2 years for stuctures

4. Delivery Time: 7-30 days for batch goods.

5. Customers specifying freight forwarders or negotiable shipping methods!

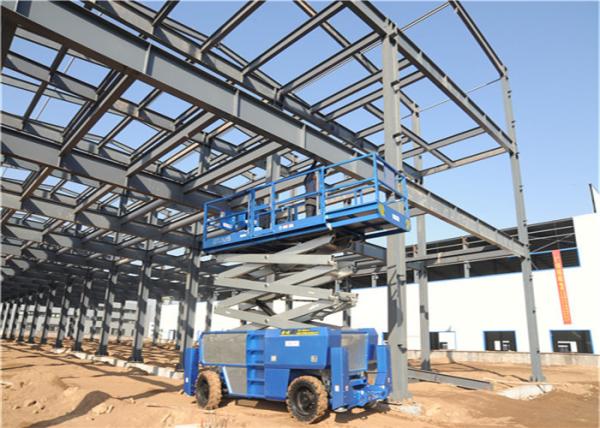

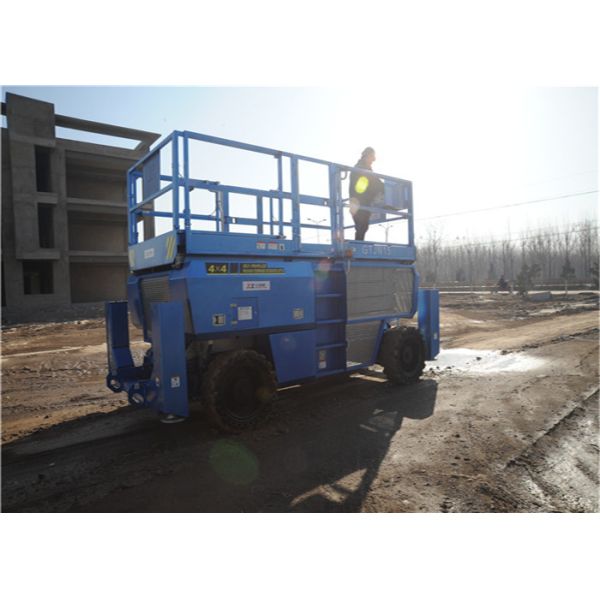

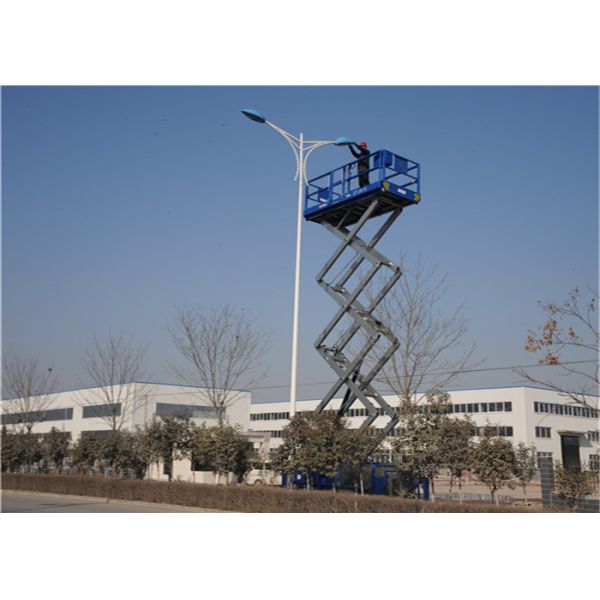

Electric Scissor Lift Photos:

Widely Application Industrial Scissor Lift , Portable Hydraulic Lift Non Marking Solid Tire

Widely Application Industrial Scissor Lift , Portable Hydraulic Lift Non Marking Solid Tire

FAQ

Q1: What is the warranty for the aerial work platforms?

A1: For the products,we have 2 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: How to Guarantee the qualities?

A2: Most of our main components are imported from USA,Itay and etc, such as perkins and cummins engine.all the export products are carefully examined for 3 times before shipping.

Q3: If qualities problems happen, what should you do?

A3: We have established a muture after-sales network, professional hydraulic engineers and electrical engineers will offer help 24 hours online.

Q4: Will you offer operation and maintenance traninging?

A4: Yes, for all our customers, we have prepared full operation and maintenance courses to help you operate the machine.

Q5: If I buy in large quantities, do you have any preferential policy?

A5: Yes, if buying in large quantities, we will offer finance installment service and old-for-new ones service.

Q6: Can we get support if we have our own market position?

A6: Yes, now we are promoting overseas dealer policy, for dealers purchasing and selling our products in your country, we will offer a series of preferential policies such as competitive prices, preferential order manufacturing, face-to-face training and longer warranty and etc.
