Specifications
Place of Origin :
Henan, China (Mainland)
Brand Name :
Jianghe brand
Model Number :
GTJN06
Certification :
iso9001 , ce , ccma
Supply Ability :
10000 Set/Sets per Month CE certificated diesel man lift table
Packaging Details :
plastic
MOQ :
1 Set/Sets
Price :
Negotiable
Lift Mechanism :
Scissor Lift
Lift Drive / Actuation :
Hydraulic
Power :
22kw
Rated Loading Capacity :
320kg
Min. Lifting Height :
7.8m
Max. Lifting Height :
13.8m
Table Size :
1.67m*0.76m
Overall Dimensions :
1.86m*0.76m*2.18m
Weight :
1415kg
color :
as requirements
ground clearance :
0.1m
drive speed(platform lowered) :
0-5km/h,0-3.5km/h
drive speed (platformelevated) :
0-0.8km/h
lift up :
27s,37s,45s,50s
lift-down :
22s,32s,35s,38s
tire type :
off road tires
name :
hydraulic self propelled 20 meter lift
keywords :
20 meter lift
Application :
Maintenance
Warranty :
one year for the main parts
After-sales Service Provided :
Overseas service center available
Port :
Qingdao/Tianjin/Shanghai port
Description

Hydraulic Self propelled 20 Meter Lift

Product Description

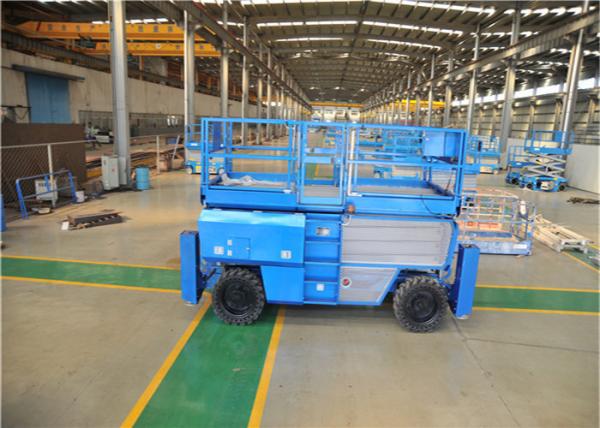

  • GTJN SERIES ROUGH TERRAIN SCISSOR LIFTS

  • Completely conquer the complex terrain, maximize productivity

  • GTJN series rough terrain scissors lifts are four-wheel drive robust vehicle for construction----- the ideal vehicle to boost the productivity in the slab-off outdoor environment. Lifting speed and larger platform are much more competitive. Flexible operation and sufficient loading capacity make the machine quickly arrived at the construction site and get the work done. Maximize your productivity.

  • Speed and traction forceGTJN series rough terrain scissors lifts can easily and quickly move through uneven or rough areas. Equipment with four- wheel drive and positive- traction system can provide 40% grade ability when moving up on a slope.

  • Solid rib tire Special thick rib tires for aerial work platforms make movement more stable, secure and durable.

  • Selfbalancing jack, large loading capacit450~1000kg loading capacity fully meets the requirement of aircraft maintenance, architecture decoration etc. just pressing the button, you can cope with the uneven ground. The angles of lateral adjustment will less than 5 degree, the angle of forward-backward adjustment will less then 4 degree and you will reach a precise self-balancing.

  • Larger work platform

With maximum 6.57x1.83m of operating platform, GTJN series will be best solution for conditions of move workers, materials and tools.

Drawing of Hydraulic Self propelled 20 Meter Lift

MODEL

GTJN10

GTJN12A

GTJN12B

GTJN15

GTJN18

Height(Elevated)

10m

12m

12m

15m

18m

Platform Height

8m

10m

10m

13m

16m

Loading Capacity

565kg

450kg

1000kg

680kg

680kg

Platform Size

3.7x1.54m

3.7x1.54m

6.57x1.83m

6.57x1.83m

6.57x1.83m

Length

2.65m

2.65m

4.88m

4.88m

4.88m

Width

1.8m

1.8m

2.27m

2.27m

2.27m

Height(Lowered)

2.42m

2.54 m

2.76 m

2.98 m

3.15 m

Grade Ability

40%

40%

50%

50%

40%

Power Source

20.4kw- 27.7hp

20.4kw- 27.7hp

31.2kw-42.4hp

31.2kw-42.4hp

31.2kw-42.4hp

Vehicle Weight

3310kg

3860 kg

7300 kg

7800 kg

8700 kg

Our Services

1 We can design the customerized rough terrain scissor lift as your requirement.

2 The rough terrain scissor lift will be recommended to you as your requirement.

3 Shipment can be arranged from our port to your destination port.

4 Operation video can be sent to you if needed.

5 User-friendly English manual for machine installation using and maintenance.

6 1 year warranty for whole machine without man-made faults.

7 We will send you parts for free if there are any non-human factors faults during warranty

8 upply 24-hours technical assistance by email, telephone or other communication online.

FAQ:

Q1: What is the warranty for the aerial work platforms?

A1: For the products, we have 2 years warranty. If any quality problems on our side occured in this period, we will take on the shipping cost and replacement.

Q2: How to Guarantee the qualities?

A2: most of our main components are imported from USA, Itay and etc, such as perkins and cummins engine.all the export products are carefully examined for 3 times before shipping.

Q3: If qualities problems happen, what should you do?

A3: we have established a muture after-sales network, professional hydraulic engineers and electrical engineers will offer help 24 hours online.

Q4: Will you offer operation and maintenance traninging?

A4: Yes, for all our customers, we have prepared full operation and maintenance courses to help you operate the machine.

Q5: If I buy in large quantities, do you have any preferential policy?

A5: Yes, if buying in large quantities, we will offer finance installment service and old for new ones service.

Q6: Can we get support if we have our own market position?

A6: Yes, now we are promoting overseas dealer policy, for dealers purchasing and selling our products in your country, we will offer a series of preferential policies such as competitive prices, preferential order manufacturing, face-to -face training and longer warranty and etc.
