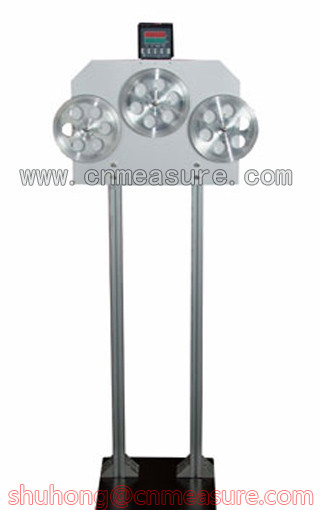

High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L
High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L
High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L
High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L
High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L
High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L
High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L
High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L
Specifications
Brand Name :
Mercury
Model Number :
CCDL-03L
Place of Origin :
China Zhengzhou
MOQ :
1 PCS
Price :
USD
Payment Terms :
T/T, Paypal
Supply Ability :
2000 PCS per month
Delivery Time :
Within 2 days
Packaging Details :
Wooden 55cm*55cm*25cm
Color :
Black
Description

High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L

Product Introduction
CCDL Series High Precision Wheel Meters will provide the industry's most accurate measurement.
This wire length counter will reduce your cost of production.

High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L

Features
1.Designed for wire and cable pipe meter counting.
2.LED display for easy reading and display length and line speed.
3. Electronic controllers provide multiple setting of relay output, easy to do automated control.
4.High accuracy: +/- 0.1%
5.Positive direction or reverse two-way adjustable counting
6.Data protection when power down
7. Height stand can be adjusted to adapt to different heights of the production line.
8. Easy to install and long-term use.

High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L

High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L

Model CCDL-03L
Measuring Range 0.1-3mm
Max Counting Length 99999.9
Max Total Length 999999
Dimension 500mm x 300mm x 1250mm
Accuracy +/- 0.1%
Max Measuring Speed 400 m/min
Relay Output 2
Alarm Output Yes
Display digits 6 digits
Length Measuring Unit meter
Pressure Measuring Unit No
Digital Pressure Control No
Calibration Yes
Decimal Point Shift Yes
Length Preset Yes
Ahead of Preset Output Yes
Control Preset Yes
Emergent Data Protection Yes
Two-Direction Counting Yes
Ft Measuring Unit Option
RS485 Option
Power Consumption <10W
Voltage 220V 50/60HZ

High precision Wheel length counter. Threadlet, Optical fiber length measuring device CCDL-03L

If you have any questions, please connect to us:
E-mail: shuhong@cnmeasure.com
Website: www.cnmeasure.com
TEL: +86-135 9803 3248
Skype number: cnmeasure
Address: NO.36 Hongsong Road, High-tech Zone, Zhengzhou, CHINA,
Manufacturer: Zhengzhou Mercury-tech Co.,Ltd.
