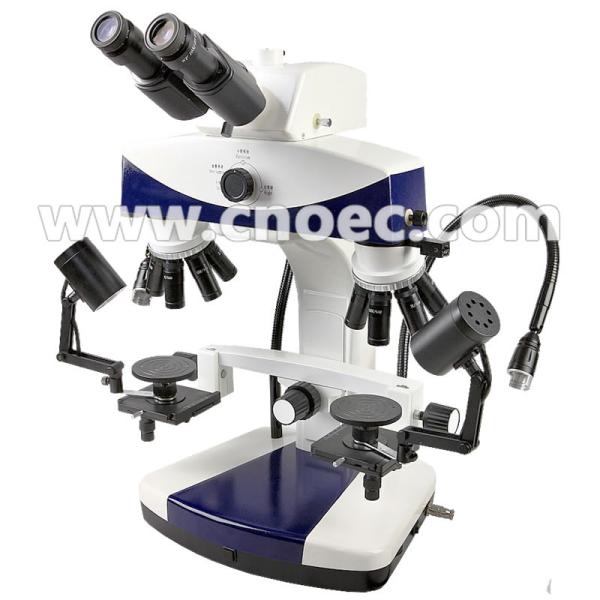

A18.1848 Forensic Comparison Microscope Specification

Magnification

3.36x~336x

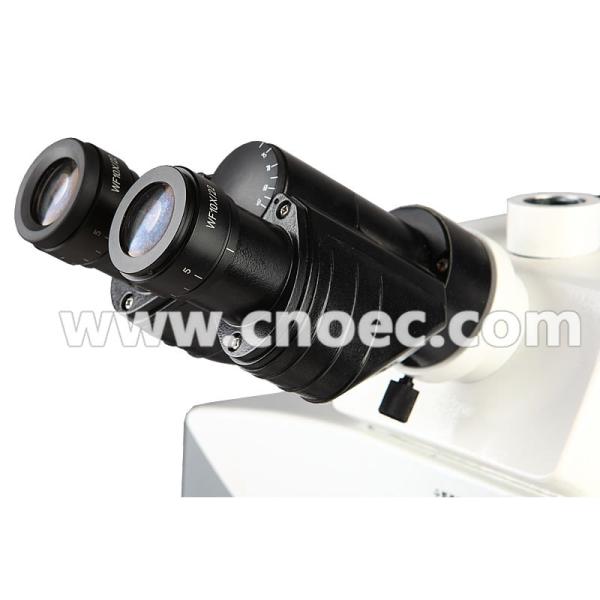

Head

Bionocular Head, 30° Incline, Interpupilary Distance 50~75mm,

Diopter +/-5 Adjustable

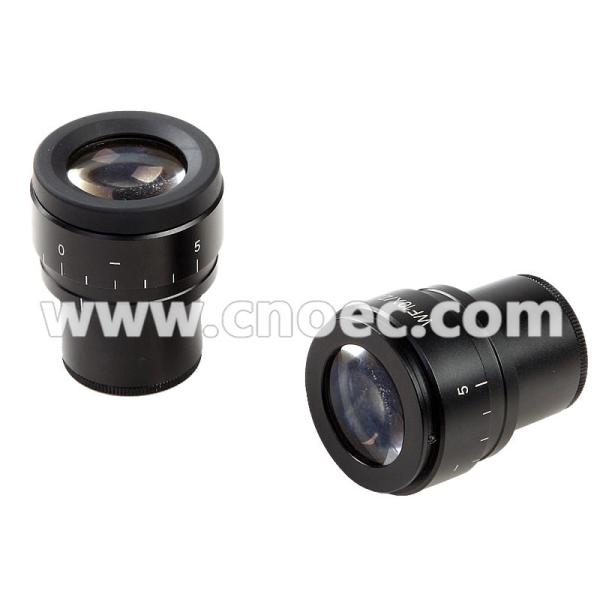

Eyepiece

WF10x/23mm, High Eyepoint

WF20x/12mm, High Eyepoint

Nosepiece

6 Hole Click Stop Nosepiece

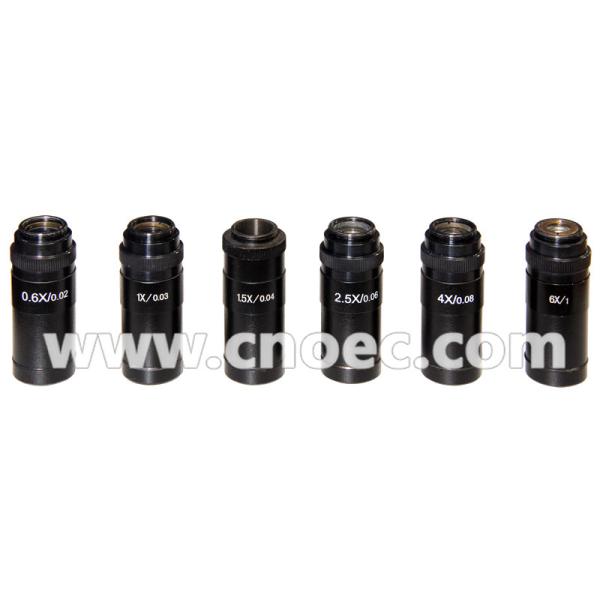

Objective

LWD Infinity Plan Achromatic Objective 0.6x, 1x, 1.5x, 2.5x, 4x, 6x

Auxiliary Lens 0.4x, 2.0x

Working Distance

100mm

View Field

Dia. 1.0~90mm

Magnification Correcting

Magnification Correction System, with Correcting Lens

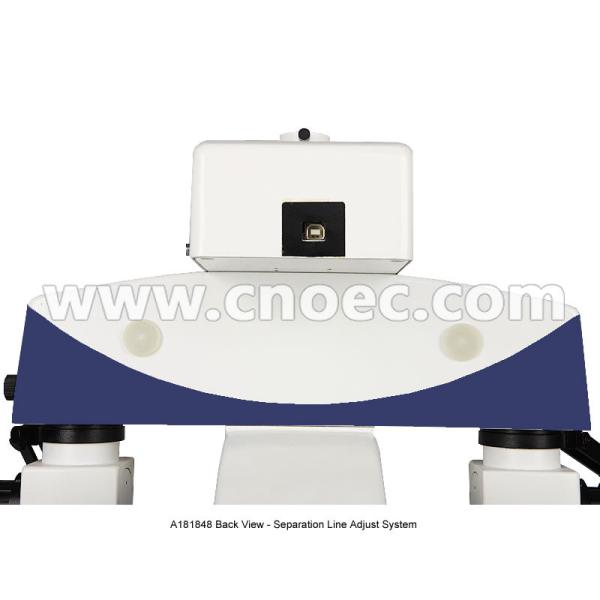

Separation Line Adjusting

Seperation Line Adjust System in Back, with Special Designed Adjust Driver

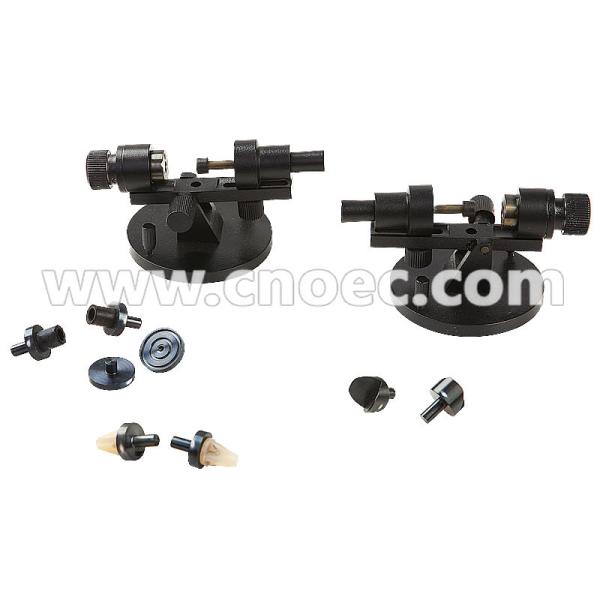

Working Stage

Square Manual Working Stage 100*100mm, Moving Range 80*80*54mm

Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable

Joint Left/Right Moving Range 54mm, Joint Up/Down Range 0~150mm

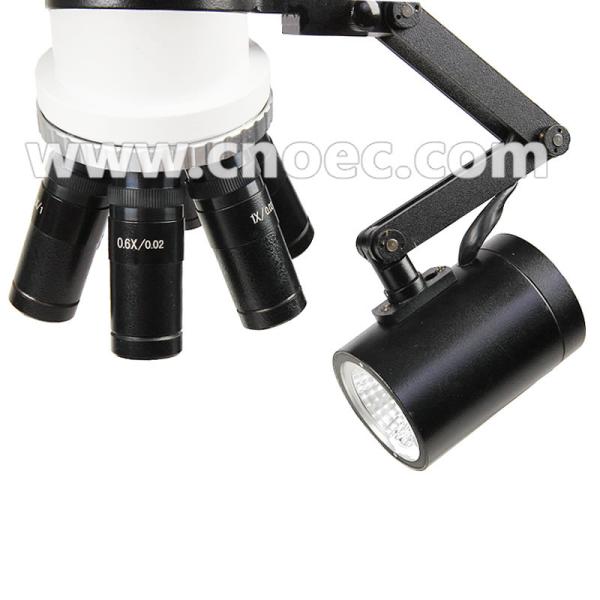

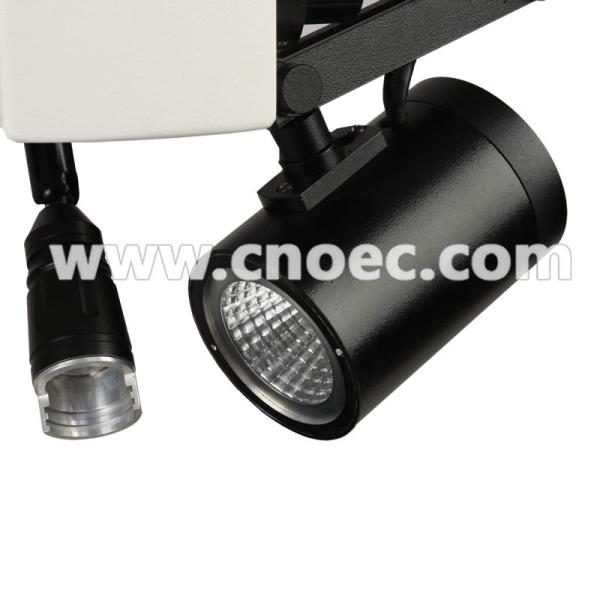

Light Source

5W LED Warm Light, High Brightness, Brightness Adjustable

5W LED Cold Light, High Brightness, Brightness Adjustable

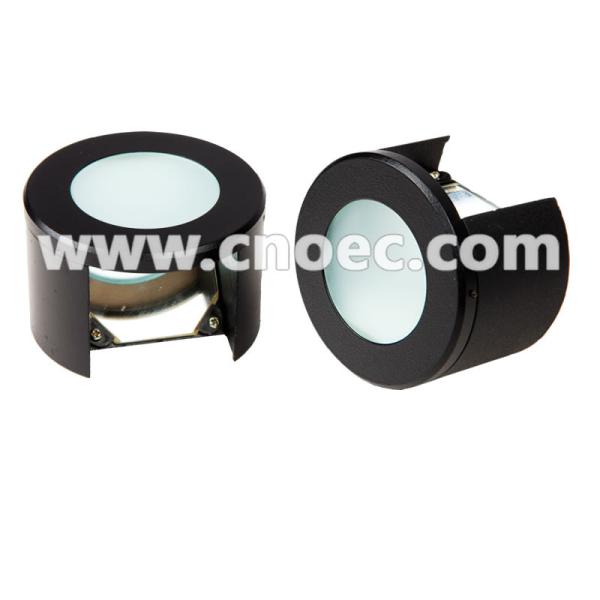

Coaxial Light Lens, to observe in deep hole, or smooth object surface

Polarizing Light Lens, to eliminate flare lights and dazzling lights;

Transmit Bottom Light

Ultraviolet Light Lens

Filters: Red, Blue, Yellow, Green

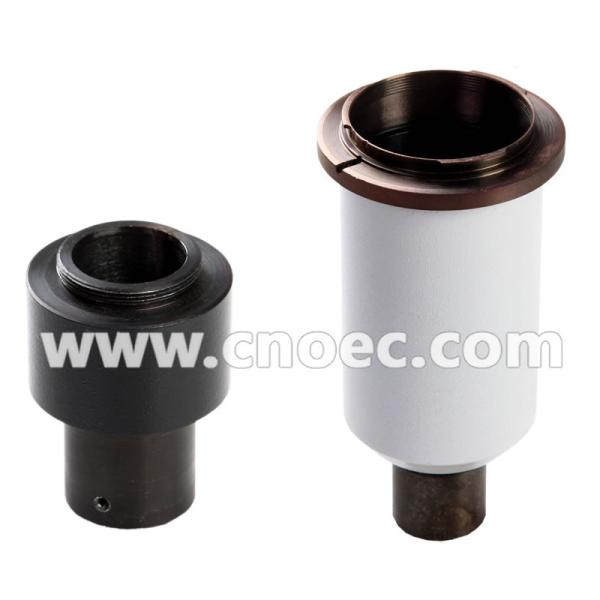

Adapter

CCD Adapter

Photo Adapter for SLR Digital Camera

CCD Camera

Built-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output,

Power

80~240V Wide Range Voltage

Dimension

Instrument Size 38*31*65cm

Optional Accessories

Item No.

Software

Professional forensic image analysis software

A30.1821

LCD Pad Digital Camera

9.7'' LCD Pad Digital Camera, Android System,
See A18.1848-LCD

A59.3503
