400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
Specifications
Place of Origin :
China
Brand Name :
CNOEC, OPTO-EDU
Certification :
CE|Rohs
Model Number :
A14.0202
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Packaging Details :
Carton Packing, For Export Transportation
Delivery Time :
5~20 Days
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Applications :
Laboratory|Research
Drawtube :
Trinocular
Illumination :
Halogen Lamp
product name :
Inverted Optical Microscope
Theory :
Inverted Microscope
Description

400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202

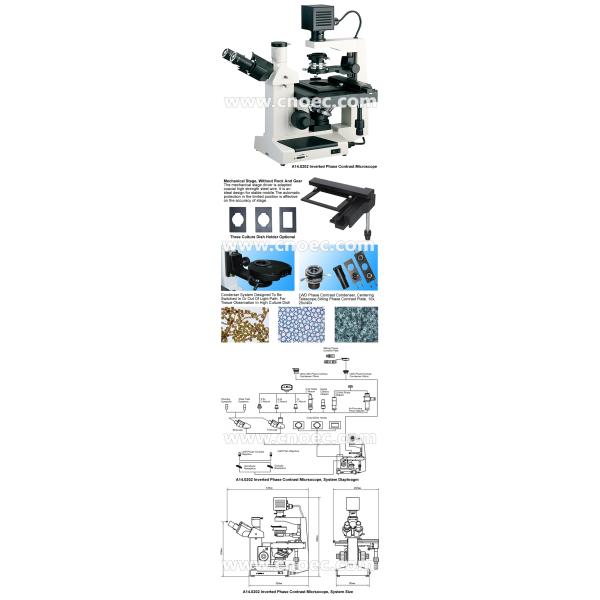

A14.0202 Inverted Phase Contrast Microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance condenser and phase contrast unit. It can observe transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal tools for research of living specimen structure, liquid, deposits and so on.
--Wide Field Eyepiece WF10x/20
--Sliding Phase Contrast Included
--Coaxial Coarse/Fine Focus System, Minimum Division 0.002mm
--Halogen Lamp 6V 20W With Brightness Control

A14.0202 Inverted Phase Contrast Microscope
MagnificationTotal 100~400x
HeadTrinocular Head, 30° Inclined, 100 Ligh Pass For Photography
Eyepiece

WF10x/20mm Wide Field

NosepieceQuadruple
ObjectiveLWD Plan Achromatic Objective
PLL10x/0.25, W.D.8.8mm
PLL 25x/0.40, W.D.4.8mm
PLL 40x/0.60, W.D.3.3mm
LWD Plan Phase Contrast Objective
PLL10x/0.25 PHP2, W.D.8.1mm
Working StageDouble Layer Mechanical Stage 224*208mm, Moving Range 112*79mm
Culture Dish Holder, For Dia.68mm Or 77*29mm Culture Utensil
Culture Dish Holder, For 82*57mm Culture Utensil
Culture Dish Holder, For 128*85mm 96 Holes Culture Utensil
FocusingCoaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.002mm
CondenserLong Working Distance Phase Contrast Condener,
N.A.0.4, Working Distance 50mm, Rack & Pinion Adjustable
Sliding
Phase Contrast		Sliding Phase Plate 10x
Centering Telescope Eyepiece 10x
FilterBlue, Green, Frost Filter
Light SourceKohler Illumination, 6V30W Halogen Lamp, Brightness Adjustable
Optional Accessories
EyepieceWF16x/11mmA51.0203-16A
Dividing Eyepiece 10x/20mm, 0.1mm/DivA51.0205-G10A
Sliding Phase ContrastLWD Plan Phase Contrast ObjectivePLL25x/0.40 PHP2, W.D.4.78mmA5C.0232-25a
PLL40x/0.60 PHP2, W.D.3.32mmA5C.0232-40a
Ultra Long Working Distance Phase Contrast Condener,
N.A.0.4, Working Distance 70mm		A5M.0210-6
Sliding Phase Contrast Plate 25x/40xA5C.0211-5
FilterYellow FilterA56.0209-3
AdapterCCD Adapter 0.5xA55.0202-04
Digital SLR Camera Adapter for Canon EF SeriesA55.0204-02


400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202
