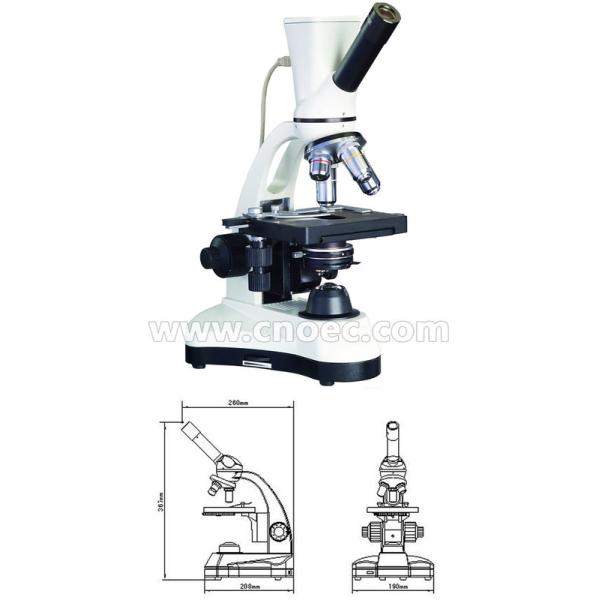

CMOS Biological Digital USB Microscope Monocular A31.0203
CMOS Biological Digital USB Microscope Monocular A31.0203
CMOS Biological Digital USB Microscope Monocular A31.0203
CMOS Biological Digital USB Microscope Monocular A31.0203
Specifications
Place of Origin :
China
Brand Name :
CNOEC, OPTO-EDU
Certification :
CE|Rohs
Model Number :
A31.0203
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Packaging Details :
Carton Packing, For Export Transportation
Delivery Time :
5~20 Days
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Applications :
school
Drawtube :
Monocular
Illumination :
Halogen Lamp|LED
max magnification :
1000X
Theory :
Digital Optical Microscope
Description

CMOS Biological Digital USB Microscope Monocular A31.0203

Description:

A31.0203 Digital Biological Microscopes, newly designed in 2008, is equipped with 1.3M CMOS digital head, achromatic objectives and wide field eyepieces. It can provide clear image, wide field, convenience operation, can be used for medicine agriculture area widely. They are the ideal instruments in medical treatment, teaching demonstration.
--Digital head built-in 1.3M CMOS USB output
--With wide field eyepieces and achromatic objectives, the field of view is widely and clear
--Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm
--High brightness white LED lamp transmission illumination



Specifications:

A31.0203 Digital Biological Microscope
B
C
Digital Head
CMOS 1/2", resolution 300K, USB 1.1, Auto White Balance
Monocular,360° rotatable (Inclination of 45°)
●
CMOS 1/2", resolution 1.3M, USB 2.0, Auto White Balance
Monocular,360° rotatable (Inclination of 45°)
●
Eyepiece
WF10X plan eyepiece, focal length 25mm, field Φ18mm
●
●
Huygens 15X(Φ11mm)
●
●
Objective
Parfocalization distance 35mm
Achromatic 4X/0.10
●
●
Achromatic 10X/0.25
●
●
Achromatic 40X/0.65(Spring)
●
●
Achromatic 100X/1.25(Spring, oil)
●
Nosepiece
Triple nosepiece (Frontward ball bearing outer locating)
●
Quadruple nosepiece (Frontward ball bearing outer locating)
●
Focus System
Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm.
●
●
Stage
Fixed(Size:120mmX120mm, With five holes fixed iris diaphragm)
●
Double layer mechanical, size 135x125mm, moving range 75x35mm
●
Collector
For LED lamp
●
●
Light source
High brightness white LED lamp
●
●
Software
With image analysis software in English version
●
●
Optional Accessory
Item No.
EyepieceWide field WF16X(Φ11mm)A51.0203-16A
Point 10X(Φ18mm)A51.0204
StageFixed(Size:120mmX120mm, With single lens and iris diaphragm)A54.0205-01
Fixed(Size:120mmX120mm, with slide moving holder and Abbe condenser)A54.0205-04
FilterBlue filterA56.0209-1
Green filterA56.0209-2
Yellow filter

A56.0209-3

Frosted filterA56.0209-4
CollectorFor Fluorescent and Halogen lampA56.0208-2
For Incandescent lampA56.0208-3
Light sourceHigh brightness white LED lamp With adapterA56.0204-11
High brightness white LED lamp With adapter and charge batteriesA56.0204-12
Halogen lamp 12V 20WA56.0201-B
Fluorescent lamp 110V/220V, 5W Can be chooseA56.0202-6
Incandescent lamp,220V/110V, 20WCan be chooseA56.0203-4
Adapter
LED For LED illumination		Input: 230V～50/60HZ Output: 9V 500mAA56.0205-1
Input: 110V～50/60HZ Output: 9V 500mAA56.0205-2
