A16.0907-BL Fluorescent Microscope

Head

Binocular, 30° Inclined, Interpupillary Distance 50-75mm

Eyepiece

PL10x/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree

Objective

Infinity Plan Achromatic 10x/0.25, 20x/0.50, 40x/0.65, 100x/1.25

Nosepiece

Backward Quadruple

Focusing

Low Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation
and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm

Working Stage

Double Layer Mechanical Stage 150*140mm, Moving Range 76*50mm, Precision 0.1mm

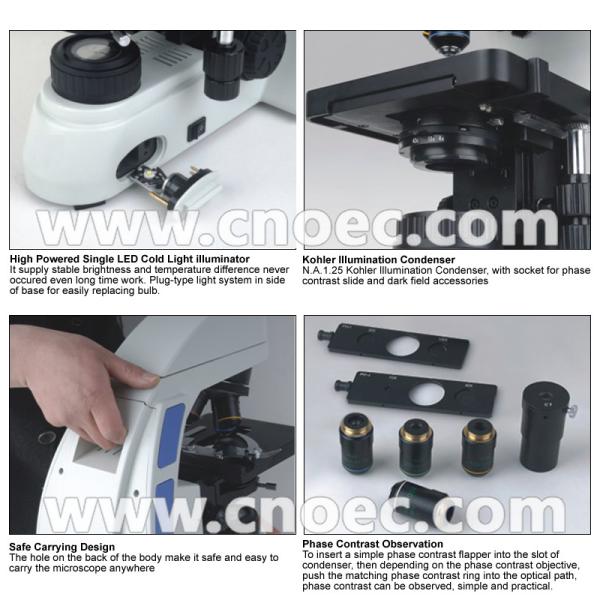

Condenser

Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed

Filter

Blue, Dia.45

Light Source

3W LED, Intensity Adjustable, Center Fixed

Fluorescent

LED Fluorescent Moudle, with Brightness Adjust Knob, Bright Field Fluorescent
Switch Knob, LED Wave Length 470, Band B1

Power

90~240V Wide Range Power Supply

A16.0907-B Fluorescent Microscope Optional Accessories

Head

Trinocular, 30° Inclined, Interpupillary Distance 50-75mm

A53.0907-T30R

Eyepiece

PL10x/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree

A51.0904-1022T

Nosepiece

Backward Quintuple

A54.0930-BS5

Fluorescent

LED Fluorescent Moudle, with Brightness Adjust Knob, Bright Field Fluorescent
Switch Knob,LED Wave Length 560, Band G1

A5F.0912-G1

LED Fluorescent Moudle, with Brightness Adjust Knob, Bright Field Fluorescent
Switch Knob,LED Wave Length 365, Band UV2

A5F.0912-UV2

LED Fluorescent Moudle, with Brightness Adjust Knob, Bright Field Fluorescent
Switch Knob,LED Wave Length 455, Band B4
Speically Used for Tuberculosis Inspection

A5F.0912-B4

Adapter

C-Mount 1.0x, Focus Adjustable

A55.0925-1

C-Mount 0.5x, Focus Adjustable , for 1/2 CCD

A55.0925-1/2

C-Mount 0.35x, Focus Adjustable, for 1/3 CCD

A55.0925-1/3

Photo Adapter with PK or MD mount, with 3.2x Photo Eyepiece

A55.0901-1

Professional Photo C Mount, with Photo Eyepiece

A55.0910
