3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source
3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source
3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source
3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source
3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source
3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A34.4904 - H2
Certification :
CE|Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Optical Magnification :
0.7-5.0x
Output :
Dual Output : USB 3.5M, HDMI 1080p/30fps
Light Source :
Dual Coaxial LED Light Source
Focus :
Focusing Knob On Top
Theory :
Digital Optical Microscope
Description

3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source


Introduction


A34.4904-H2 Microscope combines traditional optical microscope with digital imaging system. 3.5 million pixel HD color image sensor makes progressive scanning to realize high-definition imaging and color rendition display, low noisy point and High-speed dynamic image without trailing smear. A34.4904-H2 adopts the newest 0.7-5X zoom camera for clearer image, larger depth of field, High-speed 30 frame/second, zero trailing smear, HD detail display, high-quality image display and built-in SD card to support photography, recording and playback.

Features

1. Fresh structure to display the best resolution and real color image.
2. Large depth of field, wide field of view, long operation distance and real vertical optical path.
3. Wide zoom range for different sample size.
4. Dual output HDMI&USB to support photograph/record and real time storage of SD card image, with USB 3.5M, HDMI 1080p/30fps.
5. Avoid tedious adjustment work and directly change the operation distance through eye-height adjustment ring (eye height effective value BFL: 11.6~36mm) and expand the original magnification ratio of the microscope.
6. Exclusive external coaxial lighting source without reflection to control light brightness conveniently.
7. HDMI high definition output, high-speed 30 frame without trailing smear, clear and fluent image.

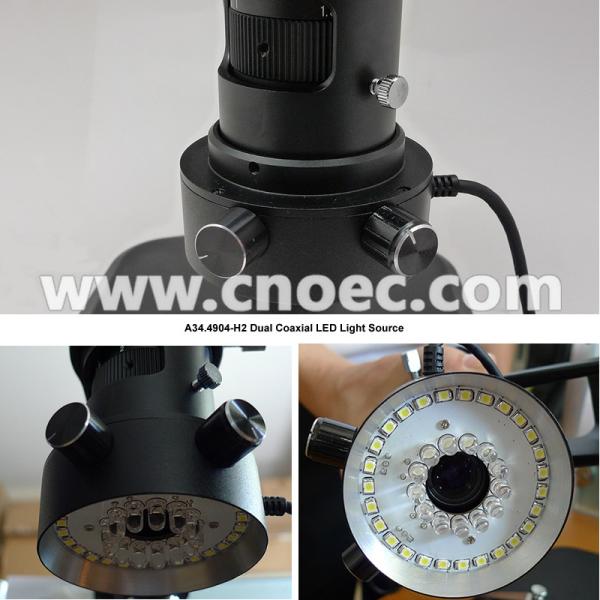

8. Dual coaxial LED light source--inner fixed coaxial LED light and outer brightness adjustable coaxial LED light.Turnning on Inner fixed coaxial LED light to observe ordinary objects,and the outer brightness adjustable coaxial LED light for metal objects can eliminate reflective effect.
9. Focusing knob on top, supply large distance manual focusing range.

Specification

A34.4904-H2 HDMI/USB Digital Microscope

Hardware Configuration
Output Dual Output : USB 3.5M, HDMI 1080p/30fps
Focus Focusing Knob On Top, Supply Large Distance Manual Focusing Range
Dual Coaxial LED Light Source Inner Fixed Coaxial LED Light, Outer Brightness Adjustable Coaxial LED Light
Image Sensor Aptina AR0330 CMOS Sensor
Scan Mode Scan Line By Line
Maximum Resolution
 3.5M, 2304*1536 (3,538,944 Pixels)
Sensor Optical Format 1/3'' (5.07mm(H)*3.38mm(V), Diagonal 6.09mm)
Pixel Size 2.2μm*2.2μm
Dynamic Range
69.5dB
SNR(Signal Noise Ratio) 39dB
Spectral Characteristics
 380-650nm
HDMI Output Resolution 1920*1080I60,1920*1080P30,1280*720P60,640*480P60
Video Mode Resolution
 1920*1080@30FPS, 1280*720P@30FPS, 800*480@30FPS
Snapshot Mode Resolution 2304*1536 ,2304*1296,1920*1080,1280*720,800*480
Exposure Capability Real-time Auto, Single Auto, Manual Adjustment
White Balance Real-time Auto, Single Auto, Manual Adjustment
Software Interface DirectShow
Capture Modes

Picture Resolution:22304*1536 ,2304*1296,1920*1080,1280*720,800*480 Format:JPG
Video Resolution:1920*1080@30FPS, 1280*720P@30FPS, 800*480@30FPS Format:MOV
Record Route The Local And TF Card(Maximum Support 64G)
Optical Parameters
Optical Magnification 0.7-5.0x
Total Magnification 6-365x
Object Distance(mm)
24-252(When In 0.7x)
27-155(When In 1x)
81-117(When In 2x)
94-111(When In 3x)
101-110(When In 4x)
103-109(When In 5x)
Focusing Bracket Adjustment Range(mm)
 230mm
Focusing Hand Wheel Height Range(mm) 50mm
Field Of View(mm) 0.5-10(When In 0.7x) Adjustable
0.5-0.4.5(When In 1x) Adjustable
0.4-0.6(When In 2x) Adjustable
0.3(When In 3x) Adjustable
0.2(When In 4x) Adjustable
0.1(When In 5x) Adjustable
Resolution(um)
16.78(When In 0.7x)
11.18(When In 1x)
8.39(When In 2x)
6.10(When In 3x)
4.79(When In 4x)
4.79(When In 5x)
Observation Range 29.6*16.6mm~2.1*1.2mm Continuous Adjustment
Software Environment
USB Mode
 Operation System Microsoft® Windows® XP/ 7 / 8 /8.1/10(32 & 64 Bit)
Computer Configuration
CPU: Equal Or More Than The Second Generation Intel Core 2.8GHz
Memory :2G Or More
USB Port:USB2.0 High Speed Port Or Compatible Port
Displayer :Suggest 17 Inches Or Larger
HDMI Mode
Displayer: Recommend 16:9 , At Least 1080P Full HD Displayer
Power Supply: DC5.0V Power Adapter, Electronic Current 500mA Or Higher
Operating Environment
Operating Temperature 0℃~ 40℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH

3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source

3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source

3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source

3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source
