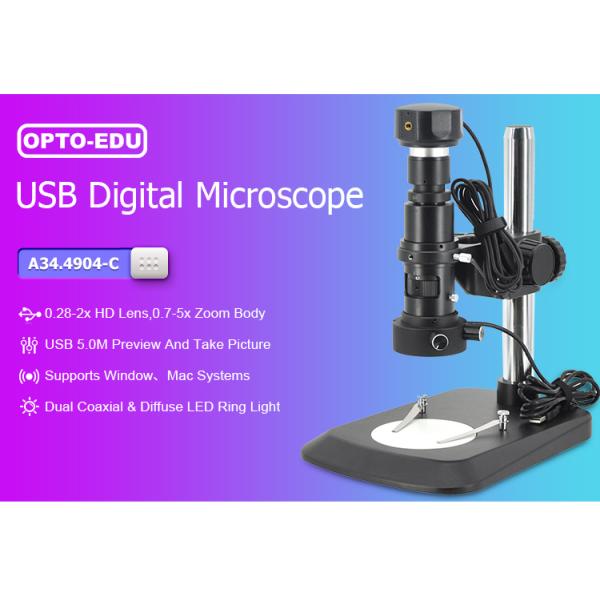

A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope
A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope
A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope
A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope
A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope
A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope
A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope
A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A34.4904 - C
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Dual Output: :
USB 5.0M
Zoom Lens: :
0.7-5.0x
Working Stage :
Working Stage
Focusing :
Coarse
Light Source :
Dual Coaxial LED
Power Supply :
Power Supply
Resolution :
5.0M
Description
A34.4904-C USB Digital Microscope
Hardware Configuration
Image Sensor Colorful
Expose Mode Rolling Shutter
Maximum Resolution 2592 x 1944 (5,038,848 pixels)
Sensor Optical Format 1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
Pixel Size 2.2μm*2.2μm
Dynamic Range 70.1dB
ADC 12-bit, 8-Bit R.G.B to PC
SNR(Signal Noise Ratio) 38.1dB
Spectral Characteristics 380-650nm
Binning Modes 1 x 1, 2 x 2
Exposure Capability Real-time auto, Single auto, Manual Adjustment
White Balance Real-time auto, Single auto, Manual Adjustment
Software Interface DirectShow
Preview Modes 10FPS@2592x1944
15FPS@1920x1080,1600x1200
40FPS@1280x960, 1280x720, 1024x768, 800x600, 640x480
Record Format Snapshot
Picture Format:JPG,BMP,PNG,TIFF,PDF
Resolution:2592x1944, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480
Record
Video Format:MJPG format AVI file
Resolution:1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480
Optical Parameters
Lens Optical Magnification 0.28X~2X
Lens Optical Resolution(um) 16.78 (When in 0.7)
11.18 (When in 1)
8.39 (When in 2)
6.10 (When in 3)
4.79 (When in 4)
4.79 (When in 5)
Working distance(mm) 88.5
Depth of field(mm) 5 (When in 0.7)
3.2 (When in 1)
0.9 (When in 2)
0.47 (When in 3)
0.34 (When in 4)
0.27 (When in 5)
Observation range (mm) 20.4 x 15.3~2.86 x 2.15 Continuous Adjustment (L x D)
Comprehensive resolution (when display on 21 inch 16:9 screen) 17～121.5 Continuous zoom,68～486 Continuous zoom(this data is based on preview resolution is 640x480 with decompression zoom and the picture is display to adapt to screen) 17.0 (When in 0.7)
23.0 (When in 1)
47.1 (When in 2)
72.2 (When in 3)
96.5 (When in 4)
121.5(When in 5)
Focusing hand wheel height range(mm) 230
Focusing bracket adjustment range(mm) 50
Software Environment
Operation System Microsoft®Windows®XP/7/8/8.1/10(32&64bit)
Computer Configuration CPU: Equal Or More Than The Second Generation Intel Core 2.8GHz
Memory: 2G Or More
USB Port: USB 2.0 High Speed Port Or Compatible Port
Displayer: Suggest 17 Inches Or Larger
Operating Environment
Operating temperature 0℃~40℃
Storage temperature -20℃~60℃
Operating Humidity 30~60%RH
Storage Humidity 10~80%RH
Charge Interface Direct-current 5V. Power Supply By USB Interface
