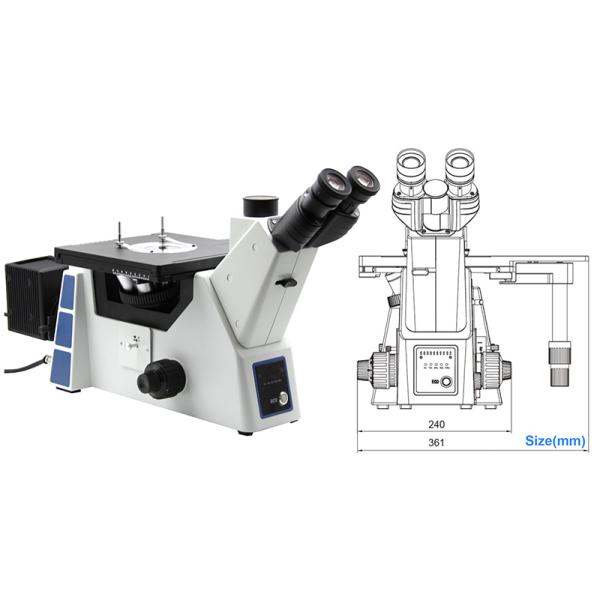

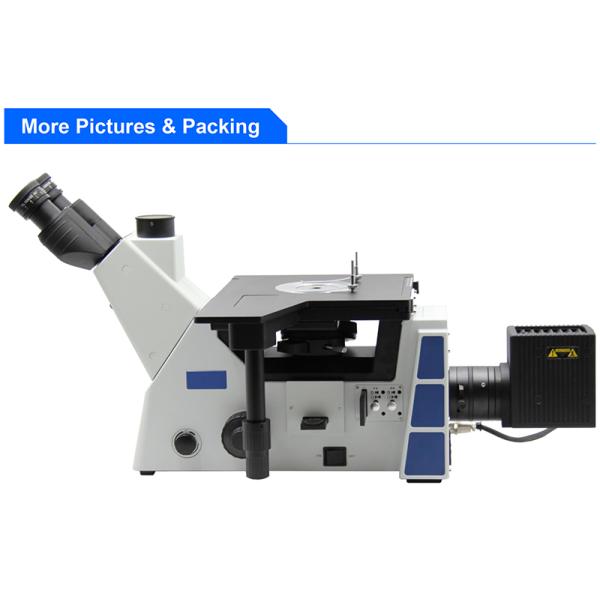

OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
Specifications
Place of Origin :
China
Brand Name :
CNOEC, OPTO-EDU
Certification :
CE, Rohs
Model Number :
A13.0912
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Packaging Details :
Carton Packing, For Export Transportation
Delivery Time :
5~20 Days
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Optical :
Infinity Color Corrrected Optical System, BF,DF,DIC,PL,ECO, Semi-APO
Frame :
One-piece Construction,With Filter Slot & Polarizing Slot
Head :
Trinocular Head, Split Ratio 100:0 or 0:100, 45° Inclined, IPD 50-75mm
Eyepiece :
Plan WF10x/22mm, Diopter Adjustable, Reticle Attachable,High Eye-point
Field :
Bright & Dark Field, With BD Shifter
Focus :
Coaxial Coarse & Fine Focusing System With Adjustable Tension
Description
  • Professional Inverted Metallurgical Microscope With Reflect Halogen 12V100W Light
  • Infinity Plan LWD BF/DF DIC Objective 5x10x20x Semi-APO FL50x,100x
  • Quintuple Nosepice With DIC Slot, DIC Slider Optional
  • 3 Layers Mechanical Stage 240x250mm/ 50x50mm, Coaxial Coarse & Fine Focusing
  • Polarizer & 360° Analyzer, With Brightness Indicator & ECO Function
  • A13.0912-A Inverted Metallurgical Microscope, BF,DF,DIC,PL,ECO, Semi-APO
    Optical Infinity Color Corrrected Optical System, BF,DF,DIC,PL,ECO, Semi-APO
    Frame One-piece Construction,With Filter Slot & Polarizing Slot
    Head Trinocular Head, Split Ratio 100:0 or 0:100, 45° Inclined, IPD 50-75mm
    Eyepiece Plan WF10x/22mm, Diopter Adjustable, Reticle Attachable,High Eye-point
    Field Bright & Dark Field, With BD Shifter
    Objective Infinity LWD BD Plan Achromatic Metallurgical DIC-5x/0.15 WD11mm A5M.0939-5
    Infinity LWD BD Plan Achromatic Metallurgical DIC-10x/0.3 WD9.5mm A5M.0939-10
    Infinity LWD BD Plan Achromatic Metallurgical DIC-20x/0.45 WD3.4mm A5M.0939-20
    Infinity LWD BD Plan Achromatic Metallurgical Semi-APO FL50x/0.55 WD7.5mm A5M.0940-50
    Focus Coaxial Coarse & Fine Focusing System With Adjustable Tension, Coarse Range 9mm (6.5mm up & 2.5mm down), Fine Precision 2μm
    Nosepiece Coded BD Quintuple Nosepiece With DIC Slot
    Stage Right Hand Controls, Low Positioned, Three-Layer Mechanical Stage, Size 240x250mm, Moving Range 50x50mm, Bothway Linear Guide Rail
    Metal Specimen Holder (Dia. 25)
    Light Source Reflected Halogen Lamp 12V100W
    Light Indicator
    Brightness Adjustable
    ECO Infared Induction System (Auto on/off)
    External Wide Voltage Transformer, 100V-240V Input, 12V13.4A Output
    BF/DF BF/DF Shifter Lever on Left Side of Main Body 　
    Polarzing Polarizer & 360° Analyzer
    Optional Accessories
    Eyepiece Plan WF15X/16mm, Diopter Adjustable, High Eye-point A51.0904-1516T
    Objective Infinity LWD BD Plan Achromatic Metallurgical Semi-APO FL100x/0.8 WD2.1mm A5M.0940-100
    Adapter 0.35x C-Mount A55.0934-35
    0.5x C-Mount A55.0934-05
    0.65x C-Mount A55.0934-65
    1x C-Mount A55.0934-1
    DIC DIC Slider A5M.0955
  • OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
  • OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
  • OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
  • OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
  • OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
  • OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
  • OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
  • OPTO-EDU A13.0912 Inverted Metallurgical Microscope BF DF DIC PL ECO Semi-APO
