Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A59.4972
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Physical Resolution :
12.0MP (20.0MP Optional)
Image Sensor :
Sony IMX412 CMOS
Exposure Mode :
Rolling Shutter
MaximumResolution :
4000×3000 (12,000,000Pixels)
ISO Sensitivity :
Equivalent to 100-12800
Sensor Size :
1/2.3”
Pixel Size :
1.55μm×1.55μm
Spectral Response :
380-650nm
Exposure Capability :
Real-time auto and manual adjustment
Exposure Time :
10μs-333ms
Description

Digital 5G Usb Microscope Camera OPTO EDU A59.4972

A59.4972 5G WIFI+4K HDMI+USB+LAN Digital Camera, 12.0M, C-Mount, USB/WIFI Measuring
Output USB Output, PC Software
HDMI Output
5G WIFI Output, App Software
Ehternet Output, LAN Port
Physical Resolution 12.0MP
Image Sensor Sony IMX412 CMOS
Exposure Mode Rolling Shutter
MaximumResolution 4000×3000 (12,000,000Pixels)
ISO Sensitivity Equivalent to 100-12800
Sensor Size 1/2.3”
Pixel Size 1.55μm×1.55μm
Spectral Response 380-650nm
Exposure Capability Real-time auto and manual adjustment
Exposure Time 10μs-333ms
White Balance Real-time auto and manual RB adjustment
Preview Resolution 4000×3000@30fps,3840×2160@30fps
Power Supply DC 5V 2A
Wireless Protocol 5G WiFi IEEE802.11ac
A/D Convertsion Bit Depth 12bit
Software And APP Windows Software:KoPa Capture Pro, App for mobiles:KoPa WiFi Lab
Applicable To Olympus Nikon Leica Zeiss
Dovetail HD1210-W HD1211-W HW200(L) HW200Z
Optional 20.MP
Note: When ordering, the model need to be listed at the same time. For example, when ordering a 12.0MP camera, which needs to be installed on the Olympus trinocular dovetail slot, the corresponding order list: number: model: HD1210-W

Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
APP of Auto Real Time Depth of Field Fusion & Auto Focus
The world's first digital camera with a built-in advanced algorithm, which can achieve real-time depth of field fusion and auto focus. During the manual focusing process, the camera will automatically capture the sharply focused area and synthesize it into a clear image in real time. Through this algorithm, for those samples with different thicknesses or unevenness, the camera can also easily obtain full-frame images with clear focus through auto-focus and depth-of-field fusion.
This function supports mobile phone and tablet APP. In the APP, by sliding the screen left and right, you can easily switch between the original image, the composite image, or the comparison image between the two. Every time you take a photo, the camera will simultaneously shoot and save the original image and the composite image for later recall.
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
One-stop Digitalize Optical Microscopes
The camera and large FOV optical adapter are skillfully integrated, plug & play, easy using, no need maintain, no more worrying about adapter matching to different microscopes
Cutting-edge Image Codec Technology
Using H264 codec, the camera color is accurately restored. Compared with the traditional MJPEG, it has the characteristics of low bit rate, low noise, transparent picture quality, and high frame rate of full resolution preview ( for example , it can realize up to 30fps at 4000x3000 preview)
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972

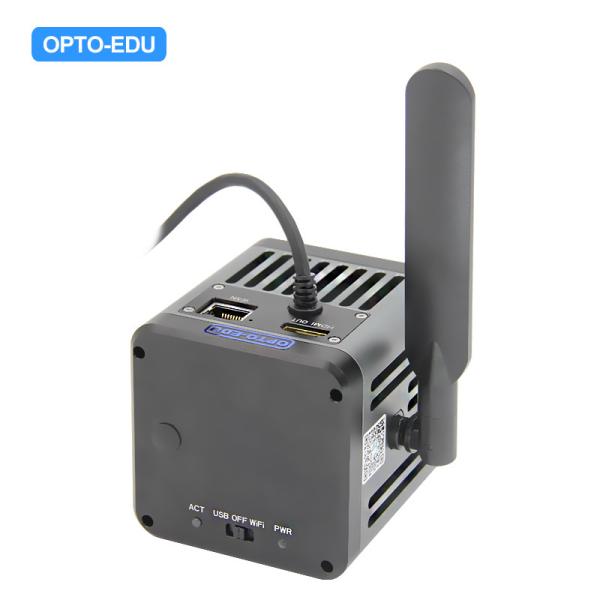

① 5G WiFi Antenna Enhance The 5G WiFi Signal Transmission, To Achieve Wireless Connection To The Camera Forimage Acquisition.

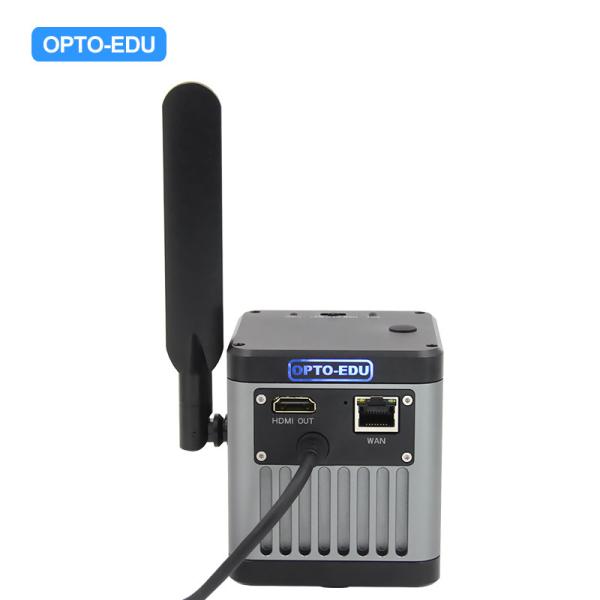

② HDMI Output Interface
(Only For 12.0MP Camera)		 Through HDMl Cable, Connect With External Monitor With HDMl Interface To Realize Video, Signal Transmission,Etc.
③ WAN Network Interface Turn To WiFi: lt Can Be Connected To The Router And Access To The Local Area Network, Ao That Windows PC, Smartphones And Tablets In The Local Area Network Can Share The Microscopicscreen; It Can Also Be Directly Connected To The Internet.
④ USB Output / Power Supply Turn To USB: Connects To Windows PC For Data Transfer, And The Windows PC Side Can Imageacquisition Through Software.
Turn To WiFi: Connects To Adapter To Enable Powering The Camera, And Wireless Devices Canconnect To The Camera WiFi To Image Acquisition.
⑤ PWR (Power Indicator) Turn To OFF, The Indicator Light Is Red.
Turn To USB Or WiFi, The Indicator Light Is Green.
⑥ USB / OFF / WiFi
Working Mode Switching		 USB: When The USB Cable Connected To The Computer, It Can Image Acquisition Through Thecomputer Software.
OFF: Turn Off The Power, The Camera Stops Working On This Time.
WiFi: The Wireless Devices Connect To The Camera WiFi To Image Acquisition.
⑦ ACT Indicator: Turn To WiFi, The Indicator Light Is Blue.
Turn To Other Gears, The Indicator Light Does Not Light Up.
⑧ Easy Focus Hole (Only For Dovetail Mount Model) Internal Filament Focus Structure Is Used To Adjust The 0.43X Field Lens Of The Camera To Achievepar-focal With Electronic Imaging And Observation Under Eyepiece.
⑨ Dovetail Mount Connect With The Dovetail Slot On The Trinocular Microscope.

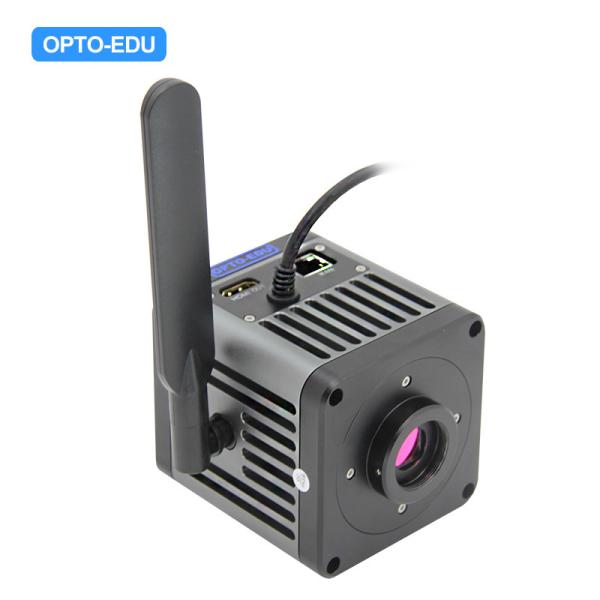

⑩ Standard C -mount Connect With Trinocular Microscope Which Has C-mount.
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
Digital 5G Usb Microscope Camera OPTO EDU A59.4972
