OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light
OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light
OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light
OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light
OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light
OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light
OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light
OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light
OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light
OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A13.3601
Certification :
CE,
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :

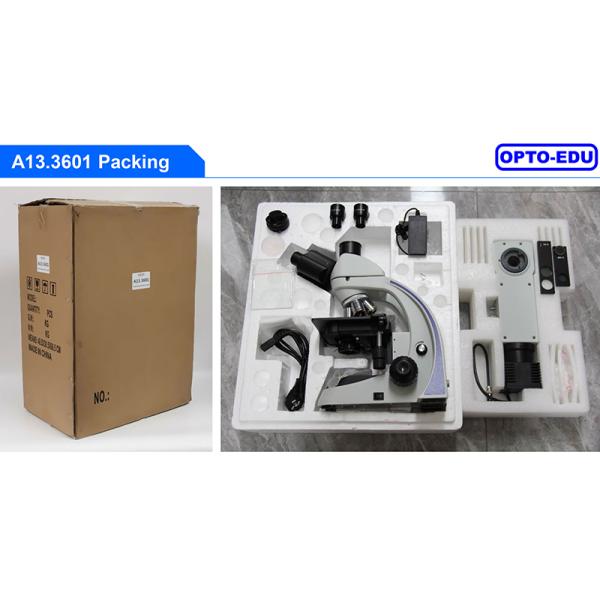

Carton Packing, For Export Transportation
Optical System :
Infinity Color Corrected Optical System
Viewing Head :
30° Inclined, Interpupillary Distance: 54mm~75mm, Left Diopter ±5 Adjustable
Eyepiece :
High Eye-point Wide Field Eyepiece WF10x/20mm
Objective :
Infinity Large Working Distance Plan Achromatic Metallurgical Objective
Nosepiece :
Inward Quadruple
Working Stage :
Double Layer Mechanical Stage
Description

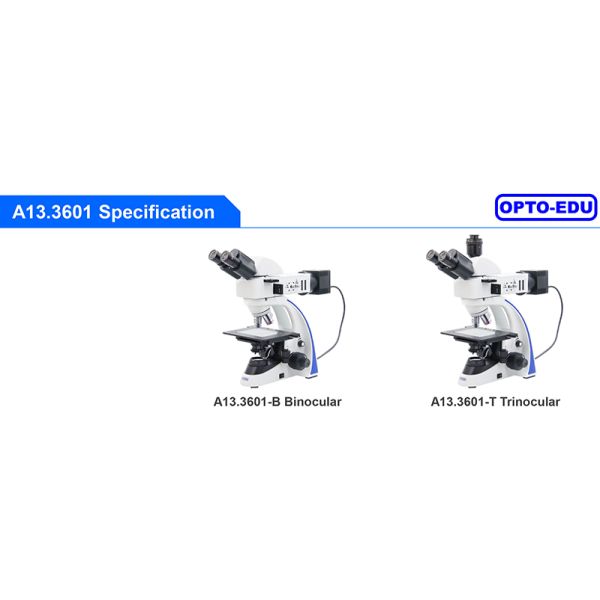

A13.3601 Metallurgical Microscope, Transmit & Reflect Light -B -T Cata. No.
Optical System Infinity Color Corrected Optical System ● ● 　

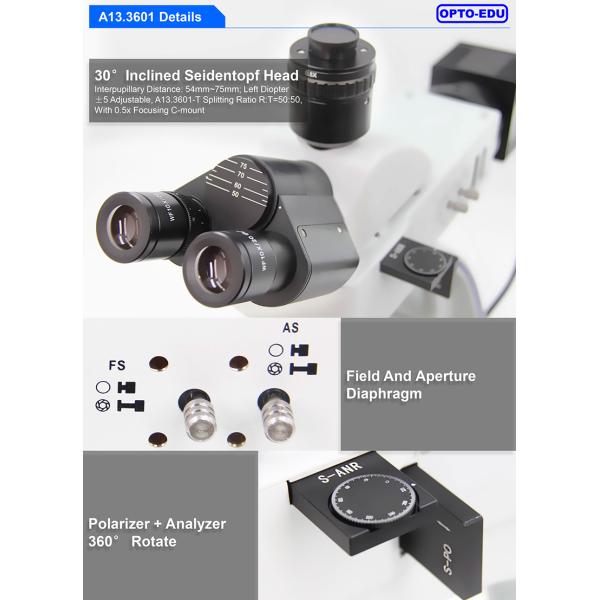

Viewing Head Gemel Binocular Head, 30° Inclined, Interpupillary Distance: 54mm~75mm, Left Diopter ±5 Adjustable ● 　 　
Gemel Trinocular Head, 30° Inclined, Interpupillary Distance: 54mm~75mm, Left Diopter ±5 Adjustable,
Splitting Ratio R:T=50:50, With 0.5x Focusing C-mount		 　 ● 　
Eyepiece High Eye-point Wide Field Eyepiece WF10x/20mm ● ● 　

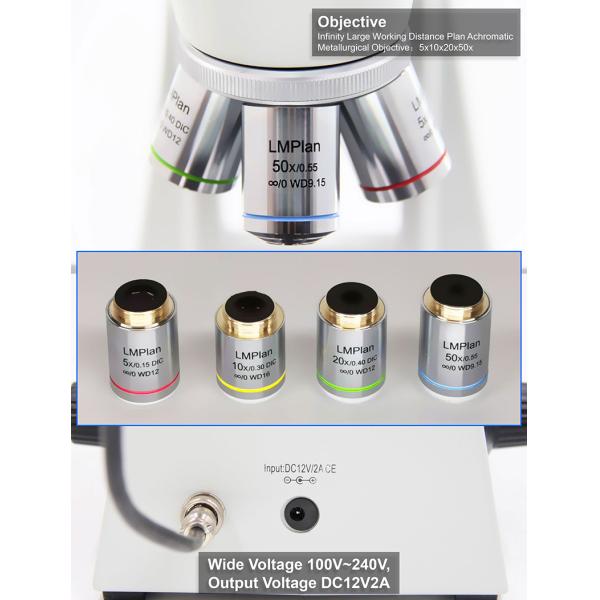

Infinity Large Working Distance Plan Achromatic Metallurgical Objective 5x N.A. 0.15 W.D.12 ● ● A5D.3633-5
10x N.A. 0.3 W.D.16 ● ● A5D.3633-10
20x N.A. 0.4 W.D.12 ● ● A5D.3633-20
50x N.A. 0.55 W.D.9.15 ● ● A5D.3633-50
100x N.A. 0.8 W.D.2.1 ○ ○ A5D.3633-100
Nosepiece Inward Quadruple ● ● 　

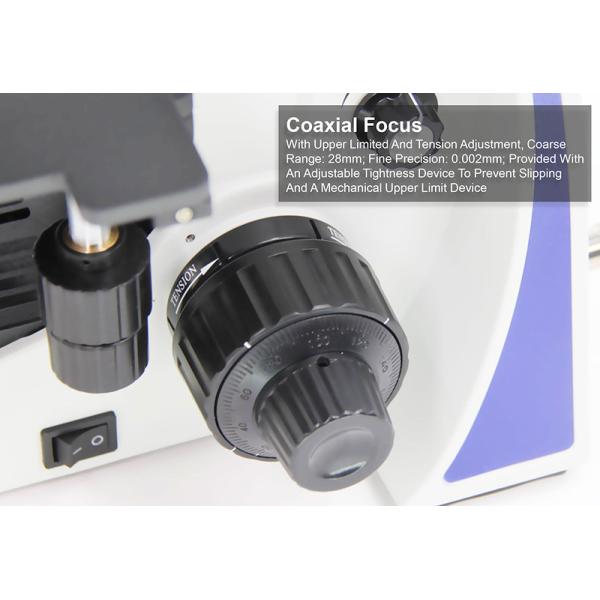

Frame Transmitted & Reflected Frame With Glass Plate, Coaxial Focus System With Tension Adjustment And Up-limited Device, Coarse Range: 23mm, Fine Precision: 0.002mm. ● ● 　

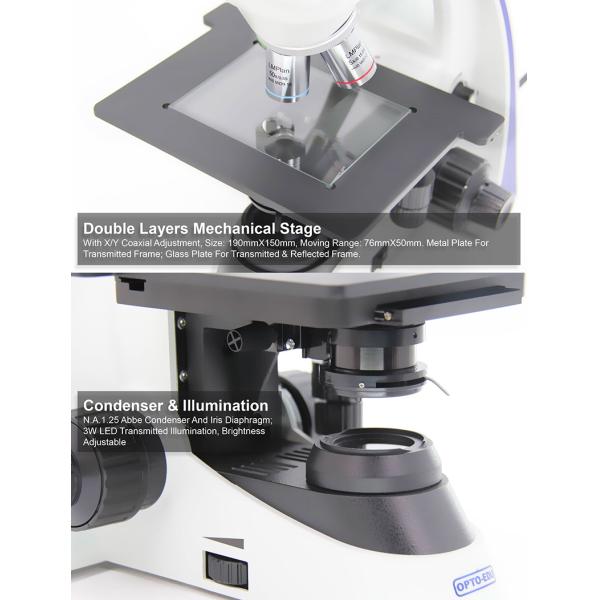

Working Stage Double Layer Mechanical Stage With X/Y Coaxial Adjustment, Size: 190mmX150mm, Moving Range: 76mmX50mm, Metal Plate For Transmitted Frame; Glass Plate For Transmitted & Reflected Frame. ● ● 　
Reflected Illumination Reflected Lamp-house With Single 5W LED, Warm White Color. Koehler Illuminator With Center Adjustable Field And Aperture Diaphragm. External Wide-range Adapter, Input Voltage 100V-240V_AC50/60Hz, Output Voltage DC12V2A. ● ● 　
Transmitted Illumination Single 3W LED, White Color, With N.A.1.25 Abbe Condenser For Transmitted Light, With Center Preset Aperture Iris Diaphragm. ● ● 　
Polarizing Polariser And Analyzer. Analyzer Is Adjustable With 360° Rotation. ● ● 　
C-Mount 0.35x, Focus Adjustable ○ ○ A55.3623-35
0.5x, Focus Adjustable ● ● A55.3623-05
1.0x, Focus Adjustable ○ ○ A55.3623-10
