Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A16.0960
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Eyepiece :
High eyepoint plan eyepiece PL10X/22mm,diopter adjustment
Nosepiece :
Motorized bright filed sextuple nosepiece with DIC slot.
Objective :
LWD Infinity Plan Semi-APO Positive Phase Contrast Objective
Working Stage :
Manual mechanical stage, 300mm (X) x 240mm (Y),
Focusing :
Motorized coarse & fine coaxial focusing
Condenser :
Mortorized LWD unviersal 7 positions Condenser with N.A.0.5
Description
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser

▶ Elevation Adjustable Viewing Head

The A14.0960/A16.0960 is equipped with a 20-45° adjustable binocular viewing head, which can raise the eye point by 78mm

(65mm interpupillary distance) as required. It can be observed easily and quickly even in a standing state, which

is effective avoiding fatigue of eyes and limbs.
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser

▶ Integrated Button

A14.0960/A16.0960 retains the traditional coarse and fine adjustment mode, cancels the gear mechanism, integrates electric

control technology and realizes manual and automatic integration. The brightness, objectives, attenuator turntable

and fluorescent turntable can be quickly switched or rotated through the corresponding buttons on the button

panels on both sides. AF one-key auto focus can quickly adjust the Z-axis height according to the real-time image,

and eliminates the need for fine-adjusting steps and improves work efficiency.

▶ Low-position Platform Handwheel

The low-position platform handwheel can be rotated 360° ,which can effectively reduce the hand fatigue caused by long-term operation and is ergonomic and improves the convenience of operation.
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser

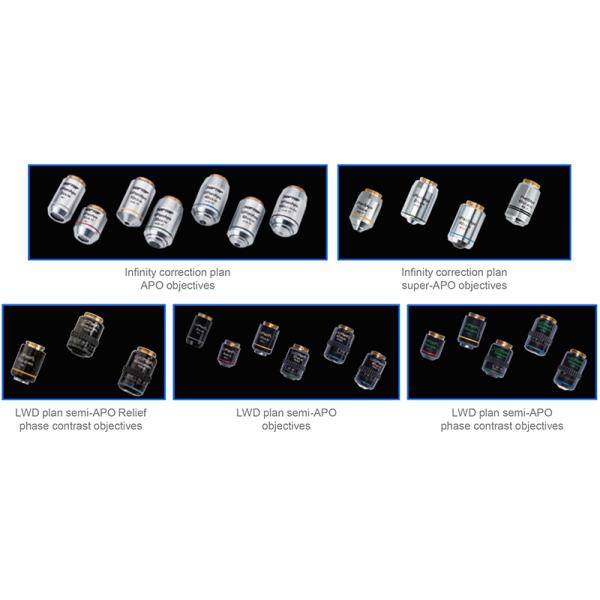

▶ LWD Semi-APO Series Objectives

Full series of LWD semi-APO objectives were developed for cell culture. The objectives with correction ring have significant advantage for the observation of glass substrates and culture vessels with different thickness, and achieves accurate focusing by correcting the cover glass thickness.
　 　 BF DF DIC POL FL PH RPC 　
LWD Infinity Plan Positive Phase Contrast Objective 4X/0.13, WD=17mm, √ 　 　 √ √ √ 　 A5C.0960-4
10X/0.30, WD=8.8mm, √ 　 √ √ √ √ 　 A5C.0960-10
20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness √ √ √ √ √ √ 　 A5C.0960-20
40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness √ √ √ √ √ √ 　 A5C.0960-40
60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness √ √ √ √ √ √ 　 A5C.0960-60
LWD Infinity PlanSemi-APO Objective 4X/0.13, WD=17mm, √ 　 　 √ √ 　 　 A5F.0961-4
10X/0.30, WD=8.8mm, √ 　 √ √ √ 　 　 A5F.0961-10
20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness √ √ √ √ √ 　 　 A5F.0961-20
40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness √ √ √ √ √ 　 　 A5F.0961-40
60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness √ √ √ √ √ 　 　 A5F.0961-60
Infinity Plan APOchromatic Objective 4X/0.16, WD=12.8mm √ 　 　 √ √ 　 　 A5F.0962-4
10X/0.40, WD=3.2mm √ √ √ √ √ 　 　 A5F.0962-10
20X/0.75, WD=0.6mm √ √ √ √ √ 　 　 A5F.0962-20
40X/0.95, WD=0.15mm √ 　 √ √ √ 　 　 A5F.0962-40
60X/0.90, WD=0.26mm √ 　 √ √ √ 　 　 A5F.0962-60
60X/1.25, WD=0.14mm Oil √ 　 　 √ √ 　 　 A5F.0962-60S
100X/1.35, WD=0.13mm Oil √ 　 　 √ √ 　 　 A5F.0962-100
Infinity Plan Super APO Objective 10X/0.14, WD=3.1mm √ 　 　 √ √ 　 　 A5F.0963-10
20X/0.80, WD=0.6mm √ 　 　 √ √ 　 　 A5F.0963-20
40X/0.95, WD=0.18mm √ 　 　 √ √ 　 　 A5F.0963-40
60X/1.42, WD=0.17mm Oil √ 　 　 √ √ 　 　 A5F.0963-60
100X/1.45, WD=0.14mm Oil (Under development) √ 　 　 √ √ 　 　 A5F.0963-100
LWD Infinity Plan Semi-APO Relief Hoffman Phase Contrast Objectives 10X/0.30, WD=8.8mm, √ √ √ √ √ 　 √ A5C.0965-10
20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness √ √ √ √ √ 　 √ A5C.0965-20
40X/0.45, WD=2.85~4.05mm, 0~2mm Cover glass thickness √ √ √ √ √ 　 √ A5C.0965-40
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
A14.0960 Research Level Inverted Biological Microscope
A16.0960 Research Level Inverted Fluorescent Microscope		 A14.0960 A16.0960
Function BF, Bright Field 　 ● ●
PH, Phase Contrast 　 ● ●
POL, Polarizing 　 o o
DIC, Differential Interfied Contrast 　 o o
Relief Hoffoman Phase Contrast 　 o o
Head 20º-45º tilting Binocular head, inverted image,interpupillary distance: 50mm~76mm A53.0960 ● ●
Eyepiece High eyepoint plan eyepiece PL10X/22mm,diopter adjustment A51.0904-1022T ●● ●●
Nosepiece Motorized bright filed sextuple nosepiece with DIC slot. 　 ● ●
LWD Infinity Plan
Semi-APO
Positive Phase Contrast Objective		 4X/0.13, WD=17mm, A5C.0960-4 ● ●
10X/0.30, WD=8.8mm, A5C.0960-10 ● ●
20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness A5C.0960-20 ● ●
40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness A5C.0960-40 ● ●
60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness A5C.0960-60 ● ●
LWD Infinity Plan
Semi-APO
Objective		 4X/0.13, WD=17mm, A5F.0961-4 o o
10X/0.30, WD=8.8mm, A5F.0961-10 o o
20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness A5F.0961-20 o o
40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness A5F.0961-40 o o
60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness A5F.0961-60 o o
Infinity Plan
APOchromatic
Objective		 4X/0.16, WD=12.8mm A5F.0962-4 o o
10X/0.40, WD=3.2mm A5F.0962-10 o o
20X/0.75, WD=0.6mm A5F.0962-20 o o
40X/0.95, WD=0.15mm A5F.0962-40 o o
60X/0.90, WD=0.26mm A5F.0962-60 o o
60X/1.25, WD=0.14mm Oil A5F.0962-60S o o
100X/1.35, WD=0.13mm Oil A5F.0962-100 o o
Infinity Plan
Super APO
Objective		 10X/0.14, WD=3.1mm A5F.0963-10 o o
20X/0.80, WD=0.6mm A5F.0963-20 o o
40X/0.95, WD=0.18mm A5F.0963-40 o o
60X/1.42, WD=0.17mm Oil A5F.0963-60 o o
100X/1.45, WD=0.14mm Oil (Under development) A5F.0963-100 o o
Working Stage Manual mechanical stage, 300mm (X) × 240mm (Y), moving range is 135mm (X) × 85mm (Y),stage thickness is 30mm. Lower universal right side handle. With lock function. During locking, moving range 50mm (X) × 50mm (Y). It can use with 35mm petri dish holder, culture flask holder, sliced holder, Φ110mm replaceable disc stage with clips. A54.0960 ● ●
Stage: Motorized, 260*153mm with working range 110*75mm, The maximum speed is 3mm/s, the repeat positioning accuracy is ±1um, and it can be adapted to petri dish and slice observation A54.0963 o o
Marzhauser
Motorized Stage		 Marzhauser Motorized stage, moving range: 120mm(X) x 80mm(Y); resolution: 0.02μm, repeatability <1μm, with control box and operating handle, with slider holder. A54.0961 o o
φ36 Petri dish holder,used with Marzhauser-SCAN o o
96-well plate petri dish holder,used with Marzhauser-SCAN o o
Teraseki holder,used with Marzhauser-SCAN o o
Prior
Motorized Stage		 Prior Motorized stage, moving range: 114mm(X) x 75mm(Y), resolution: 0.01μm, repeatability:0.2 μm, with control box and operating handle. A54.0962 o o
φ36 Petri dish holder,used with Prior stage. o o
96-well plate petri dish holder,used with Prior stage. o o
Teraseki holder,used with Prior stage. o o
　 Motorized coarse & fine coaxial focusing, range: 10.5mm, precision: 1 μm.
Motorized left camera port, splitting ratio:0:100, 50:50, 100:0.
Motorized upper camera port, splitting ratio: 100:0, 0:100,with CTV adapter
Dual optical path, with fluorescent light barrier. 		　 ● ●
Base mounting bracket anti-vibration A54.0960-AV o o
Right camera port, manual two gears switching, splitting ratio: 100:0, 0:100, POV16mm, built-in C-mount 1X. (MUST ordered with whole unit, cannot be added later as optional) A55.0960 o o
Condenser B Mortorized LWD unviersal 7 positions condensor with N.A.0.55, W.D.27mm. 3 positions ø30mm for Phase contrast observation. 4 positions ø38mm, External connecting cable 100cm
Work For BF, PH, DIC.		 A56.0962 ● ●
Phase Contrast for B 4X phase contrast aperture group A5C.0962-4 ● ●
10X phase contrast aperture group A5C.0962-10 ● ●
20X/40X/60X phase contrast aperture group A5C.0962-204060 ● ●
DIC for A,B DIC slider & Analyzer for transmitted light, Need to select Objectives:
A5F.0961-10x,20x,40x,60x
A5F.0962-10x,20x,40x,60x
A5C.0960-10x,20x,40x,60x		 A5C.0964 Bo Bo
10X DIC ring, compatible with condenser B A5C.0964-10 Bo Bo
20X DIC ring, compatible with condenser B A5C.0964-20 Bo Bo
40X/60X DIC ring, compatible with condenser B A5C.0964-4060 Bo Bo
Condenser C Manual 5 positions LWD condenser, NA0.30, WD73mm, to meet 4X-60X phase contrast, simple polarization or 10X-40X RPC relief contrast.
Work For BF, PH, POL, Relief		 A56.0963 o o
Phase Contrast for C 4X phase contrast aperture group A5C.0963-4 Co Co
10X phase contrast aperture group A5C.0963-10 Co Co
20X/40X/60X phase contrast aperture group A5C.0963-204060 Co Co
Polarizing for C Analyzer, MUST be selected for Reflief Hoffman A5P.0963-A Co Co
360° rotatable polarizer, MUST be selected for Reflief Hoffman A5P.0963-P Co Co
Relief Hoffman
Phase Contrast Slide & Objective		 10X aperture group, compatible with condenser C A5C.0965-10S Co Co
20X aperture group, compatible with condenser C A5C.0965-20S Co Co
40X aperture group, compatible with condenser C A5C.0965-40S Co Co
LWD Infinity Plan Semi-APO Relief Hoffman Phase Contrast Objectives A5C.0965 Co Co
10X/0.30, WD=8.8mm, A5C.0965-10 Co Co
20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness A5C.0965-20 Co Co
40X/0.45, WD=2.85~4.05mm, 0~2mm Cover glass thickness A5C.0965-40 Co Co
Transmit Light Tilting transmited light system, transmited Kohler light system, Condenser lifting adjustable, range: 65mm, able to set 4 filters. A56.0960 ● ●
10W Cool LED Light Box, color temperature 5000K A56.0960-LED o o
12V100W halogen illumination box, filament center preset. A56.0960-HAL ● ●
12V100W halogen lamp 7724 A56.0960-12100 ●● ●●
LBD filter A56.0960-LBD ● ●
Green filter A56.0960-G ● ●
Reflect
Fluorescent Mercury Light		 L-shaped design reflection fluorescence illuminator.with attenuation plate. A5F.0960-MER x ●
100W Fluorescence mercury light box x ●
100W mercury lamp power supply unit (U5 power supply unit) x ●
100W Mercury Lamp (OSRAM) x ●
5 positions Motorized filter wheel is offered for both excitation and observation, BF/Shutter/ND6/ND25/ND50; External connecting cable 100cm A5F.0960-FW x o
Extension accessories A5F.0960-EX x ●
Multi-band LED Light Source Module, with four excitation
channels,10W high-power LED		 A5F.0960-LED4 x o
Fluorescent Filter Motorized turret with 8 positions, built-in shutter, External connecting cable 20cm A5F.0960-60 x ●
Rotary disk dustproof box A5F.0960-DB x ●
Fluorescence filter(B) (CHROMA) A5F.0960-B x ●
Fluorescence filter(G) (CHROMA) A5F.0960-G x ●
Fluorescence filter(UV) (CHROMA) A5F.0960-UV x ●
Fluorescence filter(R1) (CHROMA) EX:AT620/50X, BS: AT655DC, EM: AT690/50M A5F.0960-R1 x o
CAN Card Need buy computer too to meet electric control, including MV-image-Research A54.0966-USB ● ●
Need buy computer too to meet electric control, including MV-image-Research A54.0966-PCIE o o
Computer Dell Computer Precision T3650(i7 11700/16GB/256GB+1TB/P620) + P2722H A54.0966-PC o o
7" screen, Motorized control unit A54.0966-TPC o o
External connecting cable 200cm, computer connect with power supply box. A54.0966-EC ● ●
Power supply External system controller.All motorized units are powered by this.
Voltage input:90-265V,output:12V100W/24V5A/15V5A/5V5A 		　 ● ●
External connecting cable 200cm, power supply box connect to microscope 　 ● ●
Digital Camera SONY IMX267 color camera,CCD 8.9M, 32fps@8.9MP,USB3.0,Sensor 1" A59.0960-8.9M o o
SONY IMX264 color camera,CCD 5.0M, 35fps@5MP,USB3.0,Sensor 2/3" A59.0960-5.0M ● ●
SONY ICX695 color camera,CCD 6.0M, 7.5fps@6MP,USB3.0,Sensor 1" A59.0960-6.0M o o
SONY ICX695 color cold camera,CCD 6.0M, 7.5fps@6MP,USB3.0,Sensor 1" A59.0960-6.0MC o o
SONY ICX695 mono color camera,6.0M, 7.5fps@6MP,USB3.0,CCD 1" A59.0960-6.0MM o o
SONY ICX695 mono color cold camera,6.0M, 7.5fps@6MP,USB3.0,CCD 1" A59.0960-6.0MMC o o
RISI 9.9M mono color camera(2960x2960), field of view 17.8mm, pixel size 4.25x 4.25um, 30 fps, 73% quantum efficiency, sensor 17.8mm A59.0960-9.9M o o
Telescope Phase Contrast Telescope Φ30 A5C.0910-30 ● ●
Fluorescence Telescope A5F.0930-2 x ●
C-mount adaptor C-mount adaptor 0.5X A55.0930-05 o o
C-mount adaptor 0.65X A55.0930-65 ● ●
C-mount adaptor 1X A55.0930-10 o o
Accessories Allen wrench M3 　 ●● ●●
Allen wrench M4 　 ●● ●●
Allen wrench M5 　 ● ●
Non-fluorescing immersion oil 　 o o
Packaging Carton and foam 　 ● ●
Remark ●' means standard outfit, 'o' means optional outfit, 'x' means not compatible, 'A','B','C' means only compatible for specific condenser A,B or C
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser

Product tags

microscope condenser

,

vision air oxygen concentrator

,

opti hand held refractometer
Send your message to this supplier
Send Now

Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser

Ask Latest Price
Product Detail
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A16.0960
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Contact Supplier
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser
Opto Edu A16.0960 Research Level Inverted Fluorescent Microscope Motorized Nosepiece Condenser

Opto-Edu (Beijing) Co., Ltd.

Verified Supplier
12 Years
beijing, beijing
Since 1995
Business Type :
Manufacturer, Distributor/Wholesaler, Exporter, Trading Company, Seller
Main Products :
Compound Optical Microscope, Stereo Optical Microscope, Digital Optical Microscope
Total Annual :
6000000-8000000
Employee Number :
10~20
Certification Level :
Verified Supplier
Discover similar products
View More
Watch related videos

Find Similar Products By Category:

Supplier Homepage Products Inverted Optical Microscope
MachineU China Products Beauty & Personal Care Other Beauty & Personal Care Products(new)
Contact Supplier
Submit Requirement
