5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A15.0701
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Application :
Laboratory, Metallurgy, Mineralogy
Focusing Type :
Coaxial Coarse & Fine
Focusing Feature :
Safety Stop Lock Ring
Illumination :
Halogen Lamp
Working Stage :
Round
Condenser :
Swing-out NA0.9/0.25 Abbe Condenser With Iris Diaphragm & Filter
Description

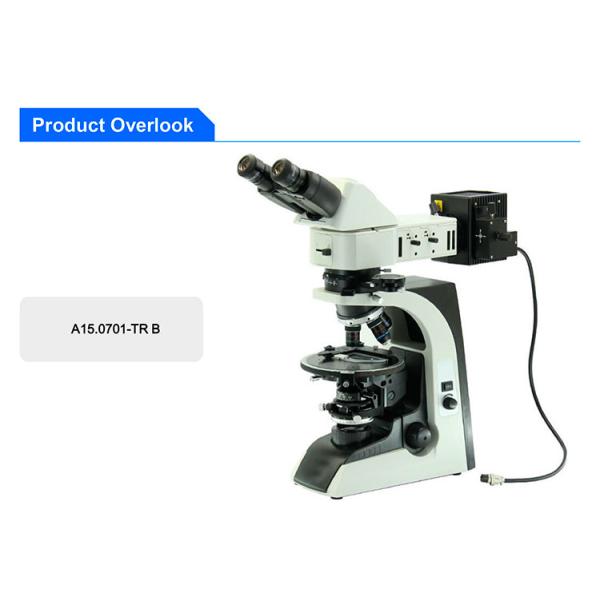

OPTO-EDU A15.0701-TR Polarizing Microscope Transmit & Reflect

Backward Quadruple Nosepiece, Center Adjustable

Swing-out NA0.9/0.25 Abbe Condenser With Iris Diaphragm & Filter

12V/20W Halogen Lamp, Brightness Adjustable, With Filter, Upgradable To 5W LED



5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope
Items A15.0701 Polarizing Microscope A15.0701-TR
B T
Head Seidentopf Binocular Viewing Head, Inclined at 30° ● 　
Seidentopf Trinocular Viewing Head, Inclined at 30° 　 ●

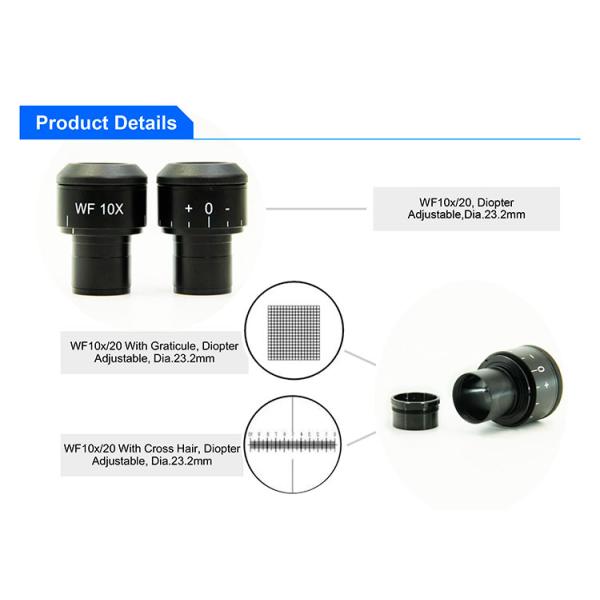

Eyepiece WF10x/20 With Cross Hair, Diopter Adjustable, Dia.23.2mm, 1pcs ● ●
WF10x/20 With Graticule, Diopter Adjustable, Dia.23.2mm, 1pcs ● ●
WF10x/20, Diopter Adjustable,Dia.23.2mm, 2pcs ● ●
Objective Infinity Plan Achromatic Objective 4x,10x for Reflected/Transmitted System ● ●
Infinity Plan Achromatic Objective 20x, 40x, 60x for Transmitted System 　 　
Infinity Plan Achromatic Objective 20x, 40x, 60x for Reflected System ● ●
Nosepiece Backward Quadruple Nosepiece, Center Adjustable ● ●
Focusing Coaxial Coarse & Fine Adjustment, Range 24mm,Fine Division 0.002mm ● ●
Stage Attachable Mechanical Stage, Moving Range 30x40mm ● ●
Diameter Φ160mm, Graduated in 1° Increments, Minimum resolution 6’ when using vernier scale ● ●
Analyzer Rotatable Analyzer With Gradation 0°-360° ● ●
Polarizer 360° Rotatable Under The Condenser ● ●
Bertrand Lens Bertrand Lens, Focus/Center Adjustable Sliding In/Out Of Optical Path ● ●
Optical Compensator λ Slip(First Class Red), 1/ 4λ Slip, Quartz Wedge ● ●
Condenser Swing-out NA0.9/0.25 Abbe Condenser With Iris Diaphragm & Filter ● ●
Transmit Light 12V/20W Halogen Lamp, Brightness Adjustable, With Filter, Upgradable To 5W LED ● ●
Reflect Light 12V/50W Halogen Lamp With Iris Aperture Diaphragm And Iris Field Diaphragm, Brightness Adjustable ● ●
Adapter C-Mount 0.4x 　 ○
Filter Blue Filter ○ ○
Note: "●"In Table Is Standard Outfits, "○" Is Optional Accessories.
