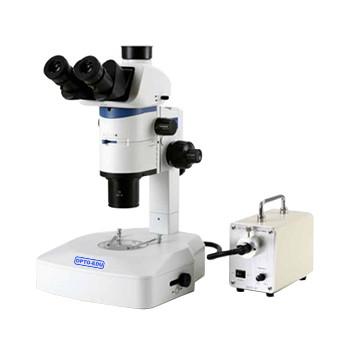

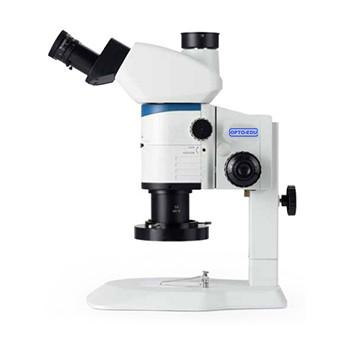

Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A23.2910
Certification :
CE|Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Applications :
Industry
Eyepieces :
High Eye-point Wide Field Plan Eyepiece
Illumination :
LED
Product Name :
Stereo Zoom Microscope
Camera Adapter :
0.5X/0.65X/1X C-mount Adapter, Focus Adjustable
Description


A23.0910 0.8x~10x Zoom Stereo Microscope With High Eye-point Wide Field Plan Eyepiece PL10X/23mm


Specifications:

A23.0910 Zoom Stereo Microscope,Zoom Ratio 1:12.5, Parallel LightA23.0910-B1A23.0910-B2A23.0910-B10Cata. No.
Head5°~45° Tilting Trinocular Head, Light Splitting Switch E100:P0/E0:P100,
Inter-Pupillary Distance 50~76mm, With Eyepiece Lock		●●●　
30° Inclined Trinocular Head, Light Splitting Fixed E50:P50,
Inter-Pupillary Distance 50~76mm, With Eyepiece Lock		　　　　
EyepiecePL10x/23mm High Eye-Point Wide Field Plan Eyepiece, Diopter Adjustable●●●A51.0925-10
PL15x/16mm High Eye-Point Wide Field Plan Eyepiece, Diopter Adjustable○○○A51.0925-15
PL20x/12.5mm High Eye-Point Wide Field Plan Eyepiece, Diopter Adjustable○○○A51.0925-20
LensZoom Lens 0.63x~8x, Zoom Ratio 1:12.5,
Built-in Aperture Diaphragm Adjustable,
Main Scales On Zoom Knob 0.63x, 0.8x, 1.0x, 1.25x, 1.6x, 2.0x, 2.5x, 3.2x, 4x, 5x, 6.3x, 8x, Switch Between With/Without Click Stop		●●●　
Auxiliary Objective0.5x Main Objective APO, Working Distance 70.5mm○○○A52.0930-05
1.0x Main Objective APO, Working Distance 78.0mm●●●A52.0930-10
1.5x Main Objective APO, Working Distance 31.1mm○○○A52.0930-15
2.0x Main Objective APO, Working Distance 20.0mm○○○A52.0930-20
NosepieceDouble Nosepiece○○○　
FrameCoaxial Fine & Coarse Focusing Mechanism, Intgrated Focus Holder And Stand, Focusing Range 50mm, Fine Focusing Precision 0.002mm●●●　
Base & Bottom Light Source(B1) Plan Base
Without Illumination, With Black/White Plate Dia.100mm		●--　
(B2) Plan Base
With Bottom Illumination Built-in Mirror 360° Rotatable + Position Adjustable
Use With Oblique Illumination 5W LED		-●-　
Forearm Holder (Matching Use With B2 Base)-○-A54.0965
(B10) Ultra-thin Base,
With Bottom Illumination 5W LED, Color Temperature 3200~5600K & Light Intensity Adjustable With Digital Readout LCD Screen		--●　
Uppler
Light Source		Upper Illumination:
Attachable LED Ring Light (200 Bulbs), Wide Voltage 100-220V		●　●　
Oblique Illumination:
External 5W LED Module, Color Temperature 5000-5500K White Light, Wide Voltage 100-220V, Output 12V5W, Power Supply Box Size 270×100×130mm, With Single Optical Fiber 500mm (Matching Use With B2 Base)		-●-　
Coaxial Illumination:
1.5x, With 1/4 λ, 360º Rotatable, 20W LED, Intensity Adjustable, With Power Supply Box, With Soft Double Optical Fiber 1000mm		---　
PolarizingPolarizer Fixed On Bottom Light Source (For Transmit Light)-○○A5P.0925-P
Analyzer Attached Under Lens, 360° Rotatable (For Transmit Light)-○○A5P.0925-A
Adapter0.35x C-mount Adapter, Focus Adjustable○○○A55.0930-35
0.5x C-mount Adapter, Focus Adjustable○○○A55.0930-05
0.65x C-mount Adapter, Focus Adjustable○○○A55.0930-65
1.0x C-mount Adapter, Focus Adjustable○○○A55.0930-10
Allen keyM4 allen key (3mm)●●●　
PackageSponge And Carton, One Set/Carton, Carton Size 58.5x55x81cm●●●　
● Means Standard Outfit ○ Means Optional Parts - Mean Not Match


Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
Zoom Stereo Optical Microscope With High Eye Point Wide Field Plan Eyepiece PL10X/23mm
