Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A33.1009
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Magnification :
40x~1600x
Objective :
Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
Stage :
Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm
Condenser :
N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
Sensor :
1/2.8"Sony Star Light Level CMOS Sensor
Resolution :
5.0M CMOS
LCD Screen :
9"LCD, Resolution 1024x600 High Clearance Screen
Output :
USB 2.0 Type-A, TF Card
Pixel Size :
2.0x2.0um
Power Supply :
DC 12V/2A Power Adapter, Input 100-240V AC
Description
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
A33.1009

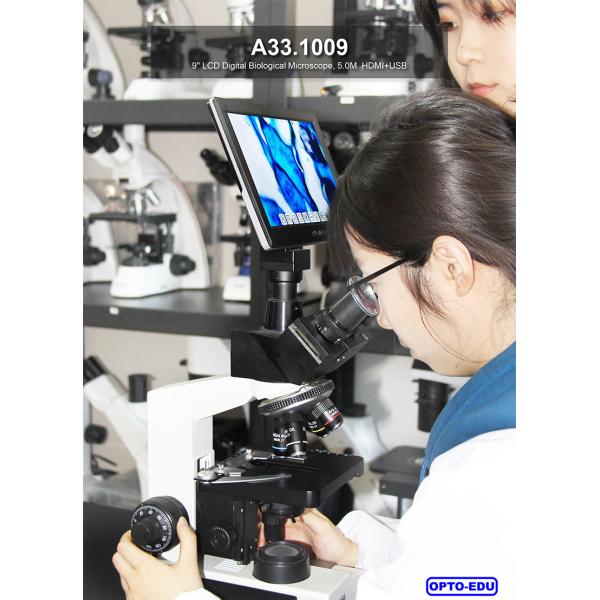

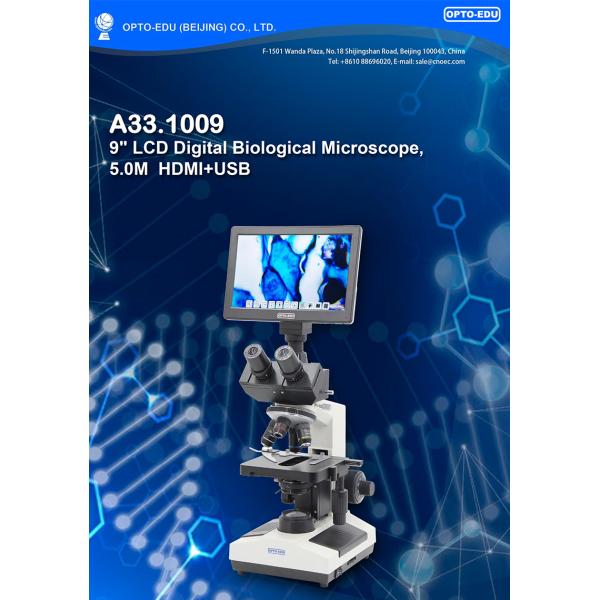

9" LCD Digital Biological Microscope, 5.0M HDMI+USB

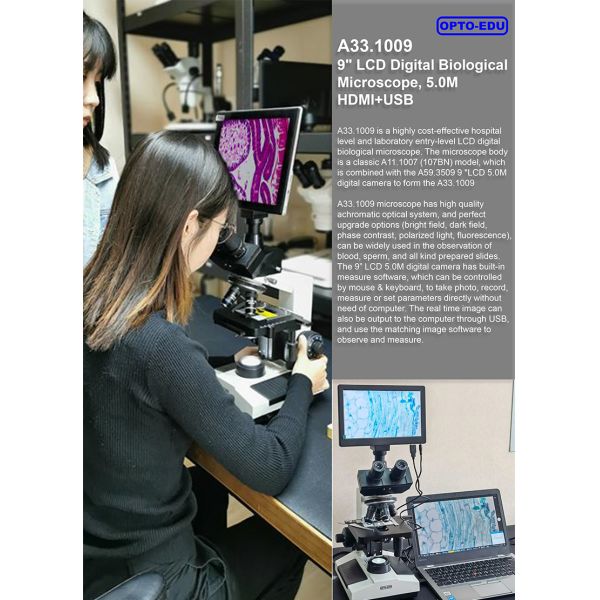

A33.1009 is a highly cost-effective hospital level and laboratory entry-level LCD digital biological microscope. The microscope body is a classic A11.1007 (107BN) model, which is combined with the A59.3509 9 "LCD 5.0M digital camera to form the A33.1009

A33.1009 microscope has high quality achromatic optical system, and perfect upgrade options (bright field, dark field, phase contrast, polarized light, fluorescence), can be widely used in the observation of blood, sperm, and all kind prepared slides. The 9” LCD 5.0M digital camera has built-in measure software, which can be controlled by mouse & keyboard, to take photo, record, measure or set parameters directly without need of computer. The real time image can also be output to the computer through USB, and use the matching image software to observe and measure.
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Head & Eyepiece
Sliding Trinocular Black Head, With Eyepiece Adapter & 1.0x C-Mount
WF10x & WF16x
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Standard Black Objective
Quadruple Nosepiece
Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Mechanical Stage
Double Layer Mechanical Stage, Double Slides Holder, 140*140mm
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Condenser
N.A.1.25 Abbe Condenser,
Iris Diaphragm, With Filter Holder
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
3W LED Light Source
LED Illumination, Brightness Adjustable
(6V20W Halogen Lamp Optional)
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
A33.1009 Biological Microscope Specification
Magnification Optical 40x~1600x, On LCD 78.8x-1970x
Head Sliding Trinocular Black Head, 45° Inclined, 360° Rotatable, IPD 55-75mm
Eyepiece Wide Field WF10x/18mm
Wide Field WF16x/11mm
Nosepiece Quadruple Nosepiece
Objective Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
Stage Double Layer Mechanical Stage, 140*140mm, Moving Range 50*75mm
Focusing Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, With Tension Adjustment, With Safety Stop Lock Ring
Condenser N.A.1.25 Abbe Condenser, Iris Diaphragm, With Filter Holder
Filter Blue, Yellow, Green
Light Source Built-in Illumination 3W LED, Brightness Adjustable
Adapter 1.0x C-Mount, Eyepiece Adapter
Packing Foam +Carton, 1 Set/Carton, Packing Size 33*28*55cm, G.W.9Kg, N.W.7Kg

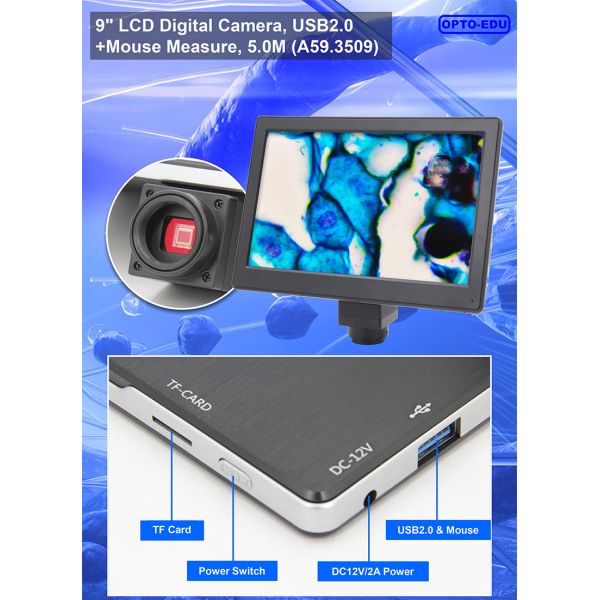

A33.1009 LCD Digital Camera Specification
Sensor 1/2.8"Sony Star Light Level CMOS Sensor
Resolution 5.0M CMOS
LCD Screen 9"LCD, Resolution 1024x600 High Clearance Screen
Output USB 2.0 Type-A, TF Card
Pixel Size 2.0x2.0um
Power Supply DC 12V/2A Power Adapter, Input 100-240V AC
Function Photo, Video, Measures, Compare
Support USB Mouse Control To Capture Photo, Video, Measure, Setting
USB 2.0 To Win 7, Win10 System, Software S-Eye Included
Brightness, Contrast, Exposure, White Balance Adjustable
10x Digital Zoom, 4 Split/ 2 Split Windows Image Compare
Storage To TF Card
Cross Line With Scale, Calibrated
Net Line 8 Kinds, Width & Color Adjustable
Size / Weight Product Size 225x52x175mm, Net Weight 0.7Kg
Standard Package LCD Camera, USB 2.0 Cable, Mouse, DC12V Power Adapter

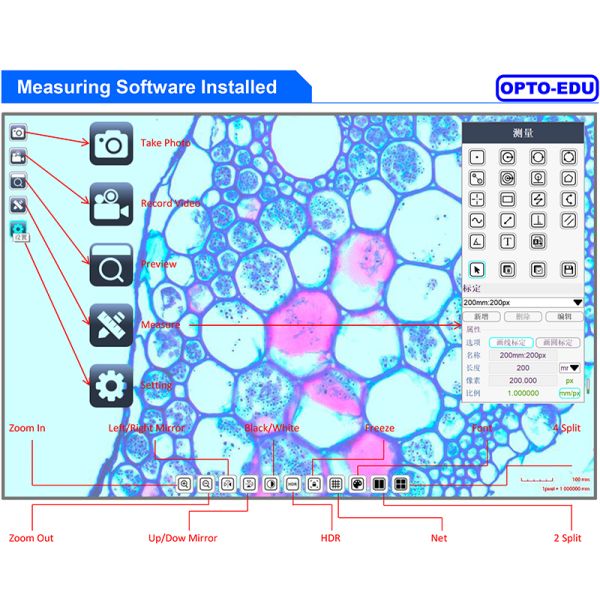

USB Mouse Control Operation Manual 1. Insert the mouse into the camera Type-A USB 2.0 port, connect 12V power supply to camera.
2. Turn on the power switch, when the camera is running, the LED light turns blue
3. Move the mouse to the top left corner of the screen to call up the MAIN MENU, including icon : Take Photo, Record Video, Preview, Measure, Setting.
4. Move the mouse to the middle position at the bottom of the screen to call up the QUICK MENU, including icon:
Zoom In, Zoom Out, Up/Dow Mirror, Left/Right Mirror, Black/White, HDR, Freeze, Net, Font, 2 Split, 4 Split
5. Click the MEASURE icon to pop up the measure window, which support over 20 kinds of measurement graphics.
6. Click the EDIT button and fill in the name to of new ruler to CALIBRATE.Move the mouse to the corresponding standard scale in the image display window and draw a standard length scale line. Then fill in the length column and click SAVE to complete the calibration setting. If you want to add more ruler, just repeat above steps.
7.Click mm/PX to open or close the screen scale.
8. If the USB port is directly connected to the computer, the screen and the computer can be displayed synchronously (the USB cable must be connected to the computer before the device is powered on)
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope

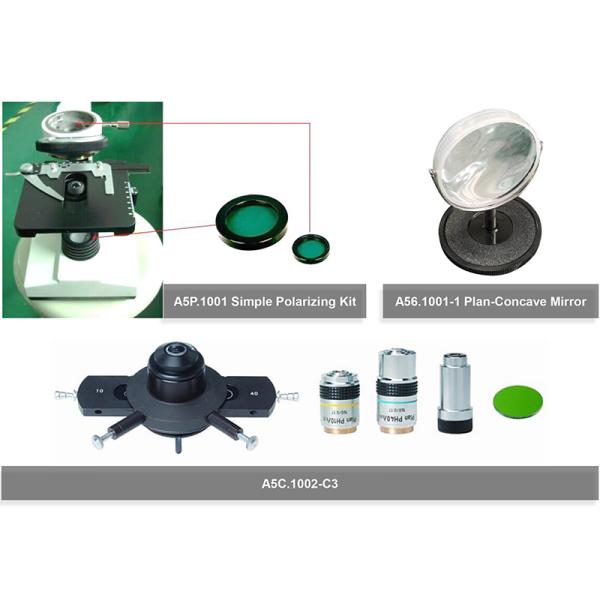

A33.1009 Biological Microscope Optional Accessories
Video Adapter 0.45x C-Mount With Reduction Lens A55.1002-45
Objective Achromatic 20x/0.4, W.D.=9mm A52.1001-20
Achromatic 60x/085(S) A52.1001-60
Light Source Plan-Concave Mirror A56.1001-1
Dark Field Dark Field Condenser, N.A. 0.7~0.9, Dry A5D.1006-D
Dark Field Condenser, N.A. 1.25~1.35, Oil Immersion A5D.1006-I
Dark Field Objective Achromatic 100x, with Cone Diaphragm, Used With A5D.1006-I A5D.1030-1
Dark Field Objective Plan 100x, With Iris Diaphragm, Used With A5D.1006-I A5D.1030-2
Polarizing Simple Polarizing Kit A5P.1001
Phase Contrast Sliding Phase Contrast Set A5C.1002-C3
--Sliding Phase Contrast Condenser
--Achromatic Phase Contrast Objective 10x,40x
--Centering Telescope
--Green Filter
Fluorescent EPI-Fluorescent Kit A5F.1001
--Power Supplier 220V/110V Interchangeable, Digital Display
--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
--Barrier To Resist Ultraviolet Light
--Fluorescence Free Oil
--Fluorescent Objective 10x,25x,40x,100x
--Excitation Filter B
--Excitation Filter G
--Excitation Filter U A5F.1001-U
--Excitation Filter V A5F.1001-V
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
Portable 1600x Magnification 2.0x2.0um Digital Lcd Microscope
