LED HDMI DC12V CNOEC Digital LCD Microscope
LED HDMI DC12V CNOEC Digital LCD Microscope
LED HDMI DC12V CNOEC Digital LCD Microscope
LED HDMI DC12V CNOEC Digital LCD Microscope
LED HDMI DC12V CNOEC Digital LCD Microscope
LED HDMI DC12V CNOEC Digital LCD Microscope
LED HDMI DC12V CNOEC Digital LCD Microscope
LED HDMI DC12V CNOEC Digital LCD Microscope
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A36.6401
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
LCD Screen :
10.6" IPS LCD
Camera Pixel :
12MP
Data Output :
HDMI
Objective :
0.7x~4.5x Zoom Lens
Total Magnification :
14x~90x On 10.6" LCD Screen
Illumination :
Side/Up LED Light, Brightness Adjustable
Description

LED Light Source DC12V Digital LCD Microscope Pole Stand 200*255*60mm Size

A36.6401 is widely used in PCB boards, hardware, serial devices, FPC, textiles, tickets, kinds of visual industrial testing, digital magnifying glass, hospital research, education, criminal investigation and other fields. It will reduce labor intensity and improve work efficiency.

It can be applied to the following fields:

1.1 Studies in zoology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology;

1.2 In the textile industry, used for testing raw materials and wool fabrics;

1.3 In the electronics industry, as a transistor spot-welding, inspection and other operating tools;

1.4 Inspection of surface phenomena such as fracture composition of various materials and corrosion of pore shape;

1.5 When manufacturing small precision parts, it is used as equipment of machine tools, observation of working process, inspection of precision parts and assembly tools;

1.6 Surface quality of lens, prism or other transparent material, and quality inspection of precision scale;

1.7 It is widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, mechanical manufacturing, pharmaceutical manufacturing, food processing, printing industry, universities, archaeology and many other fields.

LED HDMI DC12V CNOEC Digital LCD Microscope

LED HDMI DC12V CNOEC Digital LCD Microscope

LED HDMI DC12V CNOEC Digital LCD Microscope

LED HDMI DC12V CNOEC Digital LCD Microscope

LED HDMI DC12V CNOEC Digital LCD Microscope

A32.6401, A36.6401 Series Digital Microscope A32.6401
-12M		 A36.6401
-12M		 A36.6401
-12MH

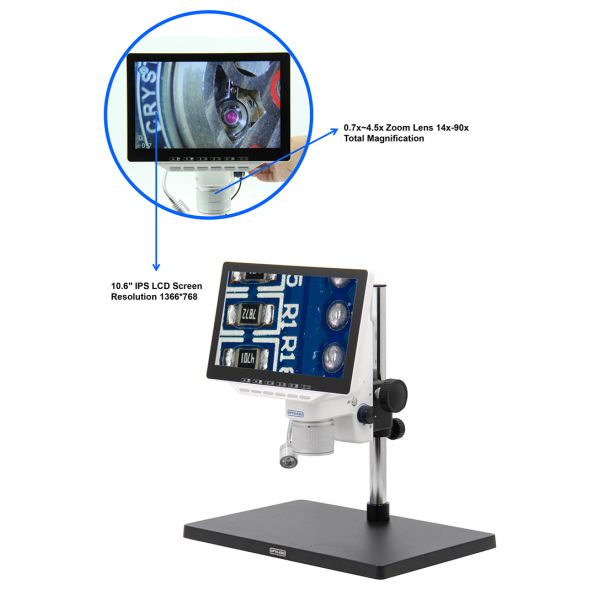

LCD Screen Size 10.6" IPS LCD 　 ● ●
Resolution 1366*768 　 ● ●
Digital Camera Camera Pixel 12MP ● ● ●
Video Resolution 1080p/60fps ● ● ●
Data Output HDMI ● 　 ●
WDR Yes ● ● ●

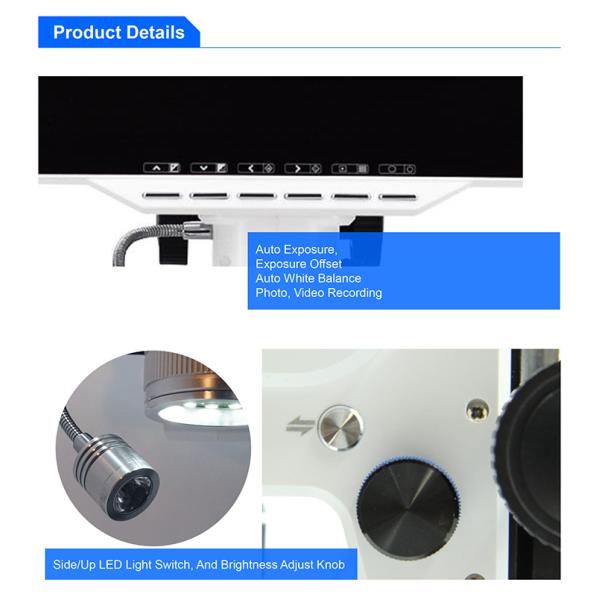

Function Auto Exposure,
Exposure Offset
Auto White Balance
Photo, Video Recording		 ● ● ●

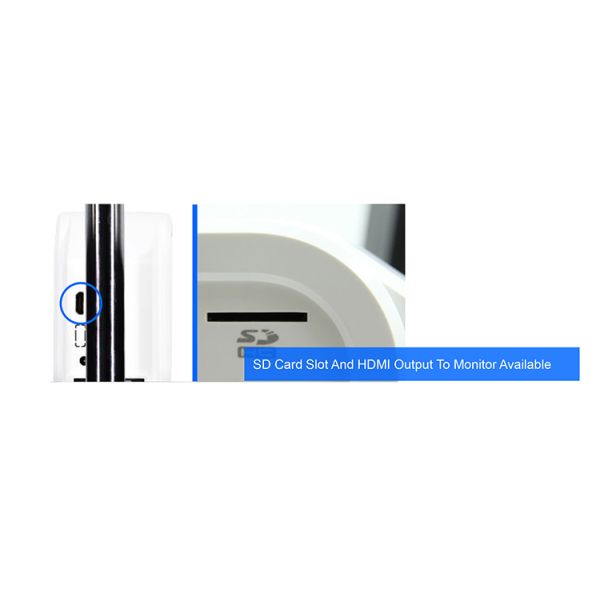

Storage SD Card Storage (Max 32G) ● ● ●
External Interface Projector/Monitor With HDMI Port ● 　 ●
Optical Objective 0.7x~4.5x Zoom Lens ● ● ●
Total Magnification 14x~90x On 10.6" LCD Screen ● ● ●
Illumination Side/Up LED Light, Brightness Adjustable ● ● ●
Focus Range 60mm ● ● ●
Working Distance 88mm ● ● ●
Stand Column Round Pole, Dia.25mm ● ● ●
Stand 380mm*250mm*20mm, Black ● ● ●
320mm*260mm*20mm, White (Same Cost) o o o
Optional A52.6401-0.5 Auxilliary Lens 0.5x o o o
A52.6401-2.0 Auxilliary Lens 2.0x o o o
Boot Logo o o o
WiFi SD Card, Upgrade To WiFi Microscope o o o
SD Card o o o
Power DC 12V1A, Wide Range 100~240V AC Adapter ● ● ●
Remark: "●" Means Standard Outfit, "o" Means Optional
