Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A12.2602
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Eyepiece :
WF10x/20
Nosepiece :
5 Holes
Objective :
Infinity Plan 4x10x40x100x
Working Stage :
Double Layer Mechanical
Condenser :
Abbe N.A.1.25
Focusing :
Coaxial Coarse & Fine
Light Source :
LED
Power Supply :
100~240V
Magnification :
40x,100x,200x,400x,1000x
Description

OPTO-EDU A12.2602 40X~1000X Trinocular Laboratory Biological Microscope With Double Layer Mechanical

A12.2602 is a type of laboratory biological microscope, it is designed for college teaching and hospital. It is the original style which can upgrade to A12.2603 microscopes. The features of steady structure, convenient operation and clear image is suitable for observing various biological specimens, and mostly applied in college and hospital.

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 And Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Quintuple, Backward
Large Size High Precision Quintuple Nosepiece, With Polarizing Analyzer Slot, Infinity Plan Objective 4x,10x,20x,40x,100x Available
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Abbe Condenser N.A.1.25
Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder, With Iris Scale For 4x10x20x40x100x Marked On Condenser.
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

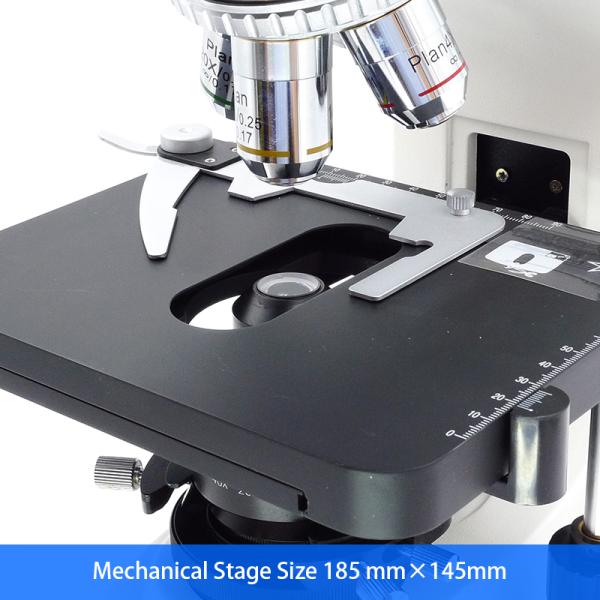

Working Stage
Mechanical Stage Size 185 mm×145mm, Travel 76mmX52mm
Scale: 0.1mm, Double Slide Holder
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Items A12.2602 Laboratory Biological Microscope Specification -B -T Cata. No.
Head Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm ● ○ A53.2622-B
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Switch E100:P0/E0:P100 ○ ● A53.2622-T
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed E80:P20 ○ A53.2622-Ta
Eyepiece WF10X/20mm (High Eyepoint) ●● ●● A51.2602-1020
Nosepiece Quintuple, Backward ● ● A54.2610-N01
Infinity Plan Objective PLAN 2.5X/0.07,W.D.=8.47mm ○ ○ A52.2606-2.5
PLAN 4X/0.10,W.D.=12.10mm ● ● A52.2606-4
PLAN 10X/0.25,,W.D.=4.64mm ● ● A52.2606-10
PLAN 20X/0.40(S),W.D.=2.41mm ○ ○ A52.2606-20
PLAN 40X/0.66(S),W.D.=0.65mm ● ● A52.2606-40
PLAN 60X/0.80(S),W.D.=0.33mm ○ ○ A52.2606-60
PLAN 100X/1.25(S,Oil),W.D.=0.12mm ● ● A52.2606-100
PLAN 100X/1.15(S,Water),W.D.=0.19mm ○ ○ A52.2606-100W
Working Stage Mechanical Stage Size 185 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder ● ● A54.2601-S01
Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder ○ ○ A54.2601-S10
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm ● ● 　
Condenser Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down ● ● A56.2614-01d
Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm ○ ○ A56.2614-07a

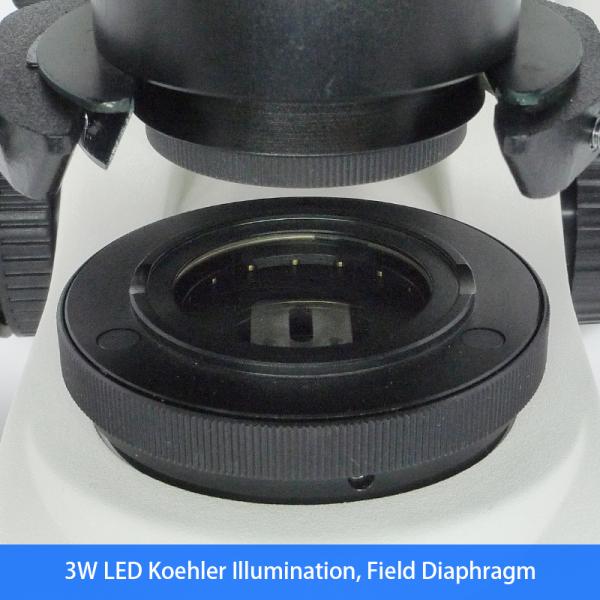

Illumination 3W LED Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 ● ● A56.2612-3W
12V20W Halogen Koehler Illumination, With Field Diaphragm
Power Supply Wide Voltage 100V~240V		 ○ ○ A56.2650-20W
6V30W Halogen Koehler Illumination, With Field Diaphragm
Power Supply Wide Voltage 100V~240V		 ○ ○ A56.2650-30W
Field Diaphragm For Kohler Illumnation ● ● A56.2615-BK
Power ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually		 ○ ○ A56.2660
Filter Dia.45mm, Blue ○ ○ A56.2616-45B
Dia.45mm, Green ○ ○ A56.2616-45G
Dia.45mm, Yellow ○ ○ A56.2616-45A

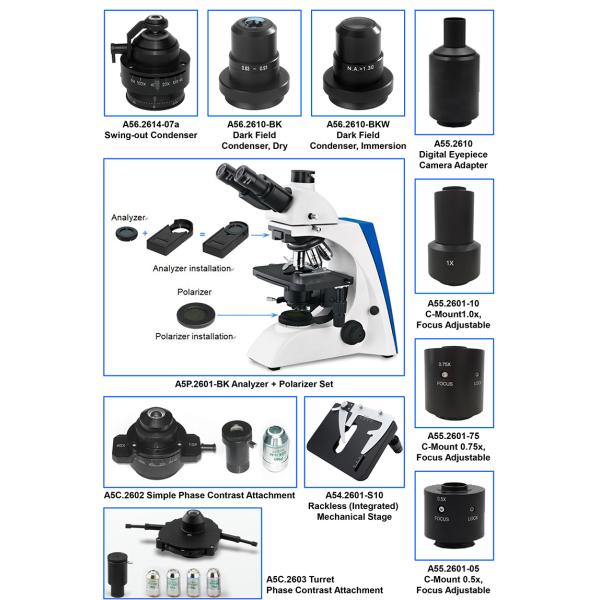

Dark Field Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective ○ ○ A5D.2610-BK
Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective ○ ○ A5D.2610-BKW
Polarizing Analyzer + Polarizer Set ○ ○ A5P.2601-BK
Phase Contrast Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ ○ A5C.2602-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ ○ A5C.2602-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ ○ A5C.2602-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ ○ A5C.2602-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter		 ○ ○ A5C.2603-BK
Fluorescence Upgrade to A16.2602-T2 Fluorescence Microscope With A5F.2601-2:
B,G China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs		 　 ○ A5F.2601-2
Fluorescence Upgrade to A16.2602-T4 Fluorescence Microscope With A5F.2601-4:
B,G,U,UV China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs		 　 ○ A5F.2601-4
Upgrade to A16.2602-LT2 Fluorescence Microscope With A5F.2602-2:
B,G China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier		 　 ○ A5F.2602-2
Upgrade to A16.2602-LT4 Fluorescence Microscope With A5F.2602-4:
B,G,U,UV China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier		 　 ○ A5F.2602-4
Adapter C-Mount 0.5x, Focus Adjustable ○ ○ A55.2601-05
C-Mount 0.75x, Focus Adjustable ○ ○ A55.2601-75
C-Mount 1.0x, Focus Adjustable ○ ○ A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm ○ ○ A55.2610
Package Carton Size 542×265×350mm, 1 Unit/Ctn
Weight Gross Weight: 12 kgs, Net Weight: 10 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories
