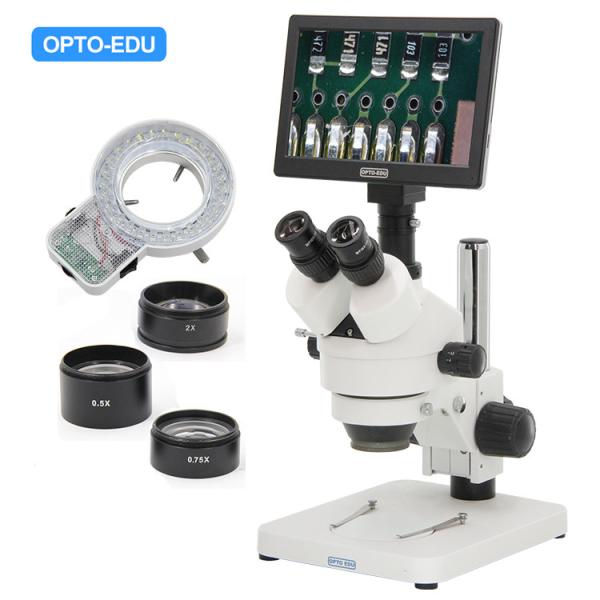

Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A36.1502
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Eyepiece :
WF10x/20mm, Both With Eye-cup
Zoom Lens :
0.7~4.5x
Zoom Ratio :
1:6.5
Magnification :
7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
W.D. :
Working Distance100mm, With Standard 1.0x Lens
F.O.V :
Field Of View 1~95.2mm
Light Source :
Upper 56 LEDs Right Light Brightness Adjustable
Stand :
B1 Pole Stand, Size 220*255mm, Pole Height 240mm, Dia.32mm
Sensor :
1/2.8" Sony Star Light Level CMOS Sensor
Resolution :
5.0M CMOS
Description

Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope

Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope

Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope

A36.1502 Zoom Stereo Microscope Optical Data Sheet
Objective Standard 1.0x Auxiliary 0.5x Auxiliary 0.75x Auxiliary 2.0x
W,D. 100mm 177mm 120mm 30mm
Eyepiece Mag View Field Mag View Field Mag View Field Mag View Field
10X/20mm 7.0X 28.6mm 3.5X 57.1mm 5.25x 43.8mm 14X 14.3mm
　 45.0X 4.4mm 22.5X 8.9mm 45x 6.5mm 90X 2.2mm
15X/15mm 10.5X 21.1mm 5.25X 42.8mm 7.87x 31.8mm 21X 10.7mm
　 67.5X 3.3mm 33.75X 6.7mm 50.6x 4.7mm 135X 1.7mm
20X/10mm 14.0X 14.3mm 7.0X 28.6mm 10.5x 23.9mm 28X 7.1mm
　 90.0X 2.2mm 45.0X 4.4mm 67.5x 3.6mm 180X 1.1mm

Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope

Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope
Portable OPTO-EDU A36.1502 0.7x - 4.5x Digital LCD Microscope

A36.1502 9 LCD Digital Stereo Microscope, 5.0M
Head Trinocular Head, Both Eye Tube Diopter Adjustable
Light Split Switch E100:P0/E0:P100
With Eyepiece Adapter + 1.0x C-Mount
Eyepiece WF10x/20mm, Both With Eye-cup
Zoom Lens 0.7~4.5x
Zoom Ratio 1:6.5
Magnification 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
W.D. Working Distance100mm, With Standard 1.0x Lens
F.O.V Field Of View 1~95.2mm
Light Source Upper 56 LEDs Right Light Brightness Adjustable A56.2103-A
Stand B1 Pole Stand, Size 220*255mm, Pole Height 240mm, Dia.32mm
A59.3509 9" LCD Digital Camera, USB+Mouse Measure, 5.0M
Sensor 1/2.8" Sony Star Light Level CMOS Sensor
Resolution 5.0M CMOS
LCD Screen 9" LCD, Resolution 1024x600 High Clearance Screen
Output USB 2.0 Type-A, TF Card
Pixel Size 2.0x2.0um
Power Supply DC 12V/2A Power Adapter, Input 100-240V AC
Function Photo, Video, Meaure, Compare
USB 2.0 To Win 7, Win10 System, Software S-Eye Included
Brightness, Contrast, Exposure, White Balance Adjustable
10x Digital Zoom, 4 Split/ 2 Split Windows Image Compae
Storage To TF Card
Cross Line With Scale, Calibrated
Net Line 8 Kinds, Width & Color Adjustable
Size / Weight Product Size 225x52x175mm, Net Weight 0.7Kg
Standard Package LCD Camera, USB 2.0 Cable, Mouse, DC12V Power Adapter
USB Mouse Measure
Operation		 1. Insert the mouse into the camera Type-A USB 2.0 port, connect 12V power supply to camera.

2. Turn on the power switch, when the camera is running, the LED light turns blue

3. Move the mouse to the top left corner of the screen to call up the MAIN MENU, including icon :
Take Photo, Record Video, Preview, Measure, Setting.

4. Move the mouse to the middle position at the bottom of the screen to call up the QUICK MENU, including icon:
Zoom In, Zoom Out, Up/Dow Mirror, Left/Right Mirror, Black/White, HDR, Freeze, Net, Font, 2 Split, 4 Split

5. Click the MEASURE icon to pop up the measure window, which support over 20 kinds of measurement graphics.

6. Click the EDIT button and fill in the name to of new ruler to CALIBRATE. Move the mouse to the corresponding standard scale in the image display window and draw a standard length scale line. Then fill in the length column and click SAVE to complete the calibration setting. If you want to add more ruler, just repeat above steps.

7.Click mm/PX to open or close the screen scale.

Windows Measure
Operation		 8. If the USB port is directly connected to the computer, the screen and the computer can be displayed synchronously (the USB cable must be connected to the computer before the device is powered on)

9. S-EYE Measure Software: Length: Straight Line Length, Broken Line Length, Curve Length, Parallel Line Distance, Point Line Distance, Line Length Geometry: Radius Circle, Two-point Circle, Three-point Circle, Concentric Circle, Radius Circle, Two-point Circle, Three-point Circle Geometric Area:Polygon, Square Remark: Point Coordinates, Crosshairs, Coordinate Systems, Text Notes		 　
Optional Accessories Cata.No.
Eyepiece WF15x/15mm, High-eyepoint A51.1520-15
WF20x/10mm, High-eyepoint A51.1520-20
Auxiliary Lens 0.5x,W.D. 177mm A52.1520-05
0.75x,W.D. 120mm A52.1520-75
2.0x,W.D. 30mm A52.1520-20
Light Source Upper 56 LEDs Right Light Brightness Adjustable A56.2103-A
Digital Camera HDMI+USB+TF Digital Camera, 38.0M, USB Measure A59.4231
7" LCD Digital Camera, AV Output A59.5107
9" LCD Digital Camera, AV Output A59.5109
CCD Adapter Eyepiece Adapter + 0.5x C-Mount A55.1520-05
