OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece
OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece
Specifications
Brand Name :
CNOEC, OPTO-EDU
Model Number :
A13.2220
Certification :
CE,
Place of Origin :
China
MOQ :
1 pc
Price :
FOB $1~1000, Depend on Order Quantity
Payment Terms :
T/T, West Union, Paypal
Supply Ability :
5000 pcs/ Month
Delivery Time :
5~20 Days
Packaging Details :
Carton Packing, For Export Transportation
Optical System :
Infinity Plan Achromatic Optical System，Confocal: 60mm
Focusing System :
Focusing Range: 25mm，Coaxial Coarse And Fine Focusing System With Safety Stop Lock Ring & Tension Adjustable, Coarse Stroke17.6mm, Fine division 0.1m, Fine Scale: 1μm
Viewing Head :
Ultra Wide Field Trinocular Head, Light Split: (50/50)；FN=26.5；Upright Image；Head Inclined
Eyepiece :
Ultra Wide Field Diopter Adjustable，10X/FN=25mm，With Eyecup，-2~+8°
Objective :
Infinity Semi-APO BD Objective: 5x、10x、20x、50x、100x
Nosepiece :
5 Holes Coded Manual Operating Nosepiece, M32
Description
OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece
OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece
OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece
OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece
OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece

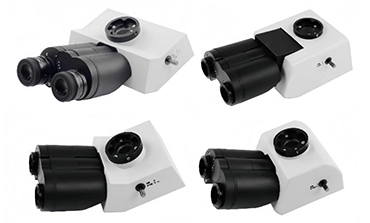

▶ Trinocular Head

Trinocular Ultra Wide Filed, FN=26.5

Light Split: (E0/P100, E50/P50, E100/P0)

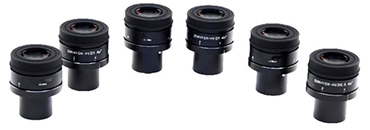

▶ Diopter Adjustable Eyepiece

10X/FN=23mm,With Eyecup ,-2~+8°
OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece
OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece

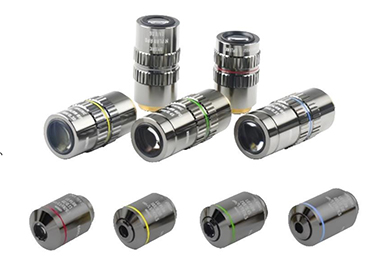

▶ Infinity Achromatic Objective

Infinity Plan Achromatic Objective: 4x,10x,20x,40x,100x
OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece
OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece
OPTO-EDU A13.2220 Infinity Trinocular Metallurgical Microscope Semi-APO BD Coded 5 Holes Nosepiece
Item A12.2220 Laboratory Microscope, A13.2220 Metallurgical Microscope Specification Model. No A12.2220 A13.2220
Optical System Infinity Plan Mutual Achromatic Optical System,Confocal: 60mm
Focusing System Focusing Range: 25mm,Coaxial Coarse And Fine Focusing System With Safety Stop Lock Ring & Tension Adjustable, Coarse Stroke17.6mm, Fine division 0.1m, Fine Scale: 1μm
Head Ultra Wide Field Trinocular Head, Light Split: (0/100,50/50,100/0)；FN=26.5 A53.2201-FTW ● ○
Ultra Wide Field Trinocular Head, Light Split: (50/50)；FN=26.5；Upright Image；Head Inclined A53.2201-FTWA ○ ●
Wide Field Trinocular Head, Light Split: (50/50)；FN=25；Upright Image；Head Inclined:0~45° 　 ○ ○
Wide Field Trinocular Head, Light Split: (0/100,50/50)；FN=23 　 ○ ○
Eyepiece Wide Field Diopter Adjustable,10X/FN=23mm,With Eyecup ,-2~+8° A51.2201-1023 ● ○
Ultra Wide Field Diopter Adjustable,10X/FN=25mm,With Eyecup,-2~+8° A51.2201-1023 ○ ●
Wide Field Diopter Adjustable,10X/FN=25mm,With Eyecup,-2~+8° 　 ○ ○
Wide Field Diopter Adjustable,10X/FN=26.5mm,With Eyecup ,-2~+8° 　 ○ ○

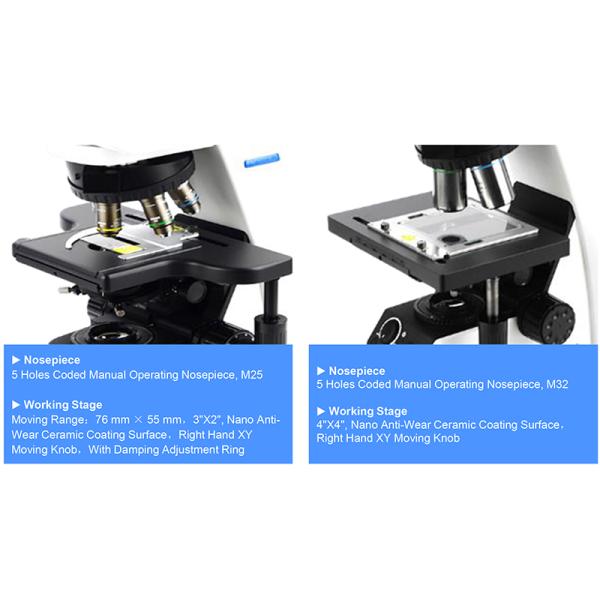

Nosepiece 5 Holes Coded Manual Operating Nosepiece, M25 A54.2202-11 ● 　
5 Holes Coded Manual Operating Nosepiece, M32 A54.2202-12 　 ●
5 Holes Coded Motorized Nosepiece 　 ○ ○
Objective Infinity Semi-APO BD Objective: 5x,10x,20x,50x,100x A5M.2227 ○ ●
Infinity Plan Achromatic Objective: 4x,10x,20x,40x,100x A52.2210 ● ○
Infinity Semi-APO Biological Objective: 4x,10x,20x,40x,100x 　 ○ ○
Infinity Semi-APO FL Objective: 4x,10x,20x,40x,100x 　 ○ ○
Infinity Apochromatic FL Objective: 4x,10x,20x,40x,100x 　 ○ ○
Infinity Plan Achromatic Metallurgical Objective: 5x,10x,20x,50x,100x 　 ○ ○
Infinity Plan Semi-APO Metallurgical Objective: 5x,10x,20x,50x,100x 　 ○ ○
Infinity Semi-APO Metallurgical LWD 95mm Objective: 5x,10x,20x,50x,100x 　 ○ ○
Infinity Apochromatic Metallurgical Objective: 5x,10x,20x,50x,100x 　 ○ ○
Working Stage Moving Range:76 mm × 55 mm,3"X2", Nano Anti-Wear Ceramic Coating Surface,Right Hand XY Moving Knob,With Damping Adjustment Ring A54.2204-2 ● ○
4"X4", Nano Anti-Wear Ceramic Coating Surface,Right Hand XY Moving Knob A54.2204-3 ○ ●
Condenser Abbe Condenser,N.A=1.1,4X~100X 　 ○ ○
Swing-out Condenser N.A=0.9,1.25X~100X(Support 1.25X~4X when swing out) A56.2201 ● ●
Multi-Function Condenser,Surpports Bright Field, Dark Field, Polorizing,N.A=1.1,4X~100X 　 ○ ○
Achromatic Aplanatic Condenser,N.A=1.4,10X~100X 　 ○ ○
Dark Field (Dry),N.A=0.92,10X~100X 　 ○ ○
Dark Field (Oil),N.A=1.4,10X~100X 　 ○ ○
Specimen Clip Specimen Clip, Left Hand, Double Slide Holder A54.2204-C1 ● 　
Metallurgical Specimen Clip,4"X4"Manaul Operating Glass Plate, For Tansmitation And Reflection A54.2204-C2 　 ●

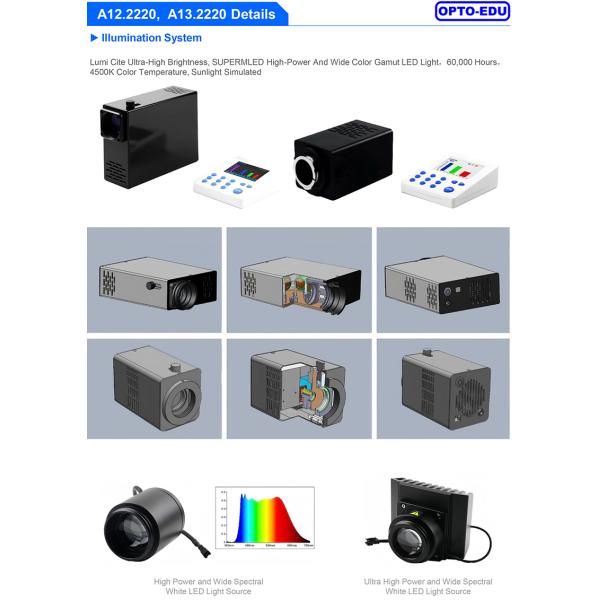

Illumination System Built-In Kohler Illumination System, ECO, Brightness Memories-LIM Control Function, Self-Power Supply (Power Output 18V/1A) & Support Body Switching To Control Reflection Illumination, SUPERMLEDTM Large Power(18W) Wide Color Gamut LED Light House, LIM- Brightness Density Adjustment Function And ECO (Power Save Function), Lifetime: 60000 Hours,4500K Color Temperature 　 ● ●
Reflection System 　 　 　
EPI Reflect Illuminator, with BF & DF Module, With Polarizing Slot A5M.2201-LV1 / ●
Reflect Metallurgical Illuminator,LED White Light,Brightness Field Reflection Module,With Polarizing Slot 　 ○ /
Reflect Fluorescent Illuminator,LED Fluorescent,Surpports DAPI/FITC/TxRED (Single Color, Double Color And Triple Color) 　 ○ /
Video Adapter 1X C-Mount,For 2/3”~ 4/3”Sensor 　 ○ ○
0.63X C-Mount,For 1/1.8”~ 2/3”Sensor (For A53.2201-STWA Use) A55.2201-63xA ○ ●
Camera 6.3 Million Pixel CMOS Camera,Including OPLENIC Pro Software of Image Acquisition, Measurement and Processing A59.2272-6.3M ○ ○
