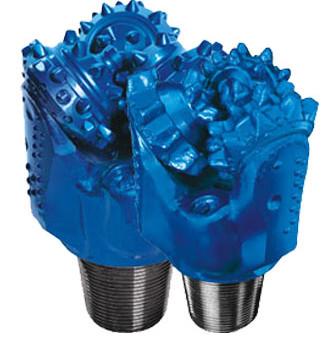

TCI tricone bit/ FGJ/GJTSeries Metal Sealed Roller Bearing Tricone Bit
TCI tricone bit/ FGJ/GJTSeries Metal Sealed Roller Bearing Tricone Bit
Specifications
Brand Name :
kingdream
Model Number :
FGJ/GJTSeries
Certification :
API7-1
Place of Origin :
china
MOQ :
1
Packaging Details :
according to customer requirement
material :
carbon steel
OD :
8 1/2-17 1/2 inch,
IADC :
115-445
certificate :
API7-1
useage :
well drilling
Description


FGJ/GJTSeries
Metal Sealed Roller Bearing Tricone Bit


The Range of FGJ/GJT series bit is 12 1/4-17 1/2 inch and its IADC code from114 to 545.

FGJ/GJT bit adopts metal seal with roller bearing,which can drill stably with middle to low WOB and middle to high RPM,it’s the ideal choice part of well section.

Main Features:
The rolling body is arranged on the cone body of the cylindrical groove, increase the shaft neck and rolling body size.
the limit pressure and prevent drilling fluid into the lubrication system of the rubber oil storage bursa, provide good lubrication for the bearing system.
The palm and dorsal tip welding hard material strengthened gauge, large size drill with center jet.
in the row between the teeth and the back cone tooth insert a row of protection cone and the borehole wall is repaired tooth row, forming a unique series of bit GJT.

TCI tricone bit/ FGJ/GJTSeries Metal Sealed Roller Bearing Tricone Bit

Size Bit Type
inch mm
8 1/2 215.9 GJ115C.GJT115C.GJT125C.GJ135G.GJT415G.GJT435G.GJT445G
9 1/2 241.3 GJ115C.GJT115C.GJT125C.GJ135G.GJT415G.GJT435G.GJT445G
12 1/4 311.2 GJ115C.GJT115C.GJT125C.GJ135G.GJT415G.GJT435G.GJT445G
16 406.4 GJ115C.GJT115C.GJT125C.GJ135G.GJT415G.GJT435G.GJT445G
17 1/2 444.5 GJ115C.GJT115C.GJT125C.GJ135G.GJT415G.GJT435G.GJT445G

TCI tricone bit/ FGJ/GJTSeries Metal Sealed Roller Bearing Tricone BitTCI tricone bit/ FGJ/GJTSeries Metal Sealed Roller Bearing Tricone BitTCI tricone bit/ FGJ/GJTSeries Metal Sealed Roller Bearing Tricone Bit

TCI tricone bit/ FGJ/GJTSeries Metal Sealed Roller Bearing Tricone BitTCI tricone bit/ FGJ/GJTSeries Metal Sealed Roller Bearing Tricone Bit
