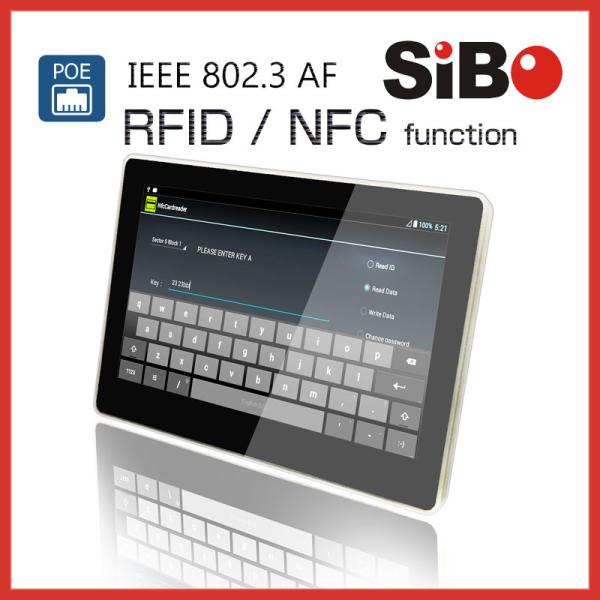

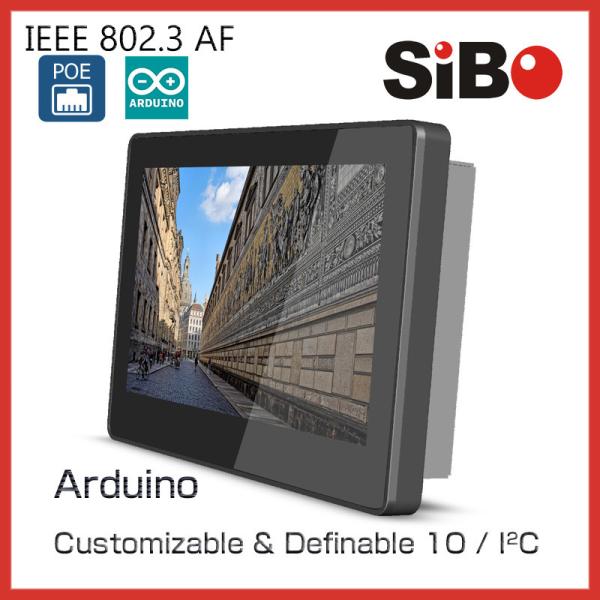

Wall Mounted POE Panel PC For Door Access Control
Wall Mounted POE Panel PC For Door Access Control
Wall Mounted POE Panel PC For Door Access Control
Wall Mounted POE Panel PC For Door Access Control
Wall Mounted POE Panel PC For Door Access Control
Wall Mounted POE Panel PC For Door Access Control
Wall Mounted POE Panel PC For Door Access Control
Wall Mounted POE Panel PC For Door Access Control
Specifications
Place of Origin :
Shenzhen
Brand Name :
SIBO
Certification :
CE, FCC
Model Number :
SIBO
MOQ :
1 unit
Delivery Time :
5-25 working days
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Price :
based on your feature choices
Packaging Details :
10 pcs in one carton
Wall Mount :
Inwall, Onwall, Glass Wall Mount
Power Supply :
DC IN 9V-36V/Power over Ethernet
Description

Wall Mounted POE Panel PC For Door Access Control



For smart home and control

  • IPS Screen (G+G glass)
  • Android OS
  • In wall / On wall version
  • CBVS , HDMI, Serial port , GPIO , Uart interface
  • No buttons design
  • Slim Body with 3 Brackets for wall mounting
  • Camera & Mic
  • Support ROOT permissions for private application
  • No battery design
  • Auto power on
  • 12V DC / 24V DC available for power
  • Auto web application (one web page can be showed only on the screen)
  • POE feature (IEEE 802.3 af)

Wall Mounted POE Panel PC For Door Access Control

Wall Mounted POE Panel PC For Door Access Control

Builtin HDMI (standard ) jack, CVBS port, Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200) ,GPIO In and Out

It is a wall Tablet PC / desktop Tablet PC, no battery , no buttons (with auto power on feature), it is a serial port Tablet , It is a GPIO tablet, all good features for home automation and so on...

A real POE tablet PC can works with POE standard of IEEE 8023.AF, compatible with 12V DC.

Model Number Q896
Hardware Specs Solution Allwinner’s A20 processor, a Dual-Core Cortex™-A7 CPU
CPU ARM Cortex A7 Dual-Core, 1.2Ghz
Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM 1GB
Nand Flash 8GB
　
Software Feature System Google Android 4.2.2
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers)
Language Support multi-languages
　
Interfaces Back HDMI Out
DC IN Power Terminal (9V-36V)
Ethernet Interface(RJ45)
CVBS IN
USB Socket HOST Mode By Default, Optional: Jumper Cap For Device Mode
Optional:RS232,RS485,1xGPIO IN,1xGPIO OUT
　
Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
　 LAN Port Ethernet RJ45
　
Power Supply DC IN DC 9V - 36V
　
Boot Up Auto Boot Auto Boot Up When Power Supplies


Wall Mounted POE Panel PC For Door Access Control

Q896 INTERFACE:

1.HDMI OUT
2.CVBS IN
3.DC IN (9-36V)
4.RJ45
5.USB
6.UART, IO , 3W AMP OUT
7.SLOTS FOR MOUNTING
8.SCREWS FOR MOUNTING

wall mount :

Wall Mounted POE Panel PC For Door Access Control

Wall Mounted POE Panel PC For Door Access Control

Wall Mounted POE Panel PC For Door Access Control

Wall Mounted POE Panel PC For Door Access Control


Powerful Android screen can be used for many applications, more details can be showed if any need, welcome OEM orders.
