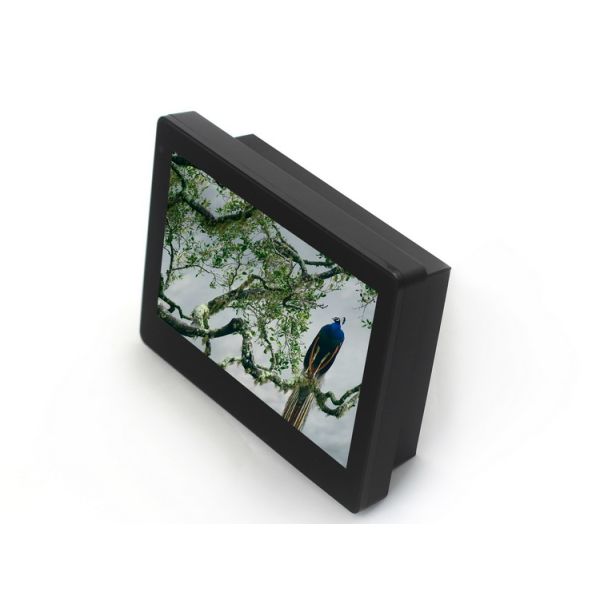

7 Inch RS232 HMI Android Touch Panel PC
7 Inch RS232 HMI Android Touch Panel PC
Specifications
Place of Origin :
Shenzhen
Brand Name :
SIBO
Certification :
CE, FCC
Model Number :
SIBO
MOQ :
1 unit
Price :
based on your feature choices
Delivery Time :
5-25 working days
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Packaging Details :
10 pcs in one carton
Description

7 Inch RS232 HMI Android Touch Panel PC
The SIBO Android Tablet PC can directly be embedded into a wall, be placed on wall / or desktop with rich Android application for home application and so on...

7 Inch RS232 HMI Android Touch Panel PC
SIBO Q896 In Wall Android RS232 Table
For smart home and control

  • IPS Screen (G+G glass)
  • Android OS
  • In wall / On wall version
  • CVBS , HDMI, Serial port , GPIO , Uart interface
  • No buttons design
  • Slim Body with 3 Brackets for wall mounting
  • Camera & Mic
  • Support ROOT permissions for private application
  • No battery design
  • Auto power on
  • 12V DC / 24V DC available for power
  • Auto web application (one web page can be showed only on the screen)
  • POE feature (IEEE 802.3 af)
Model NumberQ896
Hardware SpecsSolutionAllwinner Dual-Core Cortex™-A7 CPU
CPUARM Cortex A7 Dual-Core, 1.2Ghz
Display7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM1GB
Nand Flash4GB
Software FeatureSystemGoogle Android 4.2.2
VideoH.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
AudioIntegrated 3W Amplifier (No Speakers, Only Speaker connector)
LanguageSupport multi-languages
InterfacesBackEthernet Interface(RJ45)
HDMI Out
USB Socket
CVBS IN
DC IN Power Terminal
UART, IO, 3W AMP OUT Available
NetworkWIFI+BLUETOOTHWIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0
LAN PortEthernet RJ45
Power SupplyDC INDC 9V - 36V
Boot UpAuto BootAuto Boot Up When Power Supplies
SoftwareAuto Run Web App


7 Inch RS232 HMI Android Touch Panel PC

Built in HDMI (standard ) jack, CVBS port , Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200) ,GPIO In and Out

It is Wall Tablet , no battery , no buttons (with auto power on feature), it is Serial port Tablet , It is a GPIO tablet, all good features for home automation and so on...

A real POE tablet PC can works with POE standard of IEEE 8023.AF, compatible with 12V DC.

7 Inch RS232 HMI Android Touch Panel PC

Q896 INTERFACE:

1.HDMI OUT
2.CVBS IN

3.DC IN (9-36V)

4.RJ45

5.USB
6.UART, IO , 3W AMP OUT
7.SLOTS FOR MOUNTING
8.SCREWS FOR MOUNTING

Tablet with RS232

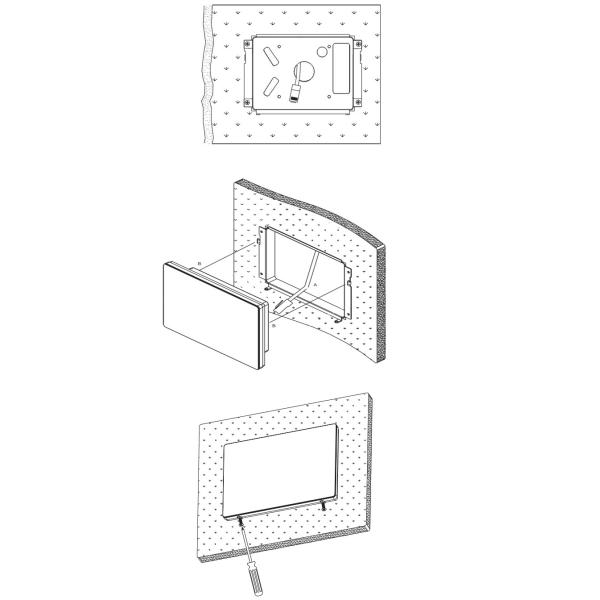

In wall installation:

7 Inch RS232 HMI Android Touch Panel PC
Welcome OEM orders
