On Wall Mount Android Tablet PC For Access Control Door Phone
On Wall Mount Android Tablet PC For Access Control Door Phone
On Wall Mount Android Tablet PC For Access Control Door Phone
On Wall Mount Android Tablet PC For Access Control Door Phone
On Wall Mount Android Tablet PC For Access Control Door Phone
On Wall Mount Android Tablet PC For Access Control Door Phone
On Wall Mount Android Tablet PC For Access Control Door Phone
On Wall Mount Android Tablet PC For Access Control Door Phone
Specifications
Place of Origin :
Shenzhen
Brand Name :
SIBO
Certification :
CE, FCC
Model Number :
SIBO
MOQ :
1 unit
Delivery Time :
5-25 working days
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Price :
based on your feature choices
Packaging Details :
10 pcs in one carton
Wall Mount :
Inwall Flush Mount, Onwall Surface Mount, Glass Wall Mount
Power Supply :
DC IN 9V-36V/Power over Ethernet
Protocol :
SIP
System :
Android 4.2
Speakers :
2x1watt
Microphone :
Built-IN
Camera :
Front Camera, Back CVBS Port
Description

On Wall Mount Android Tablet PC For Access Control Door Phone
On Wall Mount Android Tablet PC For Access Control Door Phone

Q896 model with below features :

  • Android OS
  • Wall mounted design
  • Mic and Speaker (on the back), no button or port on the face
  • SIP Protocol
  • Ethernet port, Power over Ethernet
  • Serial port
  • Auto power on feature, no built in power battery
  • Support wide voltage supply, 9-36V (with AC100V-240V power adapter)
  • 24 hours/7 days continaully work



On Wall Mount Android Tablet PC For Access Control Door Phone
On Wall Mount Android Tablet PC For Access Control Door Phone

Q896 Interface:

1.HDMI OUT
2.CVBS IN
3.DC IN (9-24V)
4.RJ45
5.USB
6.UART, IO , 3W AMP OUT
7.SLOTS FOR MOUNTING
8.SCREWS FOR MOUNTING
Model Number Q896
Hardware Specs Solution Allwinner’s A20 processor, a Dual-Core Cortex™-A7 CPU
CPU ARM Cortex A7 Dual-Core, 1.2Ghz
Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM 1GB
Nand Flash 8GB
　
Software Feature System Google Android 4.2.2
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers)
Language Support multi-languages
　
Interfaces Back HDMI Out
DC IN Power Terminal (9V-36V)
Ethernet Interface(RJ45)
CVBS IN
USB Socket HOST Mode By Default, Optional: Jumper Cap For Device Mode
Optional:RS232,RS485,1xGPIO IN,1xGPIO OUT
　
Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
　 LAN Port Ethernet RJ45
　
Power Supply DC IN DC 9V - 36V
　
Boot Up Auto Boot Auto Boot Up When Power Supplies
Optional Features:
  • RS232, RS485, UART
  • GPIO
  • Three color LED light on the top
  • Temperature and humidity sensor
  • NFC
  • board
On Wall Mount Android Tablet PC For Access Control Door Phone

Support RJ45 POE / WIFI

On Wall Mount Android Tablet PC For Access Control Door Phone
On Wall Mount Android Tablet PC For Access Control Door Phone

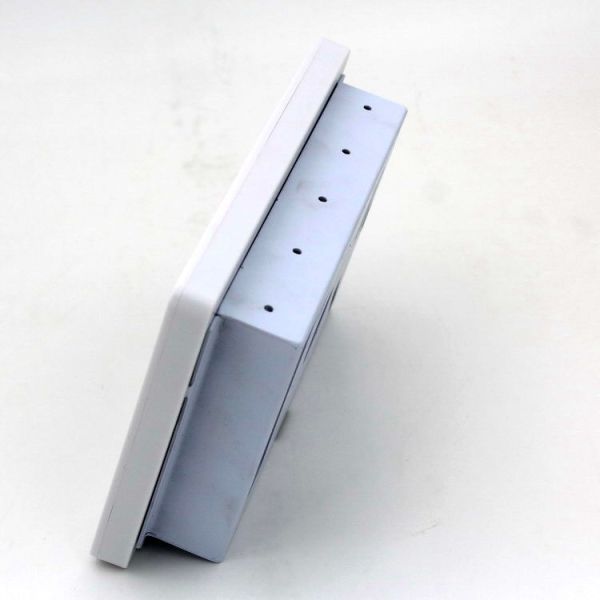

On wall mount installation
On Wall Mount Android Tablet PC For Access Control Door Phone

Welcome OEM orders
