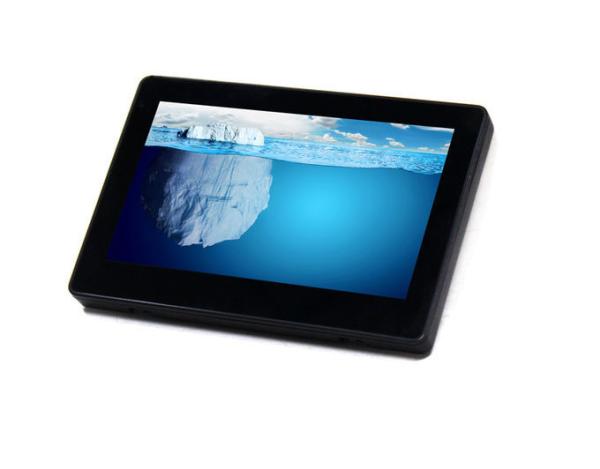

7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
Specifications
Brand Name :
SIBO
Model Number :
SIBO
Certification :
CE, FCC
Place of Origin :
Shenzhen
MOQ :
1 unit
Price :
based on your feature choices
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-25 working days
Packaging Details :
10 pcs in one carton
Size :
7 inch IPS touch screen Panel
Serial Port :
RS232/RS485
GPIO :
1x input, 1x output, 1x ground
POE Power :
IEEE802.3af, 48V
LED Light Bar :
3 color on top
NFC Reader :
Build in
Android Version :
6.0.1
Brackets for installation :
Inwall, onwall, glass wall, desktop
Warranty :
One year
Description

7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control


7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control

For industiral control:
  • IPS Screen (G+G glass)
  • Android OS
  • Inwall / Onwall version
  • Serial port , GPIO , Uart interface
  • No buttons design
  • Tablet with 3 Brackets for wall mounting
  • Camera & Mic
<
Model Number Q896S
Hardware Specs Processor Allwinner A83T processor
CPU 8-Core ARM Cortex A7 CPU, 1.2Ghz
Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM 2GB
Nand Flash 8GB
Software Feature System Google Android 6.0
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers)
Language Support multi-languages
Interfaces Back HDMI Out
DC IN Power Terminal (9V-36V)
Ethernet Interface(RJ45)
USB Socket HOST Mode By Default, Can be configurated to DEVICE
Optional:RS232,RS485
Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
LAN Port Ethernet RJ45
Power Supply DC IN DC 9V - 36V
Boot Up Auto Boot Auto Boot Up When Power Supplies



Notice: There is no any battery and buttons as normal Tablet PC , auto power on is available !

Builtin HDMI (standard ) jack, CVBS port , Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200, RS485 / RS232/UART)
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control


Desktop bracket and the mounting picture:
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
Flush mounting installation:
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control
On wall mounting:
7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control

7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control

On wall metal box mount:

7 Inch Serial Port Android Tablet With Wall Brackets For Industrial Control

Shipping information:

Packaging 10 units/ ctn
Carton dimension 28.5x27.8x31.5cm
Weight 7.5kg/ctn
Shipping Fedex/DHL/UPS/TNT or your option
Delivery day Sample:3-5 days, batch goods:20-25 days
Warranty 12 months
