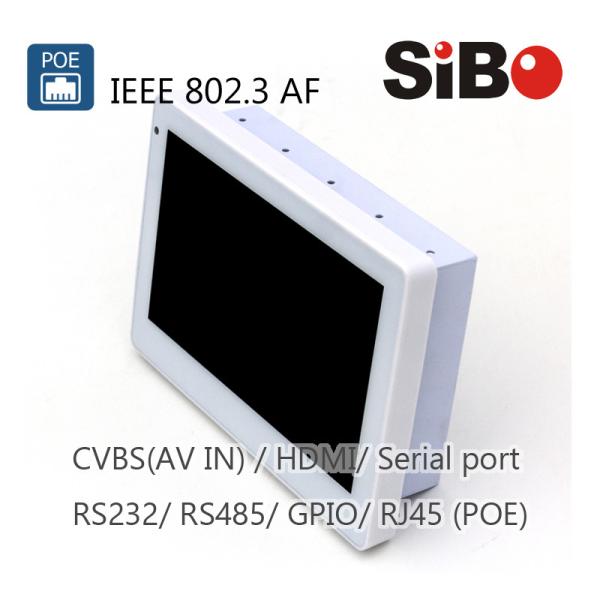

Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Specifications
Brand Name :
SIBO
Model Number :
SIBO
Certification :
CE, FCC
Place of Origin :
Shenzhen
MOQ :
1 unit
Price :
based on your feature choices
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-25 working days
Packaging Details :
10 pcs in one carton
CPU :
ARM Cortex A7 Dual-Core, 1.2Ghz
Display :
7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM :
2GB
ROM :
8GB
System :
Android 6.0.1
Audio :
7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
Interface :
DC IN, HDMI out, POE rj45, USB, CVBS IN,RS232,RS485,GPIO
Color :
Black, White
Power supply :
DC IN/ POE
DC IN :
9V-36V
POE :
IEEE802.3af.48V
Network :
Ethernet/3G/WIFI
Battery :
RTC battery
Application :
Smart Meeting Room Booking Schedule
Feature :
LED light bar, POE
Description
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar

LED light bar demo performance by GPIO controlling:

https://youtu.be/r_CgXzzt2Xo
SIBO Q896 In Wall Android RS232 Tabletle
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
SIBO Q896 In Wall Android RS232 Tablet
Smart Meeting Room Booking Schedule:

  • IPS Screen (G+G glass)
  • Android OS 6.0.1
  • In wall / On wall version
  • CVBS , HDMI, Serial port , GPIO , Uart interface
  • No buttons design
  • Slim Body with 3 Brackets for wall mounting
  • Camera & Mic
  • Support ROOT permissions for private application
  • No battery design
  • Auto power on
  • 12V DC / 24V DC available for power
  • Auto web application (one web page can be showed only on the screen)
  • POE feature (IEEE 802.3af.48v)
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Model Number Q896S
Hardware Specs Solution Allwinner’s A83T processor
CPU Octa-core Cortex tm-7a CPU A83T 1.2Ghz
Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM 2GB
Nand Flash 8GB
Software Feature System Google Android 6.0.1
Audio One Speaker 2 X 1 Watt (Integrated 3W Amplifier)
Language Support multi-languages
Interfaces Back Ethernet Interface(RJ45)
HDMI Out
USB 2.0 port USD HOST Mode Default, Optional: Jumper Cap for Device Mode
DC IN Power Terminal (9V-36V)
Optional:RS232,RS485,1xGPIO IN, 1xGPIO OUT
Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth 4.0 support BLE
LAN Port Ethernet RJ45
Power Supply DC IN or PoE DC 9V - 36V or PoE
Boot Up Auto Boot Auto Boot Up When Power Supplies
Builtin HDMI (standard ) jack, Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200) ,GPIO In and Out

It is Wall Tablet , no battery , no buttons (with auto power on feature), it is Serial port Tablet , It is a GPIO tablet, all good features for home automation and so on...

A real POE tablet PC can works with POE standard of IEEE 802.3AF, compatible with 12V DC.

Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar

Q896 INTERFACE:
1.HDMI OUT
2.CVBS IN(moved out)
3.DC IN (9-24V)
4.RJ45 (POE IEEE802.3 af)
5.USB
6.UART, IO , 3W AMP OUT
7.SLOTS FOR MOUNTING
8.SCREWS FOR MOUNTING
Benefits of POE :
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
  • Cost Saving
PoE significantly reduces the need for electricians to install conduit, electrical wiring, and outlets throughout the enterprise. With PoE only one cable – a simple CAT-5 Ethernet – is required. Estimates of cost savings using PoE range from $500 to $1,000 per port. In larger settings, this represents a major cost reduction.
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
  • Flexibility
A PoE appliance or device can be located anywhere without the need for AC outlets. For example, wireless LAN access points can be located – and relocated – on or near ceilings, to fine tune optimum RF reception. For example, customers often find that access points are more effective on the ceiling, out of reach from an AC outlet.
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
  • Reliability
Because PoE networks have fewer wires, there is less likelihood of an inadvertent power disruption (accidental shut off, etc). With an Uninterrupted Power Supply (UPS) power to the devices is assured during a power failure.
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
  • Network Control
Using SNMP, network administrators can monitor and control powered devices, including resetting or shut-off. This allows increased security, as devices can be powered down when not in use, or if there is unauthorized access.
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
  • Safety
Power mains are eliminated. Since only 48v DC is used, PoE conforms to Underwriter's Laboratories (UL) Safety Extra Low Volt
With Multi Color Controllable Indicator on the top (red / green / blue)
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar

Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar


Poe Feature:

Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar

Tablet with RS232 (With RS232 to RS485 Converter/ DuPont connector):

Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar

Max double RS232 / TTL interfaces available
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar

Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar

Tablet with RS485

Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar

SIBO Q896 In Wall Android RS232 TabPowerful Android screen can be used for many applications, more details can be showed if any need, welcome OEM orders.
POE tablet Wall Tablet POE screen Wall mounted Tablet SIBO Wall Tablet SIBO Q896 No button Android screen Wall LCD Android Flush mounted Tablet POE LCD embedded touch LCD Android RS232 Android RS485 Android GPIO RS485 touch screen RS232 touch screen in wall LCD in wall touch screen Wall mounted touch screen Wall mounted Android display RS232 touch display RS485 touch display serial port display GPIO touch display POE display POE touch screen POE touch LCD Ethernet tablet Ethernet touch screen power over Ethernet screen Android POE flush mounting touch screen Wall Android RJ45 Android RJ45 tablet SIBO Q8 SIBO android screen SIBO home automation SIBO intercom SIBO Q899 desktop Android screen table screen intercom Android screen Tablet for smart home Tablet for home automation Android smart home POE Touch Screen Panel PC POE tablet Wall Tablet POE screen Wall mounted Tablet SIBO Wall Tablet POE powered Tablet POE LCD POE wall screen in wall Android screen Wall Tablet PC SIBO Q896 No button Android screen Wall LCD Android Flush mounted Tablet POE powered tablet desk tablet GPIO tablet Android POE LCD POE LCD with RS232 POE LCD with RS485 POE LCS with serial port Android table with serial port Android serial port tablet GPIO LCD GPIO Android screen wall mount android tablet poe 7" android tablet poe SIBO POE tablet IEEE 802.3 AF POE tablet VESA tablet PC surface mounting tablet wall mount Android panel PC POE panel PC POE LCD android POE display Android home automation LCD smart home LCD SIP tablet SIP android home automation SIP door Android screen touch screen POE Android display with POE touch LCD with POE Video intercom tablet intercom tablet Echo cancellation tablet great sound tablet PC with power amplifier embedded tablet PC embedded Android RJ45 tablet PC Ethernet tablet PC Ethernet Android PC Ethernet Android display GPIO control RS232 Android control RS485 Android control Rugged tablet Solid tablet PC Industrial tablet PC smart building tablet smart building controller screen In Wall Android Tablet For Home Automation 9 Inch In Wall Flush Mount Android Tablet 7" RS485 Tablet with GPIO and CVBS 7" RS485 Tablet with GPIO and CVBS RS485 Android LCD RS485 Android screen RS485 HMI RS485 touch screen RS485 LCD Wall control pad Ethernet pad POE in wall controller Touchscreen Keypad for VoIP Intercom POE TOUCH PANEL PC Tablet Powered via Power-over-Ethernet 7" POE multi-touch screen RUGGED TOUCH MONITOR DISPLAYS wall mounted Android tablet with POE tablet LAN POE Tablet with POE and Ethernet connection HMI Android Panel PC 7" POE Panel PC POE Control Panel Touch Panel PC with Power over Ethernet POE IEEE 802.3 af tablet Flush Mount Android Tablet With Serial Port Tablet PC with TTL UART TABLET PC TTL control screen UART Android LCD Amplifier Tablet SIP Stack Tablet Wall Mounted Android Panel PC LAN Surface Mounting Wall Tablet PC 9" Wall Mounted Android Tablet with POE RS232 RS485 Wi-Fi 3G, RJ-45 Ethernet Port 7 Inch Android Tablet PC RJ45 POE Android POE Wall Mounted Tablet for Employee Time Clock In Wall Android POE LCD 7 Inch Wall Ethernet RJ45 Android Tablet 7inch Touch Panel PC Android In-wall Casing Wall Installation tablet Wall Mount Panel Computer android With Ethernet 3G WIFI Serial Port Rugged wall Android Touch Pad Wall Mounting Home Automation Controller POE Screen With RS232 RS485 Android Screen For Home Automation Control Wall Bracket Android Tablet PC With RJ45 POE RS232 tablet Industrial tablet with RS232 RS485 tablet PC Android Power over Ethernet TFT LCD touch displayer HMI with rs232 /TTL serial interface IP intercom tablet CVBS AV tablet AV in tablet HDMI tablet CVBS tablet IPS wall tablet wall IPS display Dual RS232 / TTL Android Tablet PC Dual TTL Tablet PC Double RS232 Tablet PC Tablet RS232 Tablet RS485

The SIBO Android Tablet PC can directly be embedded into a wall, be placed on wall / or desktop with rich Android application for home application and so on...

7 Inch Enhanced Tablet PC With RS232 / RS485 / P

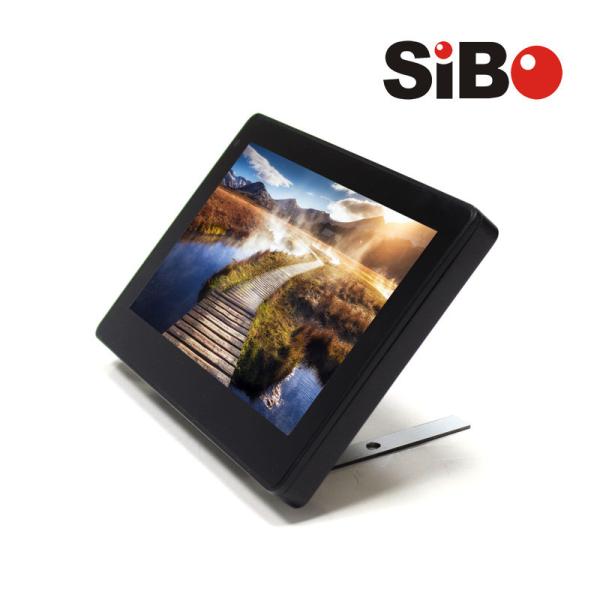

Desktop bracket and the mounting picture:

Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar

Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Flush mounting installation:
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
On wall mounting:
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar
Sibo Android tablet POE IEEE802.3AF.48v DC IN Q896S 6.0 system with LED light bar

Powerful Android screen can be used for many applications, more details can be showed if any need, welcome OEM orders.
POE tablet Wall Tablet POE screen Wall mounted Tablet SIBO Wall Tablet SIBO Q896 No button Android screen Wall LCD Android Flush mounted Tablet POE LCD embedded touch LCD Android RS232 Android RS485 Android GPIO RS485 touch screen RS232 touch screen in wall LCD in wall touch screen Wall mounted touch screen Wall mounted Android display RS232 touch display RS485 touch display serial port display GPIO touch display POE display POE touch screen POE touch LCD Ethernet tablet Ethernet touch screen power over Ethernet screen Android POE flush mounting touch screen Wall Android RJ45 Android RJ45 tablet SIBO Q8 SIBO android screen SIBO home automation SIBO intercom SIBO Q899 desktop Android screen table screen intercom Android screen Tablet for smart home Tablet for home automation Android smart home POE Touch Screen Panel PC POE tablet Wall Tablet POE screen Wall mounted Tablet SIBO Wall Tablet POE powered Tablet POE LCD POE wall screen in wall Android screen Wall Tablet PC SIBO Q896 No button Android screen Wall LCD Android Flush mounted Tablet POE powered tablet desk tablet GPIO tablet Android POE LCD POE LCD with RS232 POE LCD with RS485 POE LCD with serial port Android tablet with serial port Android serial port tablet GPIO LCD GPIO Android screen wall mount android tablet poe 7" android tablet poe SIBO POE tablet IEEE 802.3 AF POE tablet VESA tablet PC surface mounting tablet wall mount Android panel PC POE panel PC POE LCD android POE display Android home automation LCD smart home LCD SIP tablet SIP android home automation SIP door Android screen touch screen POE Android display with POE touch LCD with POE Video intercom tablet intercom tablet Echo cancellation tablet great sound tablet PC with power amplifier embedded tablet PC embedded Android RJ45 tablet PC Ethernet tablet PC Ethernet Android PC Ethernet Android display GPIO control RS232 Android control RS485 Android control Rugged tablet Solid tablet PC Industrial tablet PC smart building tablet smart building controller screen In Wall Android Tablet For Home Automation 9 Inch In Wall Flush Mount Android Tablet 7" RS485 Tablet with GPIO and CVBS 7" RS485 Tablet with GPIO and CVBS RS485 Android LCD RS485 Android screen RS485 HMI RS485 touch screen RS485 LCD Wall control pad Ethernet pad POE in wall controller Touchscreen Keypad for VoIP Intercom POE TOUCH PANEL PC Tablet Powered via Power-over-Ethernet 7" POE multi-touch screen RUGGED TOUCH MONITOR DISPLAYS wall mounted Android tablet with POE tablet LAN POE Tablet with POE and Ethernet connection HMI Android Panel PC 7" POE Panel PC POE Control Panel Touch Panel PC with Power over Ethernet POE IEEE 802.3 af tablet Flush Mount Android Tablet With Serial Port Tablet PC with TTL UART TABLET PC TTL control screen UART Android LCD Amplifier Tablet SIP Stack Tablet Wall Mounted Android Panel PC LAN Surface Mounting Wall Tablet PC 9" Wall Mounted Android Tablet with POE RS232 RS485 Wi-Fi 3G, RJ-45 Ethernet Port 7 Inch Android Tablet PC RJ45 POE Android POE Wall Mounted Tablet for Employee Time Clock In Wall Android POE LCD 7 Inch Wall Ethernet RJ45 Android Tablet 7inch Touch Panel PC Android In-wall Casing Wall Installation tablet Wall Mount Panel Computer android With Ethernet 3G WIFI Serial Port Rugged wall Android Touch Pad Wall Mounting Home Automation Controller POE Screen With RS232 RS485 Android Screen For Home Automation Control Wall Bracket Android Tablet PC With RJ45 POE RS232 tablet Industrial tablet with RS232 RS485 tablet PC Android Power over Ethernet TFT LCD touch displayer HMI with rs232 /TTL serial interface IP intercom tablet CVBS AV tablet AV in tablet HDMI tablet CVBS tablet IPS wall tablet wall IPS display Dual RS232 / TTL Android Tablet PC Dual RS232 / TTL Android Tablet PC Double RS232 Tablet PC POE touch screen PD LCD IEEE 802.3af compliant Power over Ethernet Android PD Android Powered Device In-Wall Android Touch Screen Android wall LCD android tablet LAN LCD android tablet LAN tablet LAN RJ45 100Mbps Ethernet Tablet rs232 port Touch Screen for Intercom Video Door Phone 7 inch tablet with RJ45
