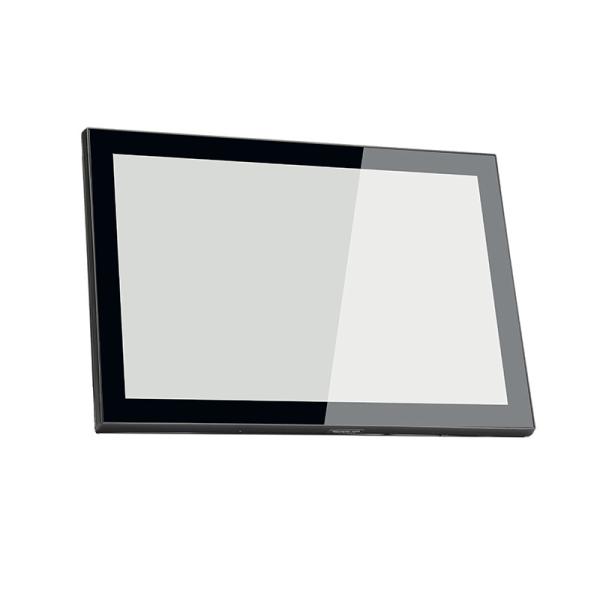

10.1 Inch Android Tablet As A Scheduling Panel For Control System
10.1 Inch Android Tablet As A Scheduling Panel For Control System
10.1 Inch Android Tablet As A Scheduling Panel For Control System
10.1 Inch Android Tablet As A Scheduling Panel For Control System
10.1 Inch Android Tablet As A Scheduling Panel For Control System
10.1 Inch Android Tablet As A Scheduling Panel For Control System
10.1 Inch Android Tablet As A Scheduling Panel For Control System
10.1 Inch Android Tablet As A Scheduling Panel For Control System
10.1 Inch Android Tablet As A Scheduling Panel For Control System
10.1 Inch Android Tablet As A Scheduling Panel For Control System
Specifications
Brand Name :
SIBO
Model Number :
SIBO
Certification :
CE, FCC
Place of Origin :
Shenzhen
MOQ :
1 unit
Price :
USD 163-193 piece
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-25 working days
Packaging Details :
10 pcs in one carton
System :
Android 6.0
Resolution :
1280*800
Size :
10.1 inch IPS touch screen Panel
Optional feature :
NFC, POE, Proximity sensor
Power :
POE IEEE802.3AF 48V, DC IN 12V/1500mA
CPU :
8-Core ARM Cortex A7 CPU, 1.2Ghz
Color :
black color
Bracket :
Inwall/onwall/glass wall
LED :
RGB LED lights
Description

10.1 Inch Android Tablet As A Scheduling Panel For Control System


Key features:

  1. PoE: IEEE802.3AF
  2. Inwall mount bracket
  3. Full glass touch screen
  4. Auto boot up with power
  5. Proximity sensor to wake up screen
  6. Ambient light sensor to adjust screen brightness according to the environment
  7. NFC reader, front reading, provide demo app and source code
  8. GPIO input and output

Demo app for gpio control is provided, and we provide source code of demo app for your software integration.

NFC reader for Tablet pc

  • Support Mifare MF1 IC S50 CARD
  • (ISO/IEC 14443A)

  • Mifare classic chip

  • 13.56 MHz

10.1 Inch Android Tablet As A Scheduling Panel For Control System
10.1 Inch Android Tablet As A Scheduling Panel For Control System

Hardware features:

Hardware SpecsSolutionAllwinner A83T processor
CPU8-Core ARM Cortex A7 CPU, 1.2Ghz
Display10.1 Inch IPS Display,Resolution:1280 x 800,Brightness:350 nit, Ratio:16:10
Touch ScreenCapacitive Touch Screen, 5 Points Touch
RAM2GB
Nand Flash8GB
Sound System1W X 1, With Speaker Tunnel
DimensonsHeight:167mm, Width:249 mm, Depth:26mm


Software:

Software FeatureSystemGoogle Android 6.0.1
VideoH.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
AudioIntegrated Hi-Fi 100dB audio codec
Dual analog mic amplifiers
LanguageSupport multi-languages



Standard & Optional feature:

Standard WiFi
Bluetooth
Camera
Power Adapter
Optional Accessories
Power over Ethernet, IEEE802.3af
LED Bar on the left and right (Red, Green, Blue, Adjustable Brightness)
NFC Reader (Support Mifare MF1 IC S50 CARD (ISO/IEC 14443A))
Proximity Sensor (PS) and Ambient Light Sensor (ALS)
RS232 or RS485 or GPIO (only one feature available in one unit)
Installation Bracket With 23 Degrees Angle For Inwall/Onwall/Desktop Mount



10.1 Inch Android Tablet As A Scheduling Panel For Control System10.1 Inch Android Tablet As A Scheduling Panel For Control System10.1 Inch Android Tablet As A Scheduling Panel For Control System
10.1 Inch Android Tablet As A Scheduling Panel For Control System



RS485 for tablet pc
10.1 Inch Android Tablet As A Scheduling Panel For Control System

RGB LED light bar on the right and left side
10.1 Inch Android Tablet As A Scheduling Panel For Control System
