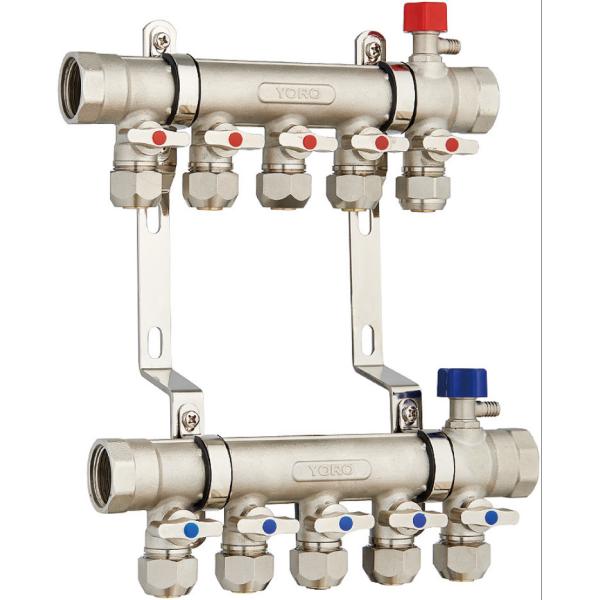

6213Y Hot Forged Brass Ball Valve Water Distribution Manifolds 45mm branch spacing W/ Main Supply & Return Air Exhausts
6213Y Hot Forged Brass Ball Valve Water Distribution Manifolds 45mm branch spacing W/ Main Supply & Return Air Exhausts
6213Y Hot Forged Brass Ball Valve Water Distribution Manifolds 45mm branch spacing W/ Main Supply & Return Air Exhausts
6213Y Hot Forged Brass Ball Valve Water Distribution Manifolds 45mm branch spacing W/ Main Supply & Return Air Exhausts
6213Y Hot Forged Brass Ball Valve Water Distribution Manifolds 45mm branch spacing W/ Main Supply & Return Air Exhausts
6213Y Hot Forged Brass Ball Valve Water Distribution Manifolds 45mm branch spacing W/ Main Supply & Return Air Exhausts
6213Y Hot Forged Brass Ball Valve Water Distribution Manifolds 45mm branch spacing W/ Main Supply & Return Air Exhausts
6213Y Hot Forged Brass Ball Valve Water Distribution Manifolds 45mm branch spacing W/ Main Supply & Return Air Exhausts
Specifications
Brand Name :
YORO
Model Number :
6213Y
Certification :
ISO9001, ISO14001, ISO45001Etc.
Place of Origin :
Zhejiang, China
MOQ :
500 pairs
Price :
To be Negotiated
Payment Terms :
T/T
Supply Ability :
50000 pcs per month
Delivery Time :
25-30 working days
Packaging Details :
each pair in an inner box with foam packing
Name :
Hot Forged Brass Ball Valve Water Distribution Manifolds 45mm branch spacing with Main Supply and Return Air Exhausts
Maximum Pressure Rate :
8 Bar Hydraulic
Working Temp. :
5℃ To 95℃
Workable Media :
Cold & Hot Water
Body Material :
Hot forged Brass Nickel plated
Main Tube Connections :
F1" (x4) according to BSPP type
Branch Connections :
Al-PL Pipe Adapter 12-16 Or 16-20
Vertical spacing :
220mm
Branch spacing :
45mm
Wall Thickness :
2.2mm Min.
Description

6213 Hot Forged Brass Ball Valve Water Distribution Manifolds 45mm branch spacing with Main Supply and Return Air Exhausts

Branches

2

3

4

5

6

7

8

Total Length(mm)

100

145

190

235

280

325

370

6213Y Hot Forged Brass Ball Valve Water Distribution Manifolds 45mm branch spacing W/ Main Supply & Return Air Exhausts
