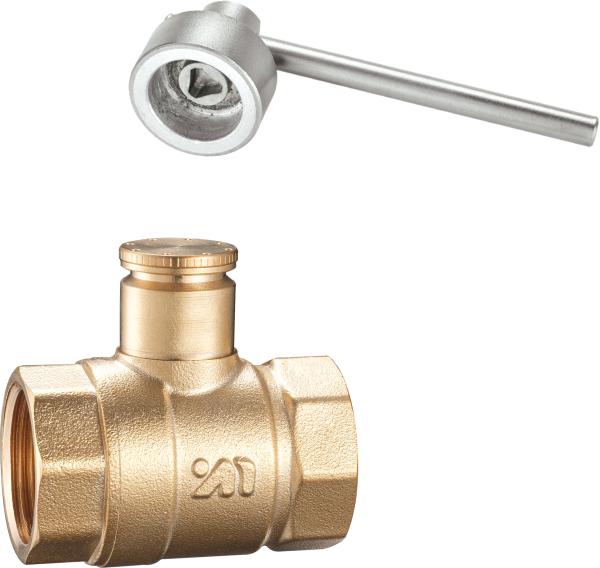

1301 Magnetic Lockable Water Meter Valve Ball Type DN15 DN20 DN25 DN32 DN40 DN50 with Dust Proof Cover for Lead Seal
1301 Magnetic Lockable Water Meter Valve Ball Type DN15 DN20 DN25 DN32 DN40 DN50 with Dust Proof Cover for Lead Seal
1301 Magnetic Lockable Water Meter Valve Ball Type DN15 DN20 DN25 DN32 DN40 DN50 with Dust Proof Cover for Lead Seal
1301 Magnetic Lockable Water Meter Valve Ball Type DN15 DN20 DN25 DN32 DN40 DN50 with Dust Proof Cover for Lead Seal
1301 Magnetic Lockable Water Meter Valve Ball Type DN15 DN20 DN25 DN32 DN40 DN50 with Dust Proof Cover for Lead Seal
1301 Magnetic Lockable Water Meter Valve Ball Type DN15 DN20 DN25 DN32 DN40 DN50 with Dust Proof Cover for Lead Seal
1301 Magnetic Lockable Water Meter Valve Ball Type DN15 DN20 DN25 DN32 DN40 DN50 with Dust Proof Cover for Lead Seal
1301 Magnetic Lockable Water Meter Valve Ball Type DN15 DN20 DN25 DN32 DN40 DN50 with Dust Proof Cover for Lead Seal
Specifications
Brand Name :
YORO
Model Number :
1301
Certification :
ISO9001, ISO14001, ISO45001
Place of Origin :
Zhejiang, China
MOQ :
1000pcs per size (DN15-DN25), 500pcs per size (DN32-DN50)
Price :
EX. WORKS or FOB Ningbo (To be Negotiated)
Payment Terms :
T/T
Supply Ability :
100000 pcs per month
Delivery Time :
25-30 working days
Packaging Details :
with a plastic bag inside for each piece, and several pieces in an export outer carton for delivery
Product Name :
Magnetic Lockable Water Meter Valve Ball Type with Dust Proof Cover for Lead Seal
Stemhead Pattern :
Triangle
Sizes :
DN15 DN20 DN25 DN32 DN40 DN50
Connection Ends :
Equal Female Screws at both ends G1/2", G3/4", G1", G1.1/4", G1.1/2", G2"
Main Materials :
Hot forged Brass 57-3 Body and Bonnet and Stem and Cover, Polished & Chromed Brass Ball
Nominal Pressure :
1.6 MPa Max. Water pressure
Temperature of Media :
-5℃ to 95℃
Workable Media :
Cold / Hot Water
Operation :
Manually Quarter Turn to Full Open / CLose
Test :
100% Air Leaking Check at 0.6-0.8MPa
Description

1301 Magnetic Lockable Water Meter Valve Ball Type DN15 DN20 DN25 DN32 DN40 DN50 with Dust Proof Cover for Lead Seal

Triangle Pattern Magnetic Lockable Water Meter Valve Ball Type with Dust Proof Cover for Lead Seal

DN

15

20

25

32

40

50

Threaded Ends

F1/2"xF1/2"

F3/4"xF3/4"

F1"xF1"

F1.1/4"xF1.1/4"

F1.1/2"xF1.1/2"

F2"xF2"

Application

Ball Valve is a widely adopted model for cutting off, direction-changing and/or distributing the flow in middle-low pressure pipeline, which features fast operation, low pressure lose and easy maintenance. To prolong the service life of a ball valve, it is highly suggested to always keep the ball in fully OPEN or CLOSE position.
