Specifications
Brand Name :
YORO
Model Number :
1203
Certification :
ISO9001, ISO14001, ISO45001Etc.
Place of Origin :
Zhejiang, China
MOQ :
500-1000pcs per shipment, more quantity may be necessary for special requirements like materials, packing way, and etc.
Price :
Factory wholesale price
Payment Terms :
T/T deposit before production + balance payment before shipment
Supply Ability :
100000 pcs per month
Delivery Time :
25-30 working days
Packaging Details :
Individual poly bag, then massively packed in export cartons
Product Name :
Magnetic Lockable Brass Ball Valve With Polygon Patterned Stemhead & Bottom Stainless Steel Strainer
Available Size :
DN20_3/4", DN25_1", DN32_1-1/4", DN40_1-1/2", DN50_2"
Connection Type :
G3/4" X G3/4", G1" X G1", G1-1/4" X G1-1/4", G1-1/2" X G1-1/2", G2" X G2"
Main Materials :
Hot Stamped Copper Zinc Alloy 57-3 for body and bonnet
Strainer :
10 Mesh Stainless Steel, other Sizes available
Temperature of Media :
-10℃ To 100℃
Pressure Rate :
16 Bar Maximum Water Pressure
Workable Media :
Cold & Hot Water, or non-aggressive Fluids
Apperance :
Sand shot natural brass
Pre-delivery Test :
100% Air leaking test at 6-8 Bar
Flow Direction :
One way as "Arrow" marked on Body
Description

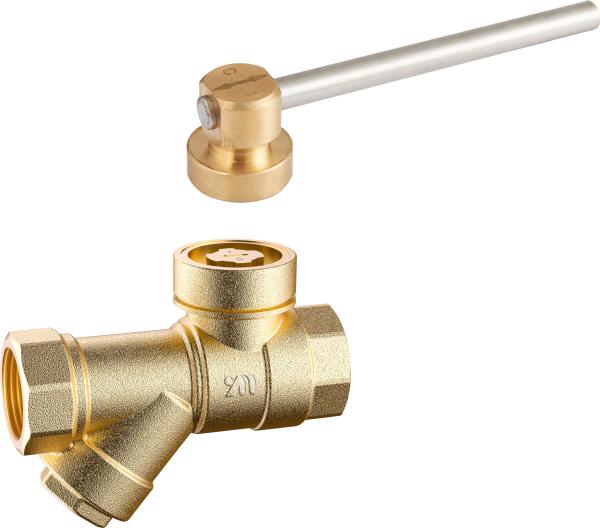

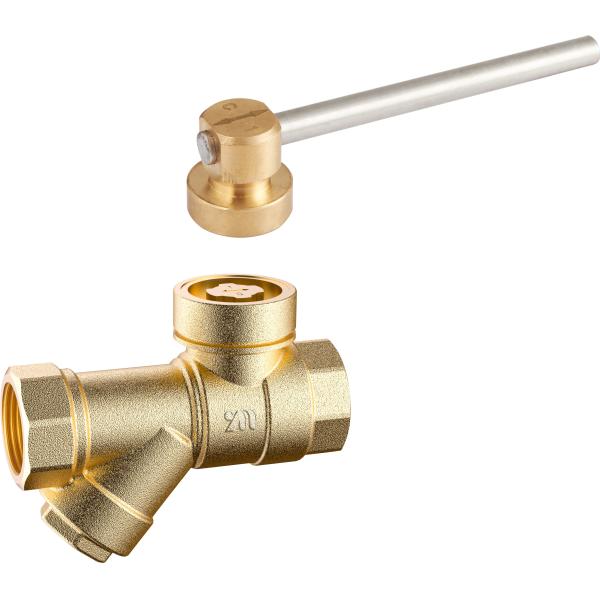

1203 One way Magnetic Lockable Brass Ball Valve with Stainless Steel Strainer and Optional 12-C6 Mech. Code Lock Cover

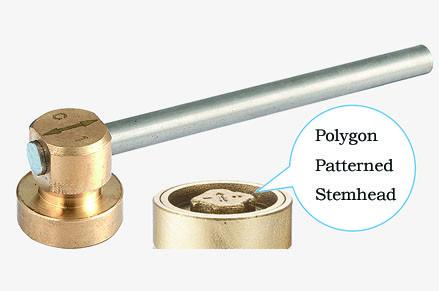

Magnetic Lockable Brass Ball Valve with Polygon Patterned Stemhead & Bottom Stainless Strainer

DN

20

25

32

40

50

Threaded Ends

G3/4" x G3/4"

G1" x G1"

G1-1/4" x G1-1/4"

G1-1/2" x G1-1/2"

G2" x G2"

Optional Accessories:

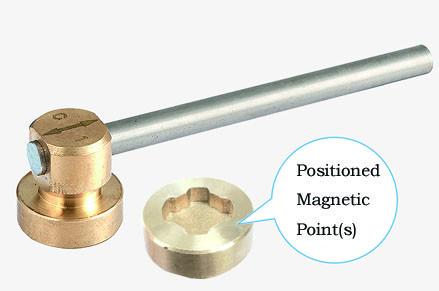

***Long Lever Wrench With Polygon Head matching the Stemhead pattern

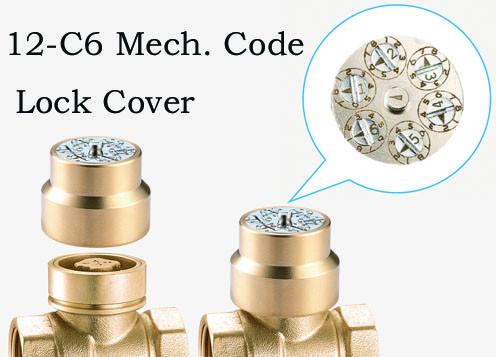

***Mechanical 6-Digits Code Lock Cover Nr.12-C6
