3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
Specifications
Brand Name :
YORO
Model Number :
3603 3609
Certification :
ISO9001, ISO14001, ISO45001Etc.
Place of Origin :
Zhejiang, China
MOQ :
1000PCS per order
Price :
Variable according to quantity, price terms, brass rod cost, and other key factors. Pls inquire with detailed requests.
Payment Terms :
T/T, and payment terms are negotiable
Supply Ability :
100000 pcs per month
Delivery Time :
7 working days from inventory if available. New production may take another 2-3 weeks
Packaging Details :
Poly bag for each product, then several pieces in neutral brown box
Product Name :
Straight Type Nickel Plated Brass Ball Valve with Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
Nominal Pressure :
1.0 MPa Maximum
Product Sizes :
DN20 DN25
Threaded Pipe Connections :
Flexible Male Nipple G1"
Plastic Pipe Connections :
PP-R 25 / 32, AL-PL 16x20 / 20x25
Materials :
Copper Zinc Alloy 57-3 Body/stem/nipples, PTFE Ball Seats, NBR O-rings
Meter Outlet :
M10 X 1 Female Threaded
Strainer :
10 Mesh stainless steel
Optional Drain Valve :
Ball Type With O.D. 15mm Pipe Fitting
Appearance :
Sand shot with nickel plating
Working Temp. :
5℃ To 70℃ (Instant 90℃) for PP-R pipe, or 0℃ To 95℃ for AL-PL pipe
Description

3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve

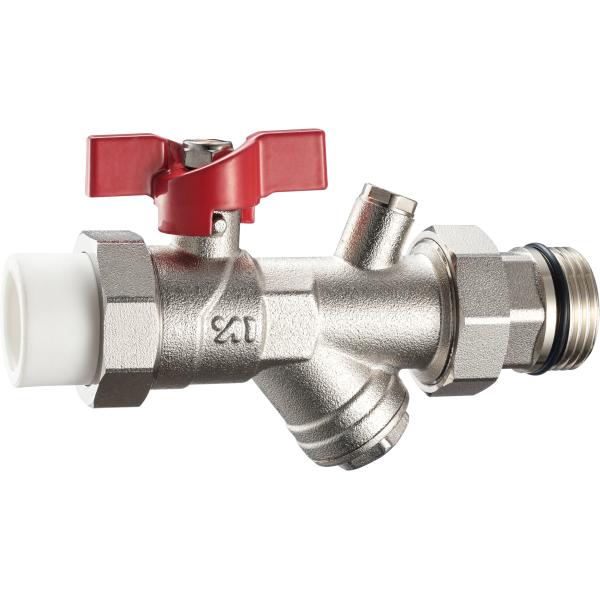

3603 Straight Type Nickel Plated Brass Ball Valve with Meter Outlet & Built-in Strainer

Sizes

DN20

DN25

PP-R Pipe Connection

Φ25

Φ32

Flexible Male Nipple

G1"

G1"

3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve

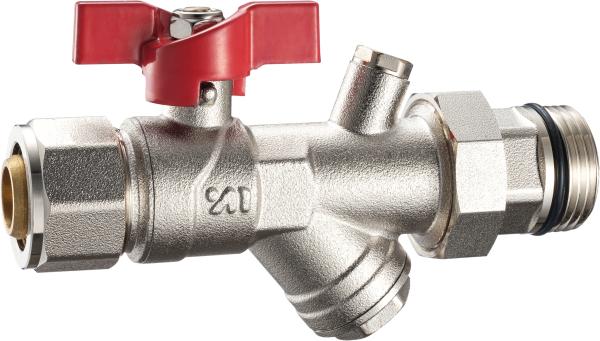

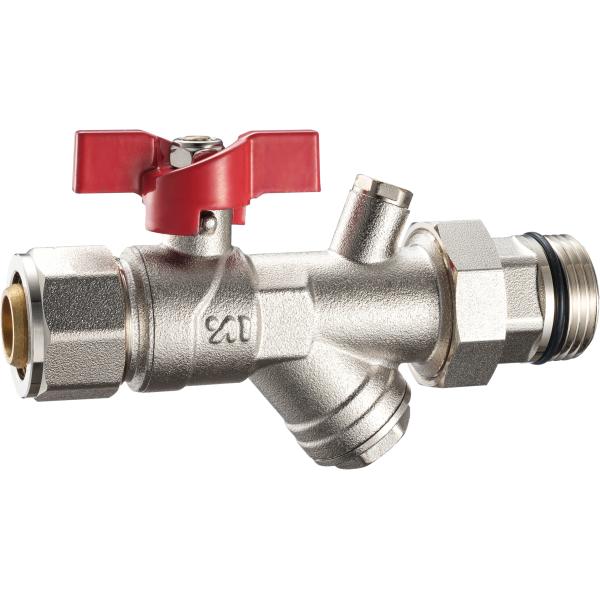

3609 Straight Type Nickel Plated Brass Ball Valve with Meter Outlet & Built-in Strainer

Sizes

DN20

AL-PL Pipe Connection

16 x 20

20 x 25

Flexible Male Nipple

G1"

G1"

3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve

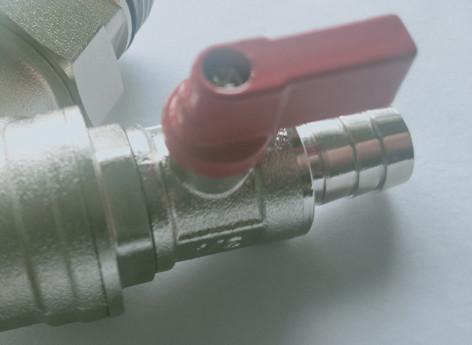

36-F Optional Brass Drain Valve for Built-in Strainer
