1201 Female x Female Shut-off Brass Valve with Chromed Brass Ball Sizes DN20 DN25 DN32 DN40 DN50 Triple Lockable Design
1201 Female x Female Shut-off Brass Valve with Chromed Brass Ball Sizes DN20 DN25 DN32 DN40 DN50 Triple Lockable Design
1201 Female x Female Shut-off Brass Valve with Chromed Brass Ball Sizes DN20 DN25 DN32 DN40 DN50 Triple Lockable Design
1201 Female x Female Shut-off Brass Valve with Chromed Brass Ball Sizes DN20 DN25 DN32 DN40 DN50 Triple Lockable Design
1201 Female x Female Shut-off Brass Valve with Chromed Brass Ball Sizes DN20 DN25 DN32 DN40 DN50 Triple Lockable Design
1201 Female x Female Shut-off Brass Valve with Chromed Brass Ball Sizes DN20 DN25 DN32 DN40 DN50 Triple Lockable Design
1201 Female x Female Shut-off Brass Valve with Chromed Brass Ball Sizes DN20 DN25 DN32 DN40 DN50 Triple Lockable Design
1201 Female x Female Shut-off Brass Valve with Chromed Brass Ball Sizes DN20 DN25 DN32 DN40 DN50 Triple Lockable Design
Specifications
Brand Name :
YORO
Model Number :
1201
Certification :
ISO9001, ISO14001, ISO45001Etc.
Place of Origin :
Zhejiang, China
MOQ :
1000pcs per size for DN20-DN25, 500pcs for bigger sizes
Price :
Factory best prices to be quoted according to order specifications.
Payment Terms :
T/T as per stated in Formal Sales Contracts
Supply Ability :
100000 pcs per month
Delivery Time :
25-30 working days
Packaging Details :
Individual poly bag for each piece, several pieces in a export carton
Name :
Magnetic Lockable Brass Ball Valve with Polygon Patterned Stemhead
Sizes :
DN20 (3/4"), DN25 (1"), DN32 (1-1/4"), DN40 (1-1/2"), DN50(2")
Pipe COnnections :
Female Threaded at Two Ends Per BSPP Style
Color :
Natural Brass Sand-blasted
Main Materials :
Hot Forged Brass 57-3 For Body And Bonnet, Chromed Brass Ball
Workable Media :
Cold / Hot Water
Operation Way :
Quarter Turn to Open and Close
Optional Accessories :

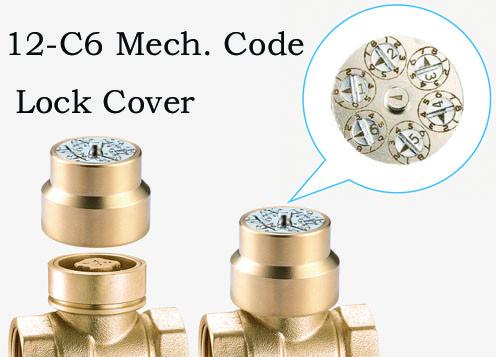

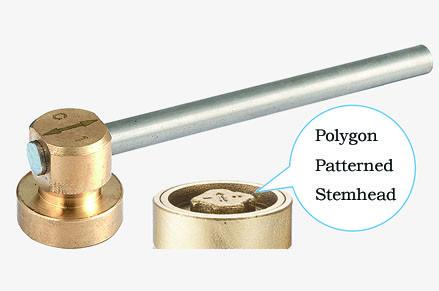

Wrench with Polygon Patterned Head, 12-C6 Mech, Lock Cover
Factory Test :
100% test air pressure 0.6-0.8MPa
Description

1201 Female x Female Shut-off Brass Valve with Chromed Brass Ball Sizes DN20 DN25 DN32 DN40 DN50 Triple Lockable Design

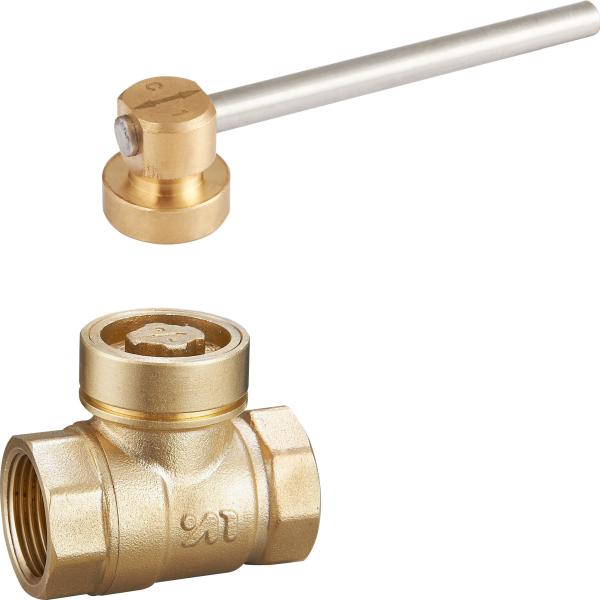

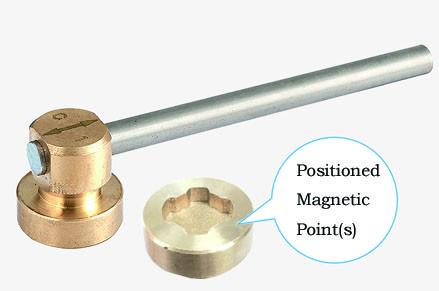

Magnetic Lockable Brass Ball Valve with Polygon Patterned Stemhead

DN

 20 25 32 40 50

Threaded Ends

 F3/4"xF3/4" F1"xF1" F1.1/4"xF1.1/4" F1.1/2"xF1.1/2" F2"xF2"

Application

Ball Valve is a widely adopted model for cutting off, direction-changing and/or distributing the flow in middle-low pressure pipeline, which features fast operation, low pressure lose and easy maintenance. To prolong the service life of a ball valve, it is highly suggested to always keep the ball in fully OPEN or CLOSE position.
