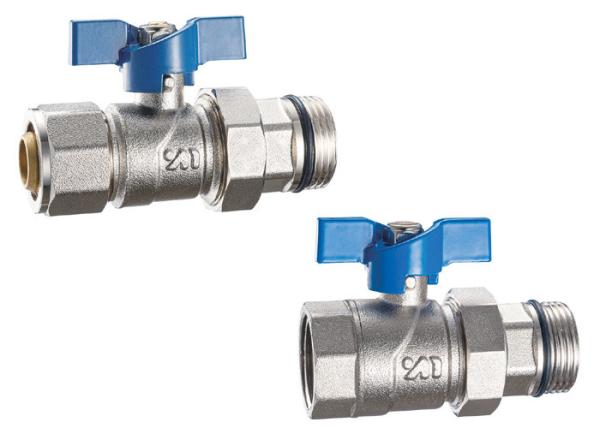

3610 3617 Nickel Plated Straight Type Flexible Male Nipple G1 Brass Ball Valve with Blue Aluminum Butterfly Handle
3610 3617 Nickel Plated Straight Type Flexible Male Nipple G1 Brass Ball Valve with Blue Aluminum Butterfly Handle
3610 3617 Nickel Plated Straight Type Flexible Male Nipple G1 Brass Ball Valve with Blue Aluminum Butterfly Handle
3610 3617 Nickel Plated Straight Type Flexible Male Nipple G1 Brass Ball Valve with Blue Aluminum Butterfly Handle
3610 3617 Nickel Plated Straight Type Flexible Male Nipple G1 Brass Ball Valve with Blue Aluminum Butterfly Handle
3610 3617 Nickel Plated Straight Type Flexible Male Nipple G1 Brass Ball Valve with Blue Aluminum Butterfly Handle
3610 3617 Nickel Plated Straight Type Flexible Male Nipple G1 Brass Ball Valve with Blue Aluminum Butterfly Handle
3610 3617 Nickel Plated Straight Type Flexible Male Nipple G1 Brass Ball Valve with Blue Aluminum Butterfly Handle
Specifications
Brand Name :
YORO
Model Number :
3610 3617
Certification :
ISO9001, ISO14001, ISO45001Etc.
Place of Origin :
Zhejiang, China
MOQ :
1000 Eas
Price :
Direct Factory Export/Wholesale prices
Payment Terms :
T/T as stated in Proforma Invoice
Supply Ability :
100000 pcs per month
Delivery Time :
25-30 working days
Packaging Details :
Cartons packing
Item Name :
Nickel Plated Straight Type Flexible Male Nipple G1" Brass Ball Valve with Blue Aluminum Butterfly Handle
Nominal Size :
DN20
Nominal Pressure :
PN10 (for AL-PL pipe) or PN16 (for Screw Metal Pipe)
Connections :
Flex. Male Nipple G1" End x AL-PL End, Flex. Male Nipple G1" End x Fixed Female Threaded End
Materials :
Brass 57-3 Body/stem/fittings, PTFE Ball Seats, NBR O-rings
Working Temp. of Media :
0℃ To 95℃ (for AL-PL pipe) or -10℃ To 100℃ (for Screw Metal Pipe)
Appearance :
Nickel Plated
Workable Media :
Hot / Cold Water
Test :
100% Factory leakage tested
Description

3610 External Wire Union Ball Valve (Aluminum Plastic Pipe)
Introduction


1. Nominal pressure: 1.6MPa;
2. Working medium: Water, Oil(Non-corrosive), Air(Maximum working pressure 0.6MPa), Gas(Only for indoor pipeline, Maximum working pressure 0.4MPa) ;
3. Working temperature: -20°C to 80 °C;
4. Thread standard: according to ISO228-1;
5. 100% high & low pressure test to guarantee no leakage;
6. Material: Brass body, bonnet, stem; Virgin teflon ball seat; Polished & Chrome plated brass ball.
(Brass designation: HPb58-2.5, C37710, CW617N, CW614N, CW602N etc.)
Parameters

Product Name
3610 External Wire Union Ball Valve (Aluminum Plastic Pipe)
SizeDN20 DN25
Material
Brass
Color
Nickel plating
Standard
ISO9001 Test pressure: ISO5208 Pipe thread: ISO228
Thread
NPT,NPSM,BSPP,BSPT
Connection
PPR Live connection


Application

Use for plumbing, sanitary ware, machine part and so on.

Feature

  1. Small fluid resistance
  2. Compact structure, small size, saving installation space.

Details

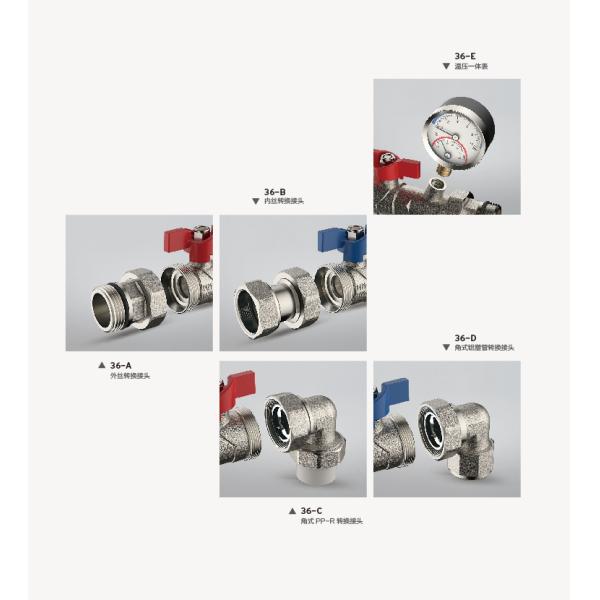

3610 3617 Nickel Plated Straight Type Flexible Male Nipple G1

Advantages

  1. Ageing resistant and long service life.
  2. Saving cost and accelerating the project for the easy installation.
  3. Easy operation.
  4. Big flow rate.
Our Services
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality+Factory Price+Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
