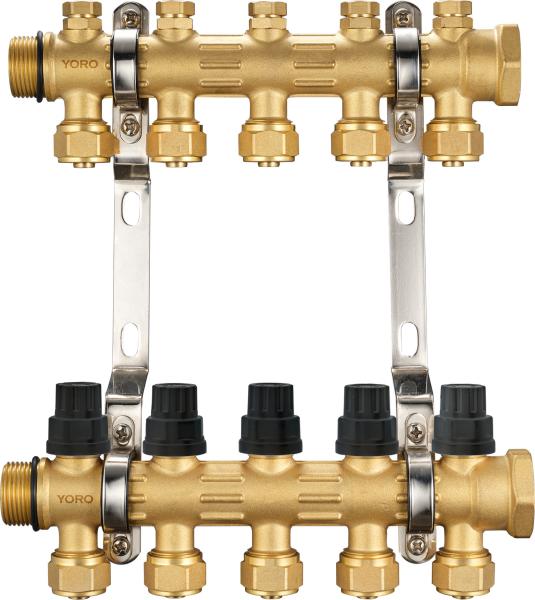

6201 Hot Forged Brass Water Distribution Manifolds up to 8 Branches w/ Concealed Supply Flowrate Tuning Heads & Top Caps
6201 Hot Forged Brass Water Distribution Manifolds up to 8 Branches w/ Concealed Supply Flowrate Tuning Heads & Top Caps
6201 Hot Forged Brass Water Distribution Manifolds up to 8 Branches w/ Concealed Supply Flowrate Tuning Heads & Top Caps
6201 Hot Forged Brass Water Distribution Manifolds up to 8 Branches w/ Concealed Supply Flowrate Tuning Heads & Top Caps
6201 Hot Forged Brass Water Distribution Manifolds up to 8 Branches w/ Concealed Supply Flowrate Tuning Heads & Top Caps
6201 Hot Forged Brass Water Distribution Manifolds up to 8 Branches w/ Concealed Supply Flowrate Tuning Heads & Top Caps
Specifications
Brand Name :
YORO
Model Number :
6201
Certification :
ISO9001, ISO14001, ISO45001Etc.
Place of Origin :
Zhejiang, China
MOQ :
300 pcs
Price :
To be Negotiated
Payment Terms :
T/T
Supply Ability :
10000 pcs per month
Delivery Time :
25-30 working days
Packaging Details :
Individual Foam Packing + inner box
Name :
Hot Forged Brass Water Distribution Manifolds up to 8 Branches w/ Concealed Supply Flowrate Tuning Heads & Top Caps
Maximum working pressure :
0.8 MPa
Applicable Media :
5℃ To 95℃ Water
Materials :
Brass Body/Fittings, EPDM Sealing, Steel Bracket
Main Tube Ends :
G Threads M1" X F1" (Supply), G Threads M1" X F1" (Return)
Branch Pipe Connections :

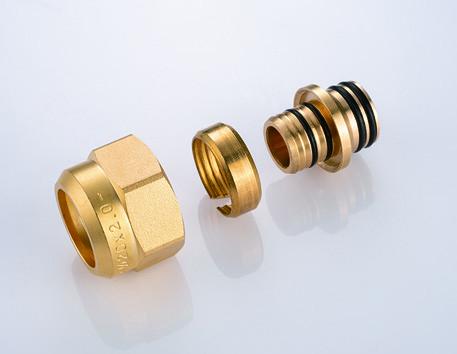

Plastic Pipe Adapter 12*16 or 16*20
Vertical spacing :
220mm
Branch spacing :
50mm
Wall Thickness :
≥2.9 mm
Appearance :
Sand Blasted Brass (Ni. Plated for option)
Description

6201 Hot Forged Brass Water Distribution Manifolds up to 8 Branches w/ Concealed Supply Flowrate Tuning Heads & Top Caps

Hot Forged Brass Water Distribution Manifolds up to 8 Branches w/ Concealed Supply Flowrate Tuning Heads & Top Caps

Branches

2

3

4

5

6

7

8

Total Length(mm)

120

170

220

270

320

370

420
