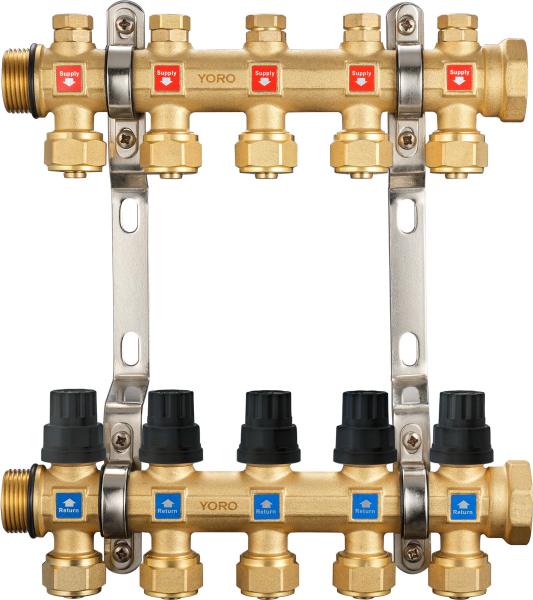

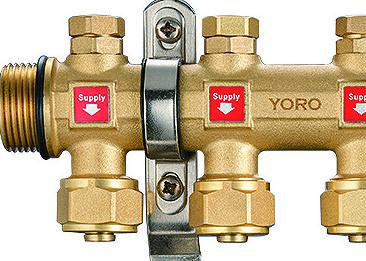

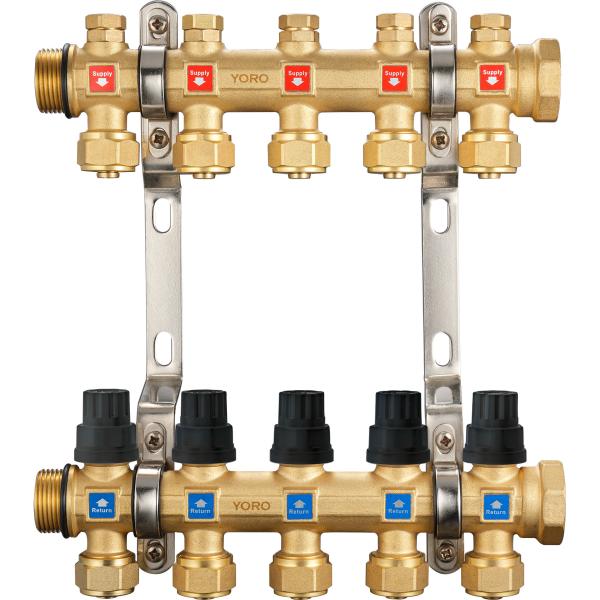

6211 Hot Forged Brass Water Distribution Manifolds 50mm Branch Spacing with Concealed Supply Flowrate Tuners + Seal Caps
6211 Hot Forged Brass Water Distribution Manifolds 50mm Branch Spacing with Concealed Supply Flowrate Tuners + Seal Caps
6211 Hot Forged Brass Water Distribution Manifolds 50mm Branch Spacing with Concealed Supply Flowrate Tuners + Seal Caps
6211 Hot Forged Brass Water Distribution Manifolds 50mm Branch Spacing with Concealed Supply Flowrate Tuners + Seal Caps
6211 Hot Forged Brass Water Distribution Manifolds 50mm Branch Spacing with Concealed Supply Flowrate Tuners + Seal Caps
6211 Hot Forged Brass Water Distribution Manifolds 50mm Branch Spacing with Concealed Supply Flowrate Tuners + Seal Caps
Specifications
Brand Name :
YORO
Model Number :
6211
Certification :
ISO9001, ISO14001, ISO45001Etc.
Place of Origin :
Zhejiang, China
MOQ :
300 sets
Price :
To be Negotiated
Payment Terms :
T/T
Supply Ability :
10000 pcs per month
Delivery Time :
25-30 working days
Packaging Details :
Foam packing + inner box
Name :
Hot Forged Brass Water Distribution Manifolds 50mm Branch Spacing with Concealed Supply Flowrate Tuners + Seal Caps
Working pressure :
0.8 MPa Max.
Workable Media :
Cold and Hot water for heating system
Temperature of Media :
5℃ to 95℃
Body Material :
Easy Cutting Brass
Main Connections :
M1" x F1" (x 2) threaded to BSPP type

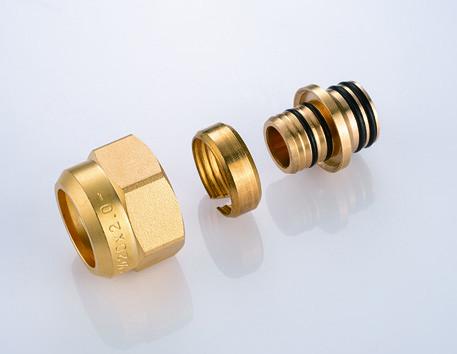

Branch Connections :
Plastic Pipe Adapter 12*16 Or 16*20
Vertical spacing :
220mm
Branch spacing :
50mm (Center to Center)
Wall Thickness :
2.9mm Minimum
Surface Treatment :
Sand shot Brass (Nickel plated for option)
Description

6211 Hot Forged Brass Water Distribution Manifolds 50mm Branch Spacing with Concealed Supply Flowrate Tuners + Seal Caps

Hot Forged Brass Water Distribution Manifolds 50mm Branch Spacing with Concealed Supply Flowrate Tuners + Seal Caps

Branches

2

3

4

5

6

7

8

Total Length(mm)

120

170

220

270

320

370

420
