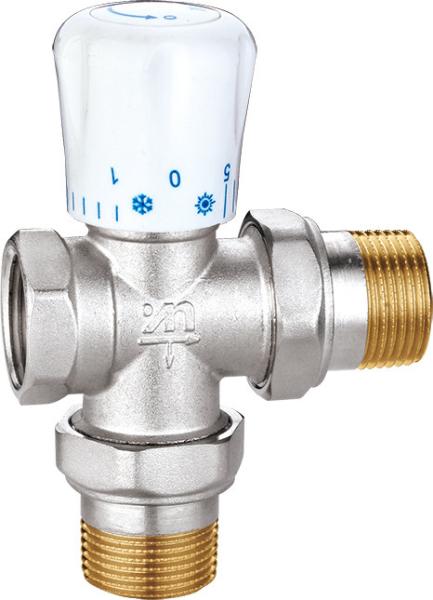

4507 Manually Tuned 3-Way Brass TRV Manifold Valve DN20 DN25 Nickel Plated w/ Female Threads End x Flexible Male Nipples
4507 Manually Tuned 3-Way Brass TRV Manifold Valve DN20 DN25 Nickel Plated w/ Female Threads End x Flexible Male Nipples
4507 Manually Tuned 3-Way Brass TRV Manifold Valve DN20 DN25 Nickel Plated w/ Female Threads End x Flexible Male Nipples
4507 Manually Tuned 3-Way Brass TRV Manifold Valve DN20 DN25 Nickel Plated w/ Female Threads End x Flexible Male Nipples
4507 Manually Tuned 3-Way Brass TRV Manifold Valve DN20 DN25 Nickel Plated w/ Female Threads End x Flexible Male Nipples
4507 Manually Tuned 3-Way Brass TRV Manifold Valve DN20 DN25 Nickel Plated w/ Female Threads End x Flexible Male Nipples
Specifications
Brand Name :
YORO
Model Number :
4507
Certification :
ISO9001, ISO14001, ISO45001Etc.
Place of Origin :
Zhejiang, China
MOQ :
1000pcs
Price :
To be Negotiated
Payment Terms :
T/T
Supply Ability :
100000 pcs per month
Delivery Time :
25-30 working days
Packaging Details :
In cartons
Name :
Manually Tuned 3-Way Brass TRV Manifold Valve Nickel Plated w/ Female Threads End x Flexible Male Nipples
Working Pressure :
1.6 MPa Max. Hydraulic
Size :
DN20 DN25
Connections :
G type threads F3/4" x M3/4" x M3/4", F1" x M1" x M1"
Material :
Hot Forged Copper Zinc Alloy with Ni. Plating
Workable Media :
Hot and Cold Water
Temperature of Media :
-10℃ To 100℃
Test :
100% Leakage Testing
Description

4507 Manually Tuned 3-Way Brass TRV Manifold Valve DN20 DN25 Nickel Plated w/ Female Threads End x Flexible Male Nipples

Manually Tuned 3-Way Brass TRV Manifold Valve Nickel Plated w/ Female Threads End x Flexible Male Nipples

Sizes

DN20

DN25

Female Threaded End

G3/4"

G1"

Flexible Male Nipples

G3/4" Knurled x G3/4" Knurled

G1" Knurled x G1" Knurled
